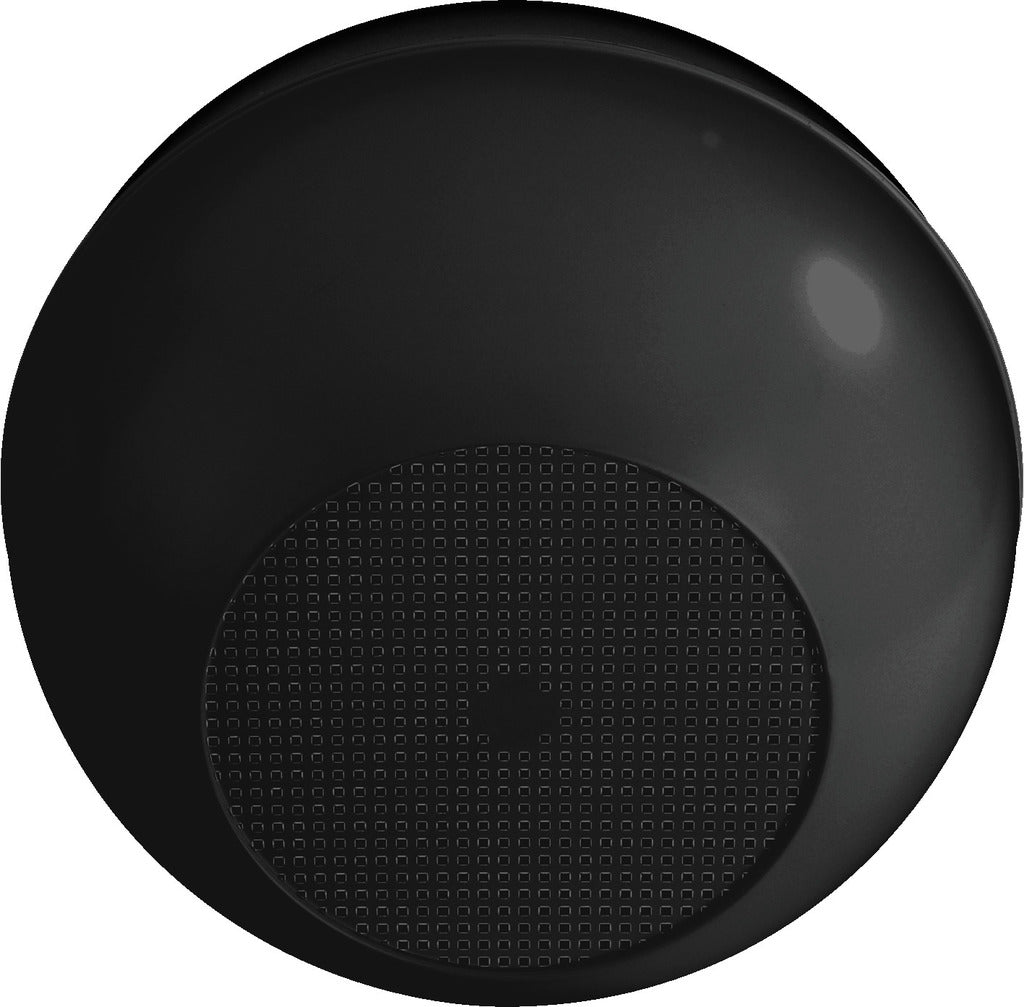

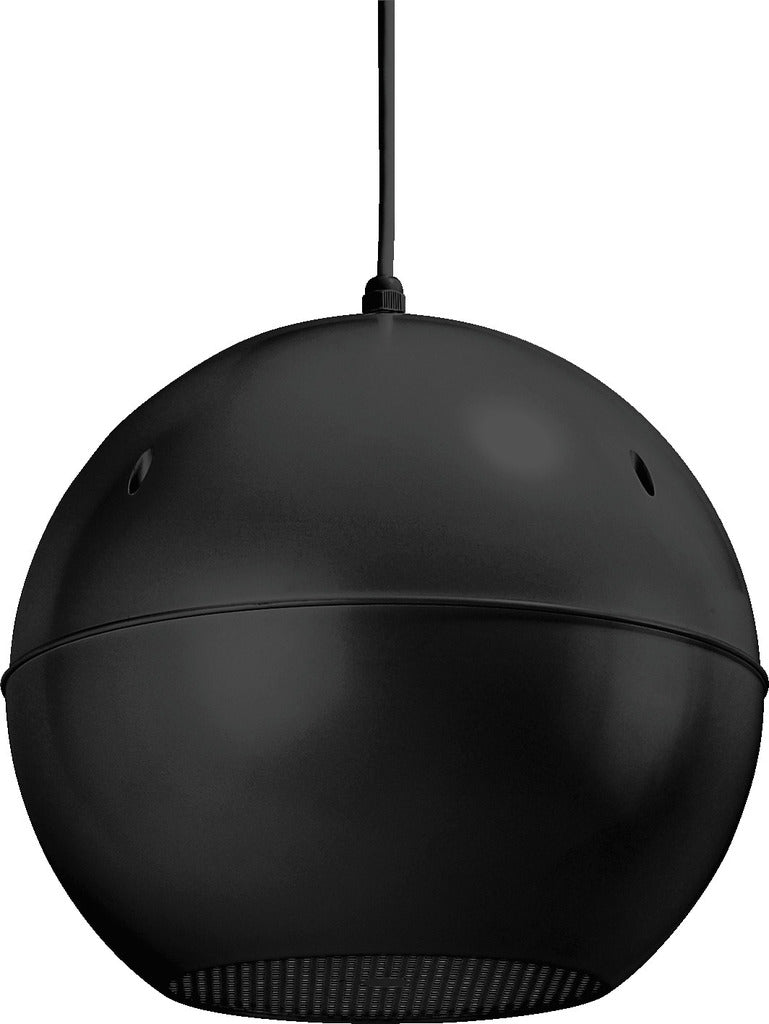

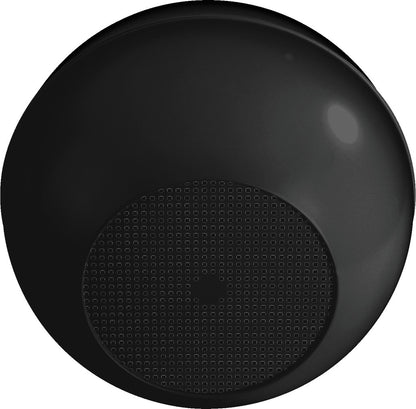

🔊 Monacor EDL-420/SW Weatherproof PA Ball Speaker - Black
The Monacor EDL-420/SW is a robust and flexible PA (Public Address) ball speaker engineered for reliable performance in a variety of challenging environments. Perfect for warehouses, showrooms, retail spaces, cafes, and any area with high or suspended ceilings, this speaker delivers broad, clear sound where you need it most.
Â
Â
Dual Operation: Seamlessly integrates into both 100 V line systems (with power taps for 20W, 10W, and 5W) and low-impedance 8 $\Omega$ setups, offering maximum compatibility and installation flexibility.
Weatherproof Design (IP44): The speaker is built to withstand damp and cold conditions, making it suitable for unheated halls, covered outdoor areas, and other challenging environments.
Safety Certified Housing: Features a black ABS housing that is self-extinguishing and complies with the UL 94V-0 standard, ensuring enhanced fire safety for public installations.

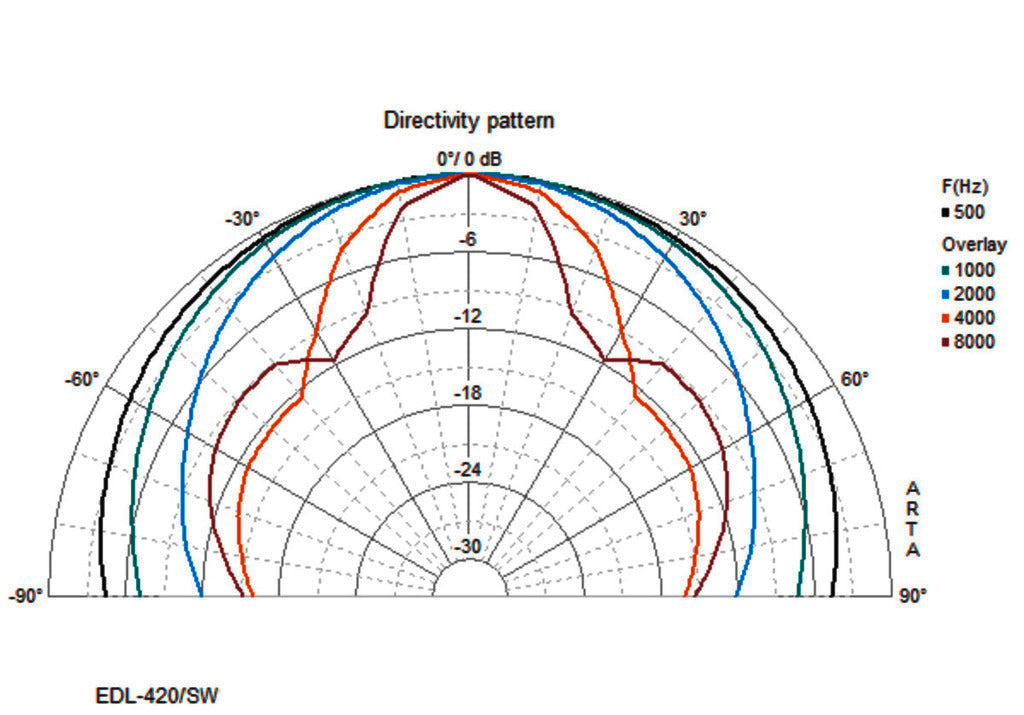

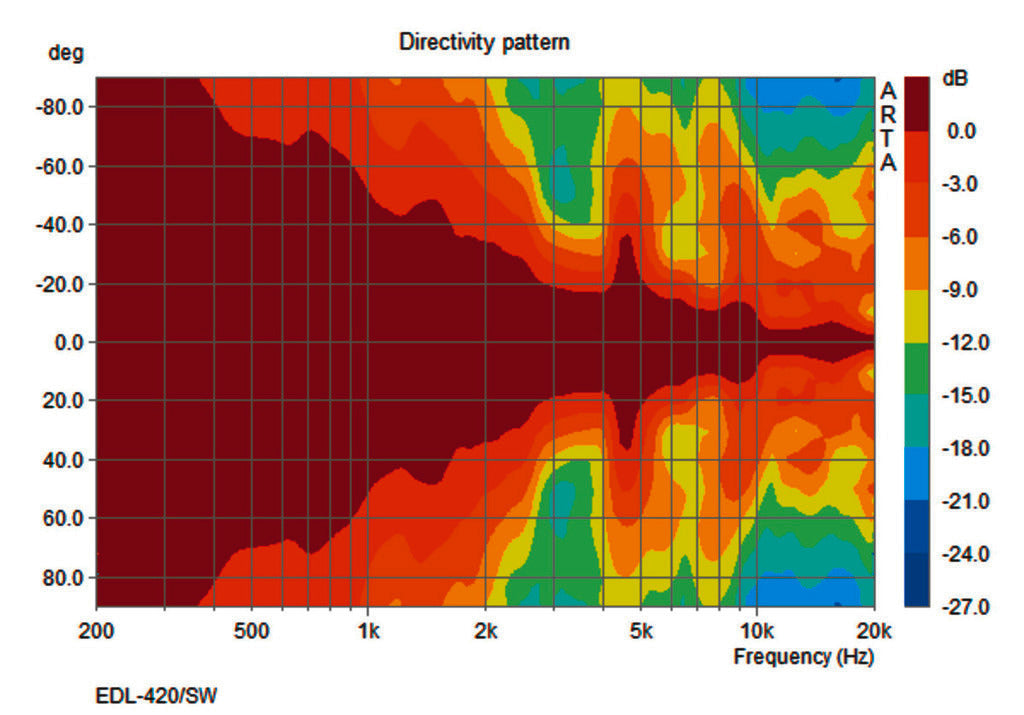

Wide Sound Dispersion: The spherical design and $100^{\circ}$ radiation angle ensure a wide and even distribution of sound, perfect for covering large open areas with uniform background music or announcements.
Easy Installation: Supplied complete with a 480 cm connection cable and a canopy for straightforward and secure ceiling mounting.
| EDL-420/SW | |
|---|---|
| Active/passive | passive |
| Transmission technology | 100 V or low-impedance |
| Total power rating | 20 W |
| Power rating (RMS) | 20/10/5Â W |
| Impedance | 8 Ω |

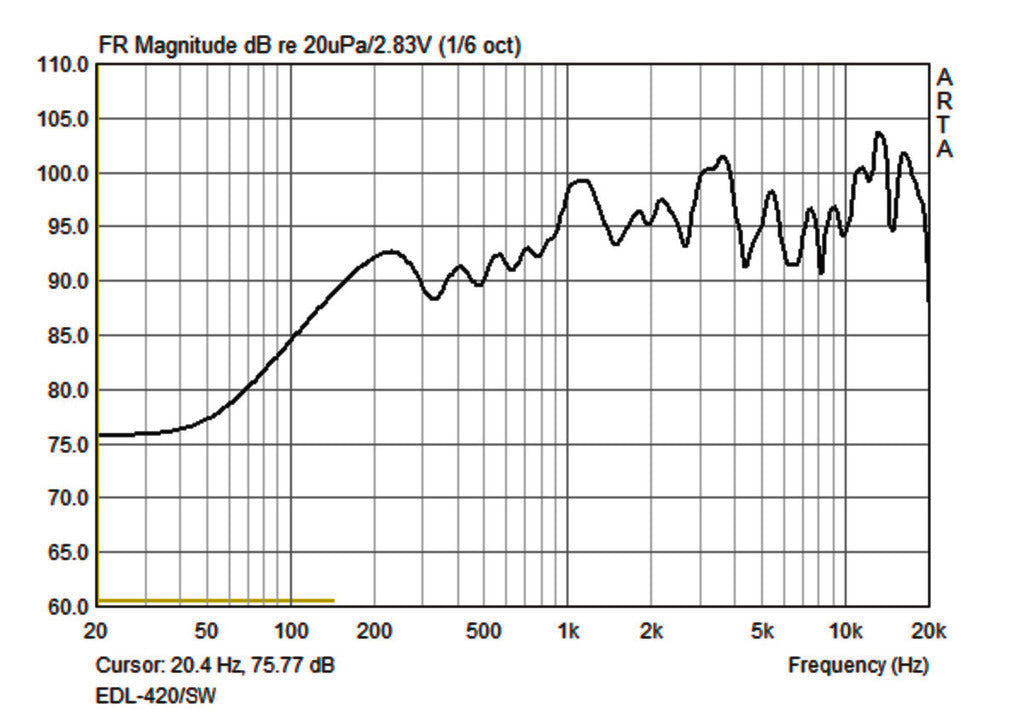

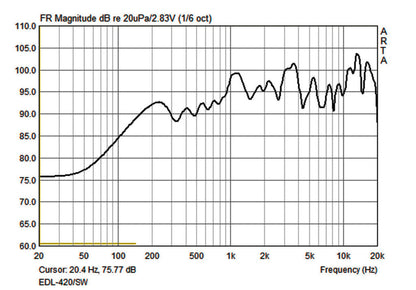

| Frequency range | 120-20,000 Hz |
| Full range speaker | 160 mm (6") |
| Number of speakers | 1 |
| Speaker size | 15 cm (6") |
| SPL | 94 dB/W/m |
| Radiation angle/beam angle | 100° |
| Radiation angle, horizontal | 100° |
| Radiation angle, vertical | 100° |
| Housing material | ABS, UL 94V-0 |
| Colour | black |
| Mounting device | cable with canopy |
| Protection class | IP44 |
| Admiss. ambient temp. | -30 °C to +40 °C |
| Dimensions | Ø 265 mm |
| Width | Ø 265 mm |
| Height | Ø 265 mm |
| Depth | Ø 265 mm |
| Weight | 2.3 kg |
| Inputs | cable connection |
| Packaging dimensions (W x H x L) | 0.305 x 0.285 x 0.38 m |
| Gross weight | 2.84 kg |
| Net weight | 2.34 kg |
