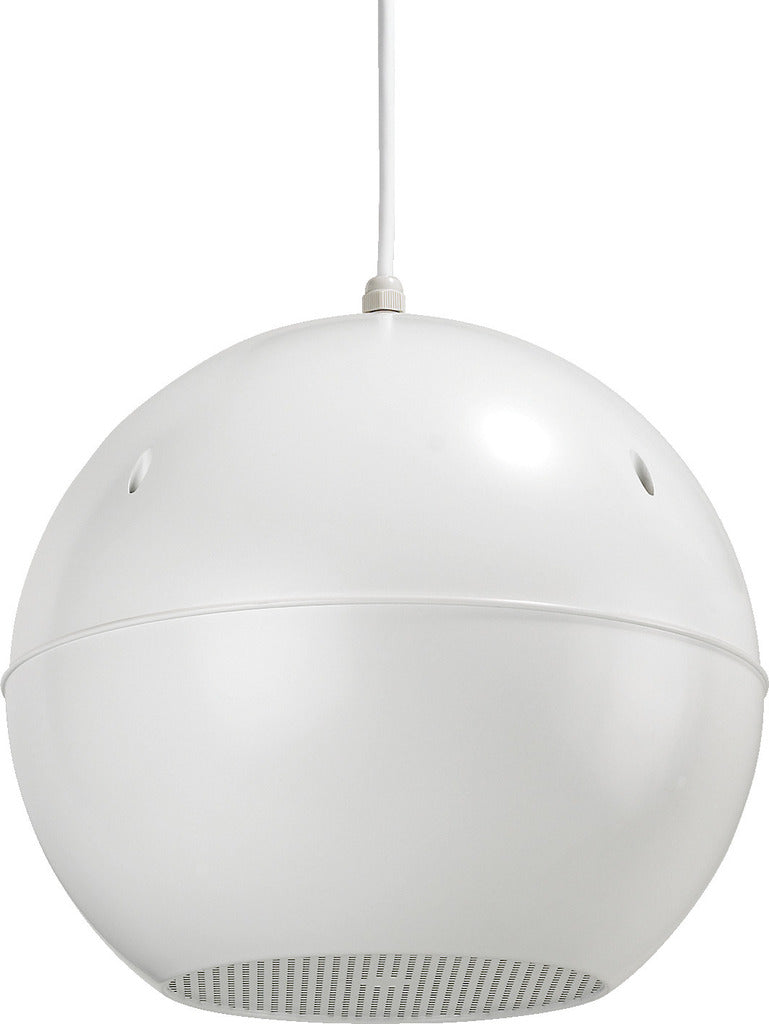

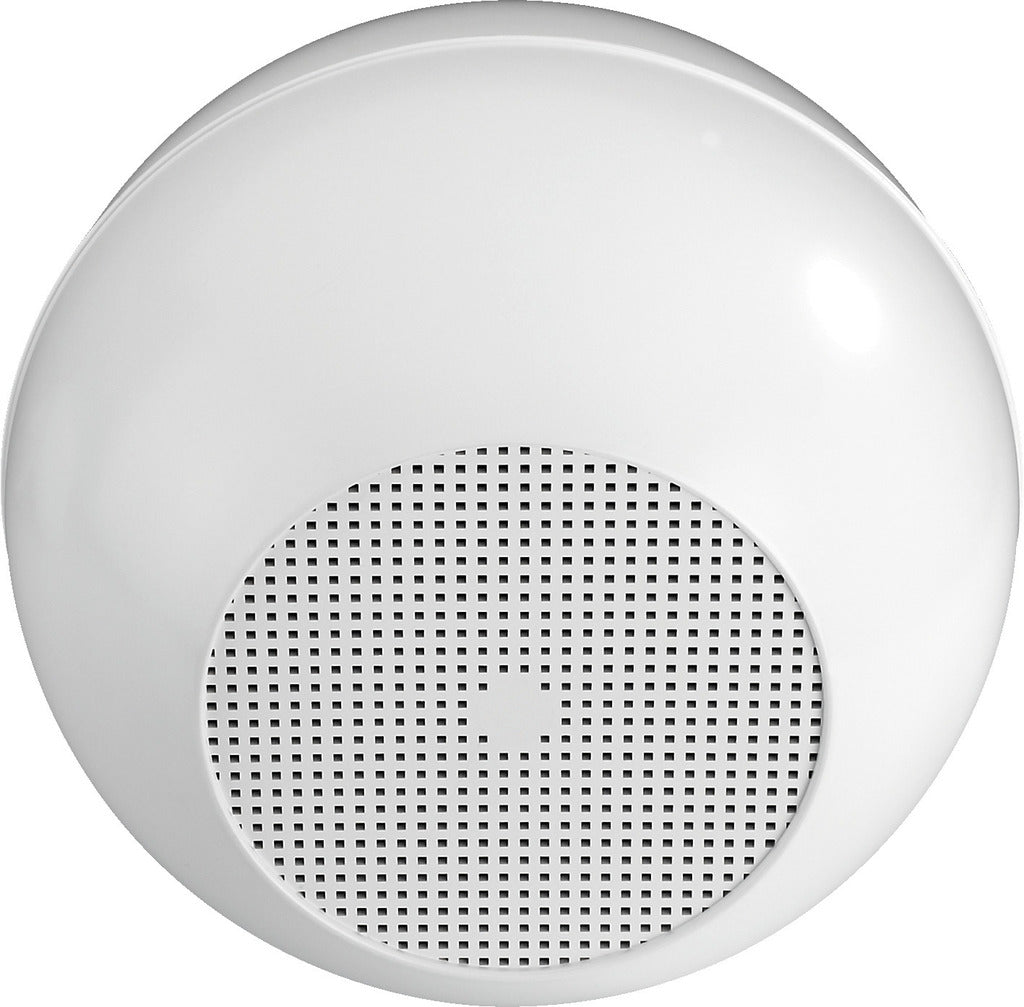

The Monacor EDL-420/WS is a premium, spherical PA speaker designed for outstanding audio performance and durability in demanding environments. Ideal for suspended ceilings in warehouses, showrooms, retail spaces, or even outdoor/damp areas, this speaker provides clear, wide-dispersion sound where you need it most.
Key Features & Benefits:
Dual Operating Modes: Offers ultimate flexibility with switchable 100 V line technology (20W, 10W, 5W power taps) and a low-impedance 8 Ω operation.
Weatherproof Construction: The robust design and IP44 rating make it suitable for areas exposed to moisture, dampness, or fluctuating temperatures $\left(-30^{\circ} \text{C to } +40^{\circ} \text{C}\right)$.
Safety First: Features a self-extinguishing white ABS housing that complies with the UL 94V-0 standard for enhanced fire safety in public and commercial installations.
Wide Sound Coverage: The spherical design and 100 degrees horizontal/vertical beam angle ensure broad and even sound distribution across large spaces.
Easy Installation: Supplied complete with a long 4.8 m connection cable and a matching canopy, simplifying the process of suspension from ceilings.
Quality Audio: Equipped with a 160 mm (6") full-range speaker delivering a frequency range of 120-20,000 Hz with a sensitivity of 94 dB/W/m.
This Monacor ball speaker is the perfect choice for professional installers seeking a reliable, high-quality, and safe solution for background music and public announcements in challenging indoor or sheltered outdoor locations.
| EDL-420/WS | |
|---|---|
| Active/passive | passive |
| Transmission technology | 100 V or low-impedance |
| Total power rating | 20 W |
| Power rating (RMS) | 20/10/5Â W |
| Impedance | 8 Ω |

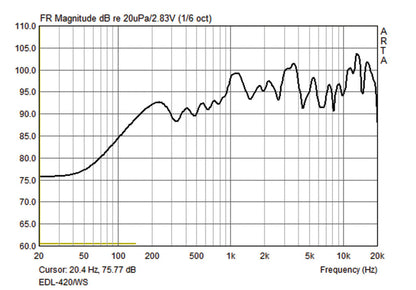

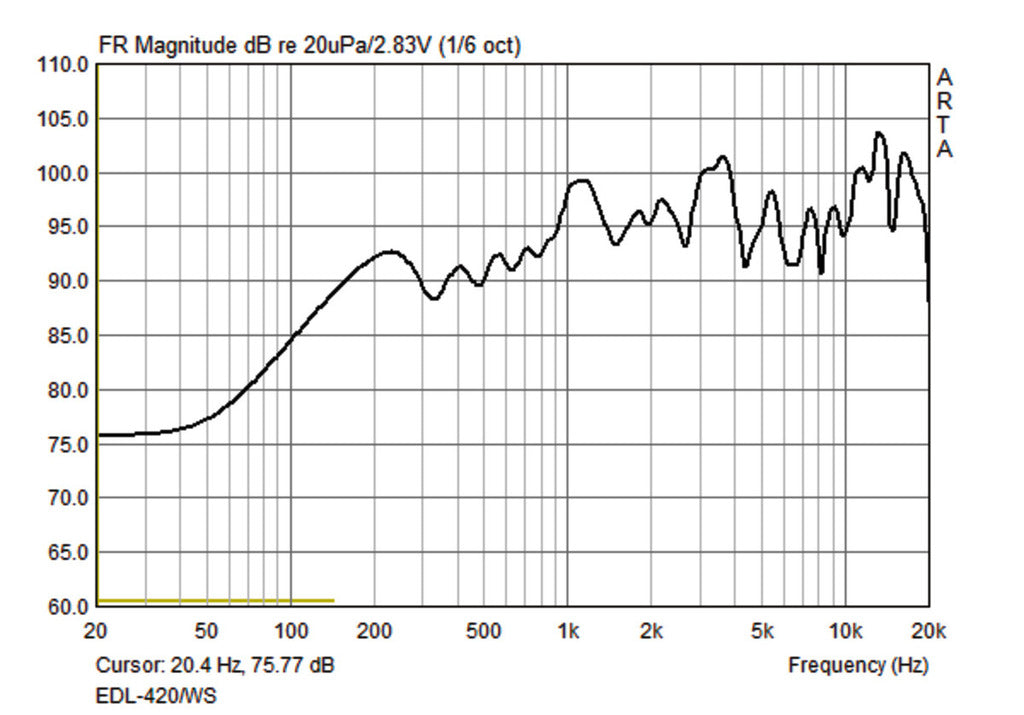

| Frequency range | 120-20,000 Hz |
| Full range speaker | 160 mm (6") |
| Number of speakers | 1 |
| Speaker size | 15 cm (6") |
| SPL | 94 dB/W/m |

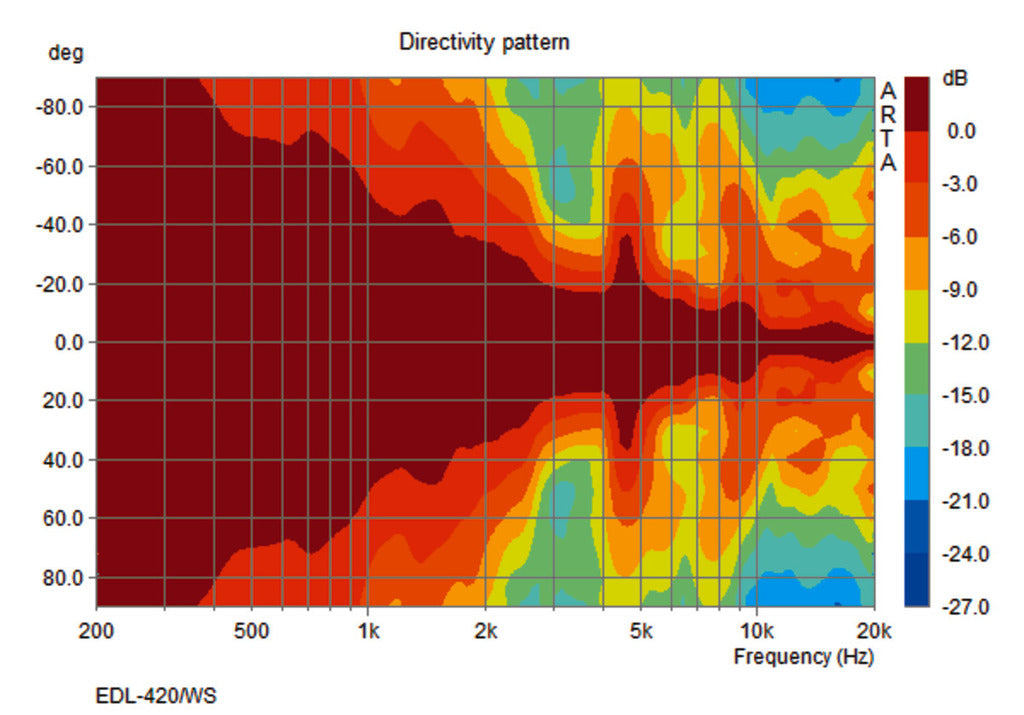

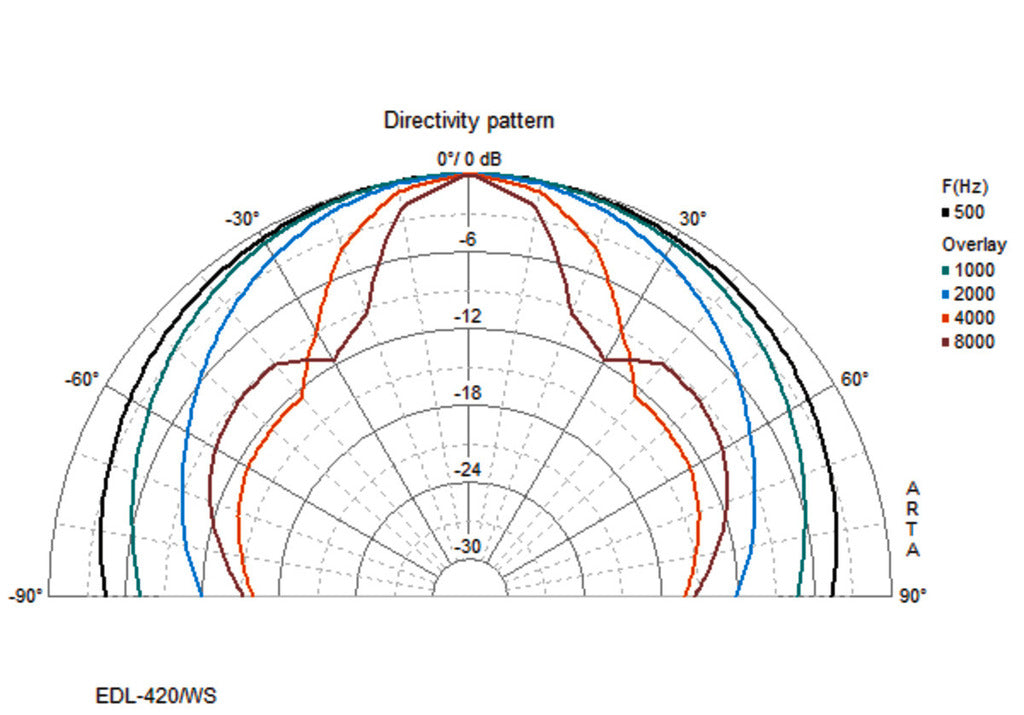

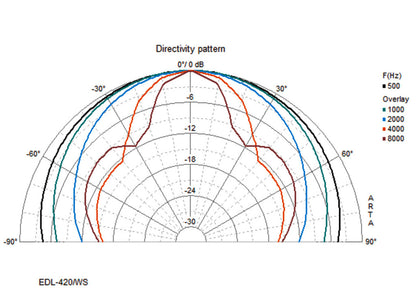

| Radiation angle/beam angle | 100° |
| Radiation angle, horizontal | 100° |
| Radiation angle, vertical | 100° |
| Housing material | ABS, UL 94 V-0 |
| Colour | white |
| Mounting device | cable with canopy |
| Admiss. ambient temp. | -30 °C to +40 °C |
| Dimensions | Ø 265 mm |
| Width | Ø 265 mm |
| Height | Ø 265 mm |
| Depth | 265 mm |
| Weight | 2.3 kg |
| Inputs | cable connection |
| Packaging dimensions (W x H x L) | 0.305 x 0.28 x 0.38 m |
| Gross weight | 2.84 kg |
| Net weight | 2.34 kg |
