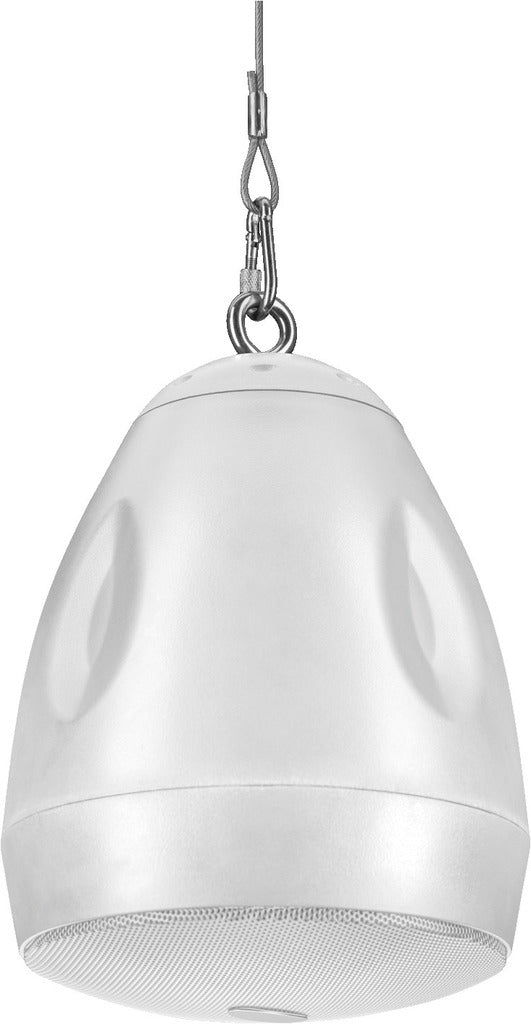

MONACOR EDL-530EN/WS: EN 54-24 Certified High-Quality PA Pendant Speaker

The MONACOR EDL-530EN/WS is a high-quality PA pendant speaker designed for professional sound systems where both superb audio performance and certified safety are required. This speaker is specifically certified according to the EN 54-24 standard, making it compliant for use in emergency sound and voice evacuation systems.

Its sophisticated 2-way coaxial design ensures excellent sound quality for both clear speech announcements and background music in high-ceiling environments like supermarkets, warehouses, and atriums.

Key Features

• EN 54-24 Certified: Approved for use in voice alarm and emergency sound systems, providing guaranteed compliance and reliability.

• Dual Transmission Technology: Supports both 100 V line transmission technology (with multiple power taps) and standard 8 Ω low-impedance operation, offering maximum flexibility for system integration.

• 2-Way Coaxial System: Features a 5.25" (13.33 cm) bass speaker and a 1" (25 mm) tweeter in a coaxial arrangement, delivering a wide frequency range and clear audio (65–20,000 Hz).

• Durable Design: Constructed with a UV-resistant ABS housing and a robust aluminium grille in a clean white finish.

• High Safety: Includes a 5-meter safety rope with a snap hook, in addition to the eyelet bolt for mounting, ensuring secure installation.

• Easy Connection: Utilizes a plug-in screw terminal for quick and secure wiring.

• Wide Dispersion: Features a 120° radiation angle (horizontal and vertical), ensuring consistent sound coverage across large areas.

Technical Specifications (Summary)
