The Monacor EDL-606 is a robust and reliable 100 V PA ceiling speaker, perfectly engineered for background music and paging in commercial environments. Combining clear, full-range audio reproduction with a durable, low-profile design, this speaker is an ideal choice for offices, retail stores, restaurants, and public areas.
Â
Â
100 V Line Technology: Utilizes high-performance audio transformer technology for simple, reliable installation in large PA systems.
Selectable Power Taps: Features three power taps for flexible system design: 6 W, 3 W, and 1.5 W (RMS), allowing you to easily adjust volume levels per zone.
Full-Range Audio: Equipped with a type 165 full-range speaker that ensures clear voice and music reproduction, including a more powerful delivery of fundamental notes.
Robust Construction: Built to last with a robust metal basket and protective grille (white color) for enhanced durability and safety.

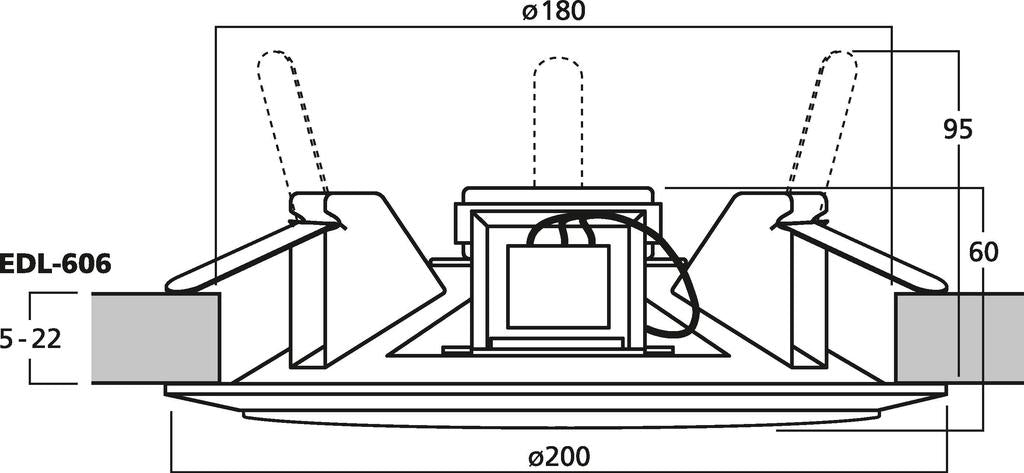

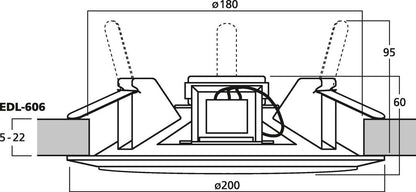

Easy Flush-Mount Installation: Designed for quick and secure flush mounting in ceilings with a thickness from 5 mm to 22 mm.
| EDL-606 | |
|---|---|
| Transmission technology | 100 V |
| Frequency range | 100-20,000 Hz |
| Power rating (RMS) | 6/3/1.5 W |
| SPL | 92 dB/W/m |
| Mounting cutout | Ø 180 mm |
| Mounting depth | 50 mm |
| Dimensions | Ø 200 mm x 60 mm |
| Outside diameter | Ø 200 mm |
| Width | Ø 200 mm |
| Height | Ø 200 mm |
| Depth | 60 mm |
| Colour | white |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 698 g |
| Packing unit | 1 |
| Type of speaker | 165 |
| Packaging dimensions (W x H x L) | 0.24 x 0.1 x 0.25 m |
| Gross weight | 0.946 kg |
| Net weight | 0.698 kg |
