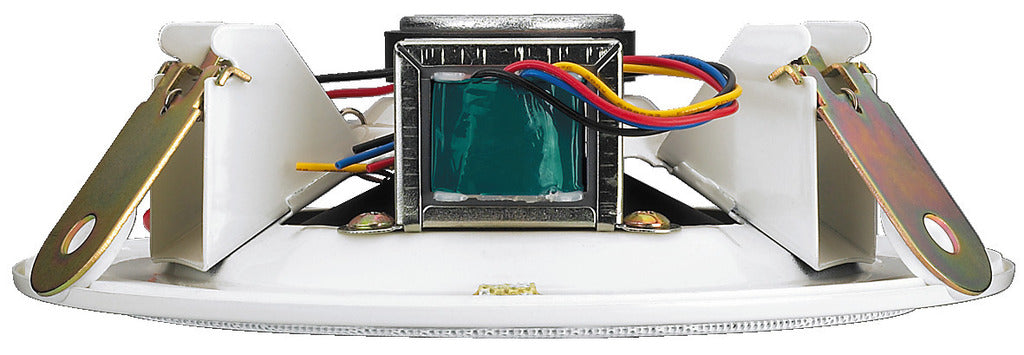

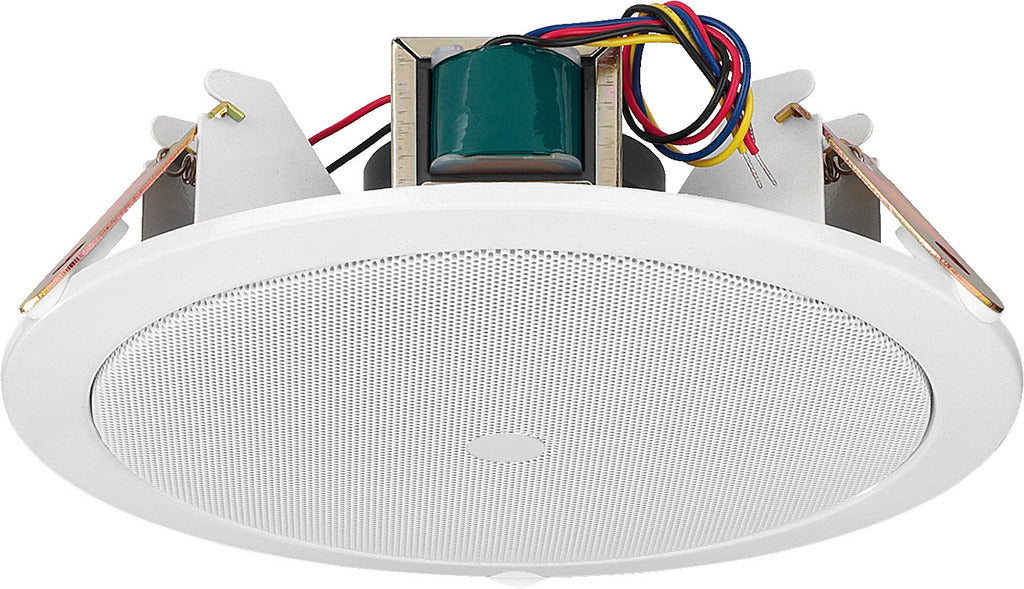

The Monacor EDL-612 is a robust and discreet flush-mount ceiling speaker, expertly engineered for high-quality background music and clear voice announcements in commercial and public address (PA) applications.
Designed for 100 V line systems, this full-range speaker delivers reliable performance across a wide range of venues, from restaurants and offices to retail spaces and waiting rooms.
Â
Â
100 V Line Technology: Integrated audio transformer with three selectable power taps (12 W, 6 W, 3 W) for easy power adjustment and installation flexibility in large PA setups.
Full-Range Audio: The type 165/180 full-range speaker is tuned for excellent speech clarity and a powerful reproduction of fundamental notes, covering a frequency range of 100–20,000 Hz.
Robust Construction: Features a heavy-duty, durable metal basket and protective grille for stable mounting and long-term reliability.

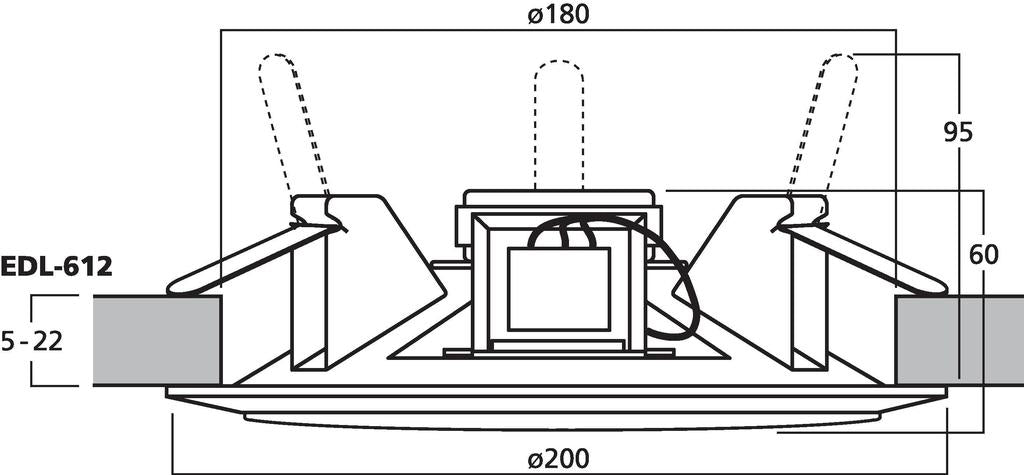

Flush-Mount Design: With a slim mounting depth of just 50–60 mm and a clean white finish, the speaker blends seamlessly into any ceiling, maintaining a low visual profile.
Easy Installation: Designed for a mounting cutout of 180 mm and compatible with ceiling thicknesses from 5 to 22 mm.
| EDL-612 | |
|---|---|
| Transmission technology | 100 V |
| Frequency range | 100-20,000 Hz |
| Power rating (RMS) | 12/6/3 W |
| SPL | 92 dB/W/m |
| Mounting cutout | Ø 180 mm |
| Mounting depth | 50 mm |
| Dimensions | Ø 200 mm x 60 mm |
| Outside diameter | Ø 200 mm |
| Width | Ø 200 mm |
| Height | Ø 200 mm |
| Depth | 60 mm |
| Colour | white |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 750 g |
| Packing unit | 1 |
| Type of speaker | 165 |
| Packaging dimensions (W x H x L) | 0.24 x 0.1 x 0.25 m |
| Gross weight | 1.01 kg |
| Net weight | 0.753 kg |
