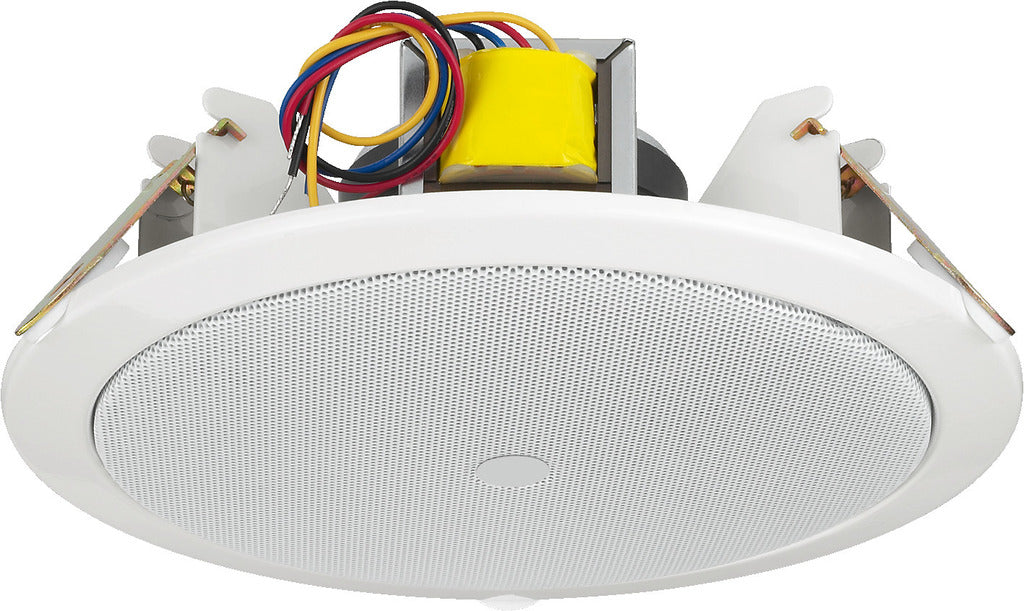

The Monacor EDL-620 is a high-performance, flush-mount PA ceiling speaker designed for professional 100 V audio distribution systems. It is the ideal choice for delivering clear speech and high-quality background music in commercial environments like offices, restaurants, retail spaces, and hotels.
Â
Â

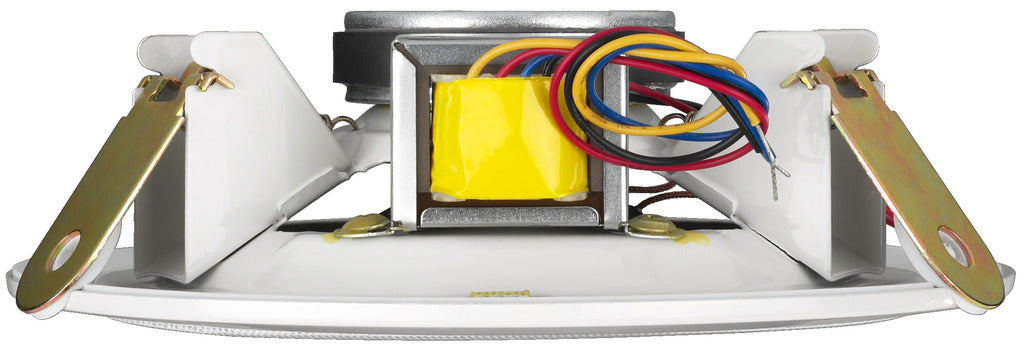

100 V Line Technology: Utilizes an integrated audio transformer for efficient, long-distance signal transmission with multiple power taps, simplifying large-scale installations.
Flexible Power Taps: Easily adjust the output power to suit the specific zone's requirements with multiple RMS taps: 20 W, 10 W, and 5 W.

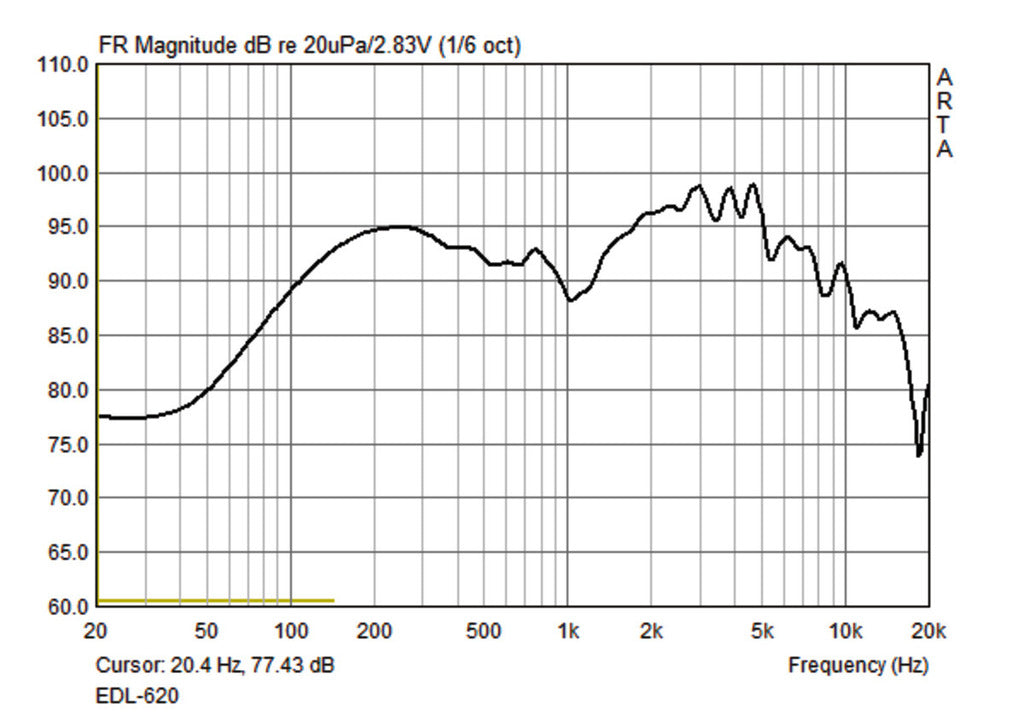

Full-Range Clarity: Equipped with a Type 165 (6.5") full-range speaker to ensure clear, intelligible sound reproduction across a wide frequency range of 100-20,000 Hz.
Robust Construction: Features a durable metal basket and protective grille for long-term reliability in commercial settings.
Discreet Flush Mounting: Designed for a neat, unobtrusive installation with a low mounting depth, blending seamlessly into your ceiling.
| EDL-620 | |
|---|---|
| Transmission technology | 100 V |
| Frequency range | 100-20,000 Hz |
| Power rating (RMS) | 20/10/5Â W |
| SPL | 93 dB/W/m |
| Mounting cutout | Ø 180 mm |
| Mounting depth | 50 mm |
| Dimensions | Ø 200 mm x 65 mm |
| Outside diameter | Ø 200 mm |
| Width | Ø 200 mm |
| Height | Ø 200 mm |
| Depth | 65 mm |
| Colour | white |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 900 g |
| Packing unit | 1 |
| Type of speaker | 165 |
| Packaging dimensions (W x H x L) | 0.24 x 0.1 x 0.245 m |
| Gross weight | 1.156 kg |
| Net weight | 0.915 kg |
