Movable PA ceiling speaker * 100 V transmission technology * High power rating with 30 W max. * High-quality 2-w
Â

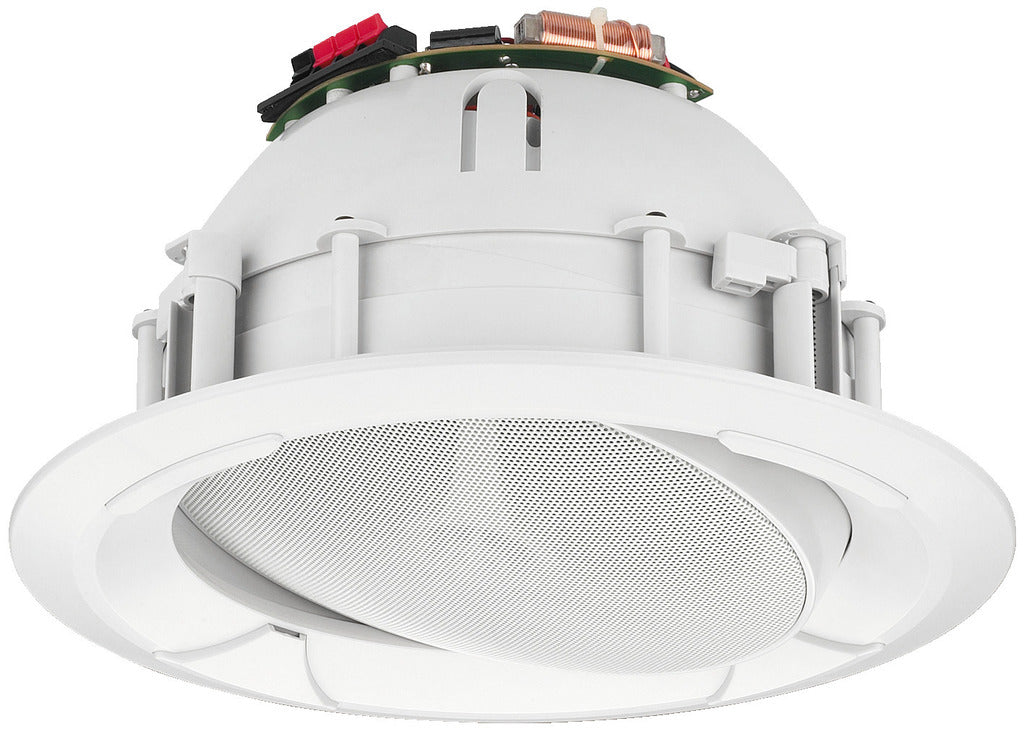

Experience superior sound distribution and flexible installation with the Monacor EDL-65TW pivoting PA ceiling speaker. Designed for professional Public Address (PA) systems utilizing 100 V transmission technology, this speaker delivers high-quality audio perfect for shops, cafes, offices, and more.
Â
Â
High-Quality 2-Way Coaxial System: Features a premium 2-way coaxial speaker with a built-in crossover network to ensure a well-balanced and clear audio spectrum across the entire frequency range (50-20,000 Hz).
Pivoting Speaker Unit: The complete speaker part can be easily swivelled, allowing you to optimise the sound radiation pattern indoors and direct the audio precisely where it's needed for excellent acoustic room illumination.
High Power Rating: Capable of handling a high power rating with a maximum of 30 W, with multiple power taps (30 W / 15 W / 7.5 W) for flexible system configuration.
Safe & Durable Design: The sophisticated plastic housing with a protective metal grille is constructed from ABS material that is self-extinguishing according to the UL 94V-0 standard, ensuring a high level of safety for commercial applications.

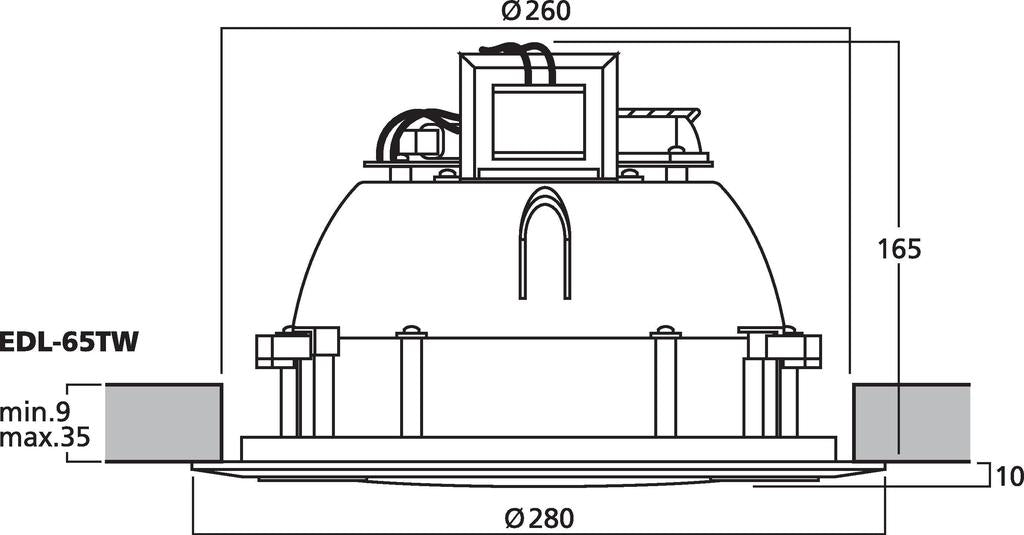

Easy Installation: Designed for suspended ceilings with a thickness from 9 to 35 mm, featuring a mounting cutout of 260 mm and a mounting depth of 165 mm.
The EDL-65TW is the ideal choice for installers seeking a versatile, high-performance ceiling speaker that blends unobtrusively into any modern commercial environment while providing excellent background music and clear announcements.
ay coaxial speaker system with 2-way crossover network * Complete speaker part can be moved for optimising the sound radiation pattern indoors * Plastic housing of superior design with metal grille * Plastic material of ABS and self-extinguishing according to UL 94V-0 * For a ceiling thickness from 9 to 35 mm
| EDL-65TW | |
|---|---|
| Transmission technology | 100 V |
| Frequency range | 50-20,000 Hz |
| Power rating (RMS) | 30/15/7.5Â W |
| SPL | 91 dB/W/m |
| Mounting cutout | Ø 260 mm |
| Mounting depth | 165 mm |
| Dimensions | Ø 280 mm x 175 mm |
| Outside diameter | Ø 280 mm |
| Width | Ø 280 mm |
| Height | Ø 280 mm |
| Depth | 175 mm |
| Colour | white |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 2.38 kg |
| Packing unit | 1 |
| Type of speaker | 180 |
| Packaging dimensions (W x H x L) | 0.33 x 0.22 x 0.33 m |
| Gross weight | 3.12 kg |
| Net weight | 2.38 kg |
