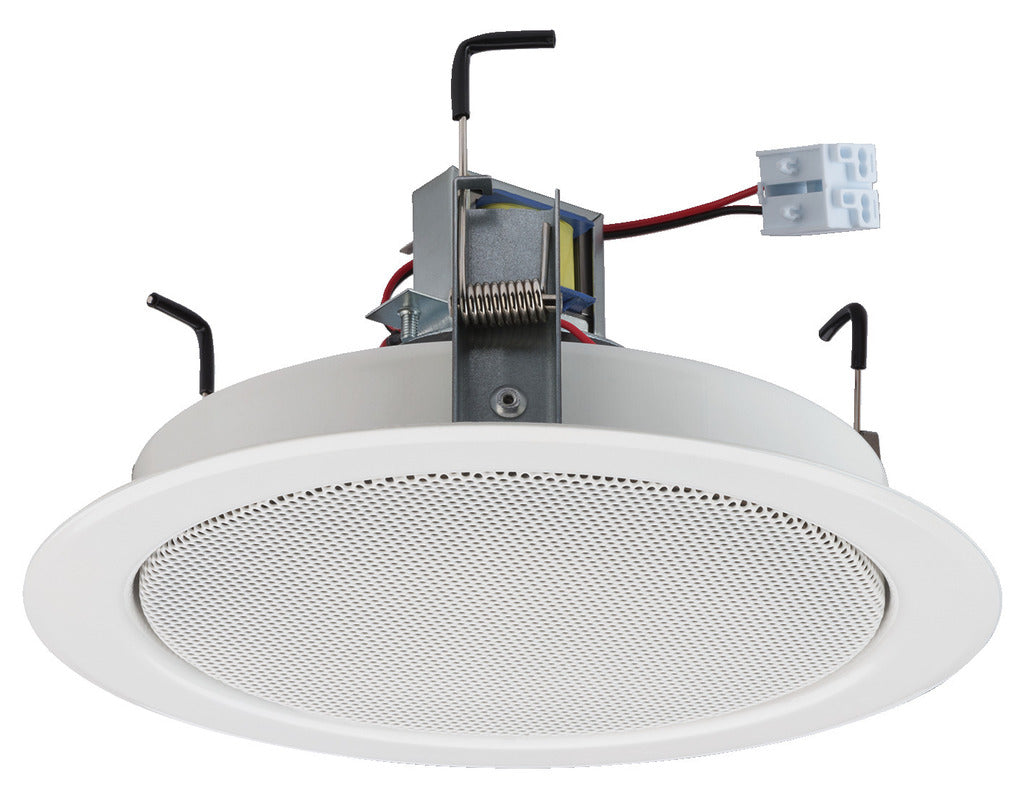

MONACOR EDL-70/WS: 100 V PA Ceiling Speaker
The MONACOR EDL-70/WS is a high-performance PA ceiling speaker engineered for 100 V public address systems, offering exceptional clarity and wide-range audio in a robust, easy-to-install design. It is ideal for installations where both clear voice announcements and background music are required.
Key Features:
100 V Transmission Technology: Designed specifically for large-scale PA systems using 100 V line technology.
Full Range Performance: Features a full-range speaker that ensures a wide frequency range (90–20,000 Hz) and clear voice reproduction.
Robust Construction: Built with a durable metal version (basket and protective grille) for long-lasting reliability.

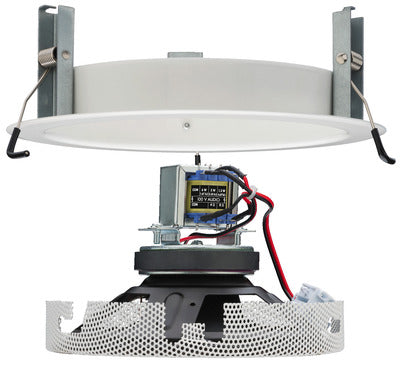

Special 2-Step Mounting: Installation is fast and secure via a special 2-step mounting process:
The mounting frame attaches to the ceiling cutout using a snap-in system.
The speaker unit then inserts into the frame with a bayonet-type locking mechanism.
A safety rope provides additional security.
Versatile Ceiling Thickness: Suitable for a ceiling thickness ranging from 2 mm to 45 mm.
Selectable Power Taps: Offers multiple power ratings for flexible system planning (6 W, 3 W, and 1.5 W).
Technical Specifications:
| Feature | Specification |
| Transmission Technology | 100 V |
| Speaker Type | Full-range, 165 mm |
| Power Rating (RMS) | 6 / 3 / 1.5 W (selectable taps) |
| SPL (1W/1m) | 97 dB |
| Frequency Range | 90–20,000 Hz |

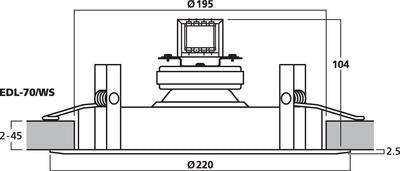

| Mounting Cutout | Ø 195 mm |
| Mounting Depth | 100 mm |
| Outer Diameter | Ø 220 mm |
| Depth | 104 mm |
| Colour | White (RAL9010) |
| Weight | 1 kg |
