Experience superior sound quality and seamless integration with the Monacor EDL-82HQ, an exceptional 8" wall and ceiling speaker engineered for demanding professional audio (PA) and high-fidelity (Hi-Fi) applications.
Designed for maximum versatility, the EDL-82HQ is the ideal solution for premium background music in bars, restaurants, retail spaces, offices, and residential installations where both aesthetics and performance are paramount.
Â
Â
Dual Operation Mode: Versatile connection options with switchable 100 V line technique (30/16/8/4 W power taps) or 8 Ω low-impedance operation (50 W RMS / 100 W MAX).
True 2-Way Coaxial System: Delivers a clear, full-range sound with a wide frequency response of 30-20,000 Hz.
8" (20 cm) Bass Speaker: Features a waveguide for enhanced efficiency and deeper bass response.
1" (25 mm) Silk Dome Tweeter: Offers smooth, detailed high frequencies.
Adjustable Sound: The tweeter is pivoting via a ball joint, allowing you to direct the high frequencies precisely where needed for optimal sound imaging.

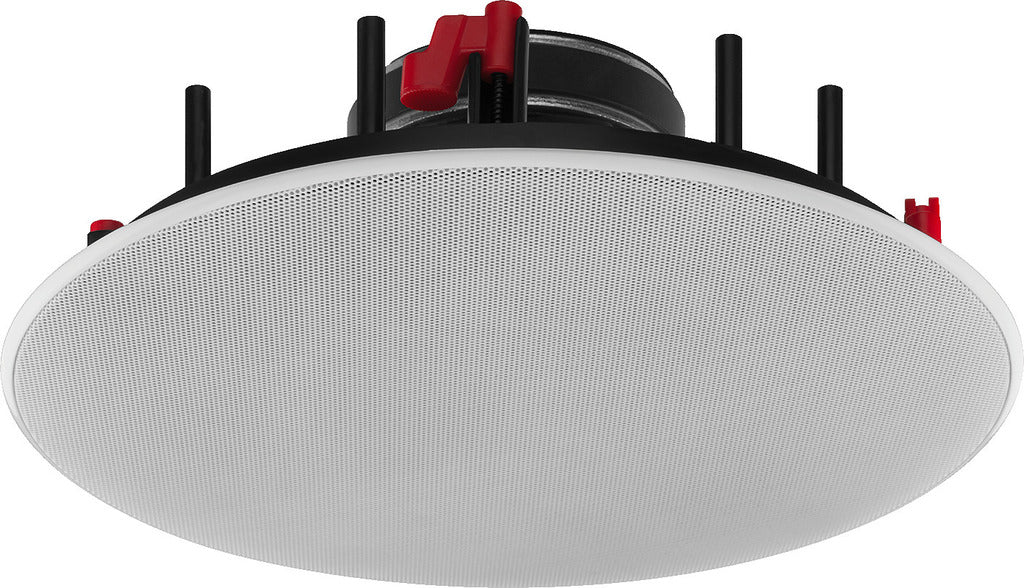

Sleek, Discreet Design: Features a stylish, flush-fit protective metal grille with a slim frame. The grille is magnetically attached for quick, tool-free installation and removal.
Easy Installation: Designed for a secure, flush mounting in wall or ceiling thicknesses from 6 to 35 mm.
| EDL-82HQ | |
|---|---|
| Impedance (Z) | 8 Ω |
| Transmission technology | 100 V or low-impedance |

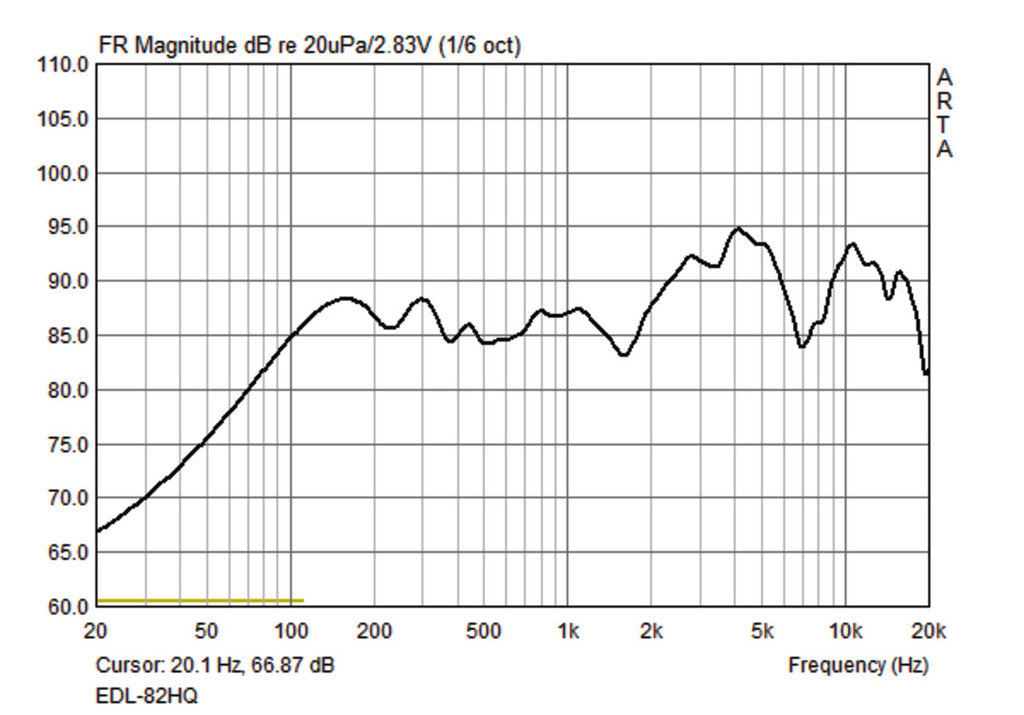

| Frequency range | 30-20,000 Hz |
| Resonant frequency (fs) | 40 Hz |
| Power rating (RMS) | 50 W (8 Ω)
30/16/8/4Â W (100 V) |
| Peak music power output (MAX) | 100 W |
| SPL | 89 dB/W/m |

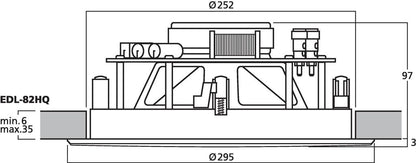

| Mounting cutout | Ø 252 mm |
| Mounting depth | 99 mm |
| Dimensions | Ø 295 mm x 100 mm |
| Outside diameter | Ø 295 mm |
| Width | Ø 295 mm |
| Height | Ø 295 mm |
| Depth | 100 mm |
| Colour | white/black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 2 kg |
| Packing unit | 1 |
| Type of speaker | 200 |
| Packaging dimensions (W x H x L) | 0.315 x 0.135 x 0.315 m |
| Gross weight | 2.47 kg |
| Net weight | 2.07 kg |
