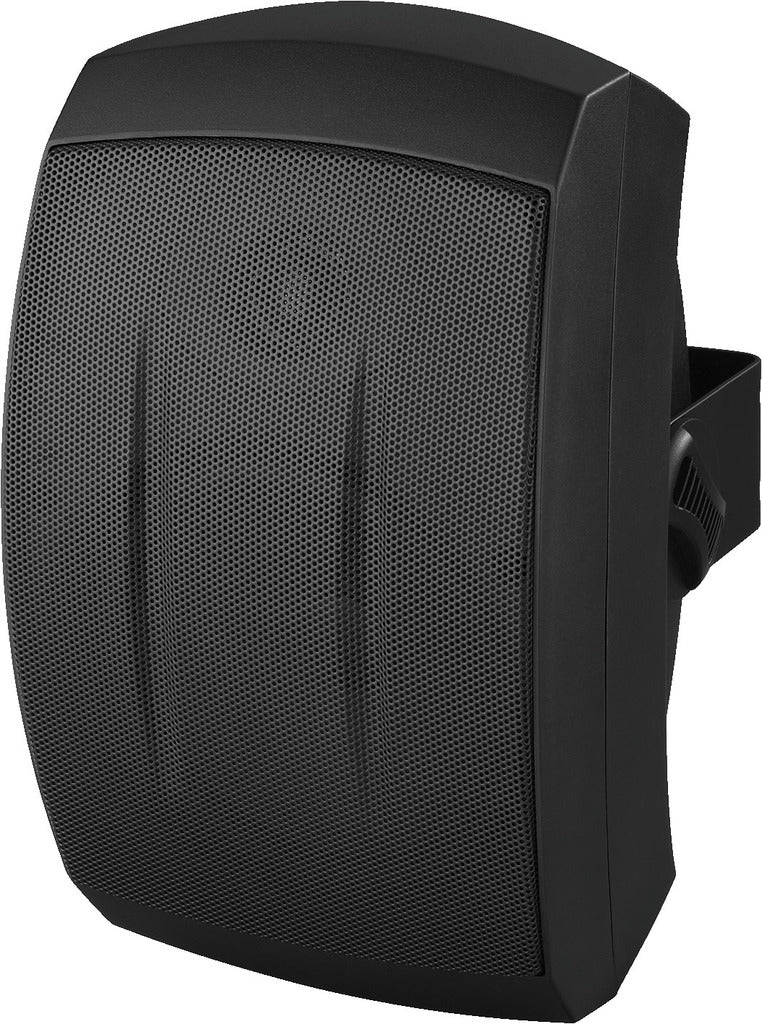

Deliver crystal-clear sound, indoors or out, with the versatile and rugged Monacor ESP-232/SW PA wall-mount speaker. Combining exceptional sound quality with a durable, weather-resistant design, this compact black speaker is the perfect choice for professional background music and paging systems.
Â
Â
Dual Transmission Technology: Operates flawlessly in both 100 V PA systems and low-impedance (8 $\Omega$) setups.
100 V Taps: Selectable power settings of 30 / 20 / 10 / 5 W RMS for tailored coverage.
Low Impedance: 25 W RMS (50 W max) power at 8 $\Omega$.
Superior 2-Way Sound: Equipped with a 13 cm (5") polypropylene bass-midrange speaker and a clear dome tweeter to ensure a full-range frequency response from 75 - 20,000 Hz.
Built for the Elements: The robust plastic housing and lacquered aluminum grille are rated IP55, offering protection against dust ingress and water jets, making it ideal for patios, pool areas, terraces, or public spaces.
Compact & Efficient: Despite its small size, the ESP-232/SW boasts excellent efficiency (89 dB), ensuring powerful sound projection.
Modern Aesthetics: Its contemporary black (SW) design blends seamlessly into any environment. (Also available in white, WS).
Easy Installation: Supplied complete with a matching, adjustable metal wall bracket for quick and precise mounting.
| ESP-232/SW | |
|---|---|
| Active/passive | passive |
| Transmission technology | 100 V or low-impedance |
| Total power rating | 50 W |
| Power rating (RMS) | 30/20/10/5 W (100 V) 25 W (8 Ω) |
| Impedance | 8 Ω |

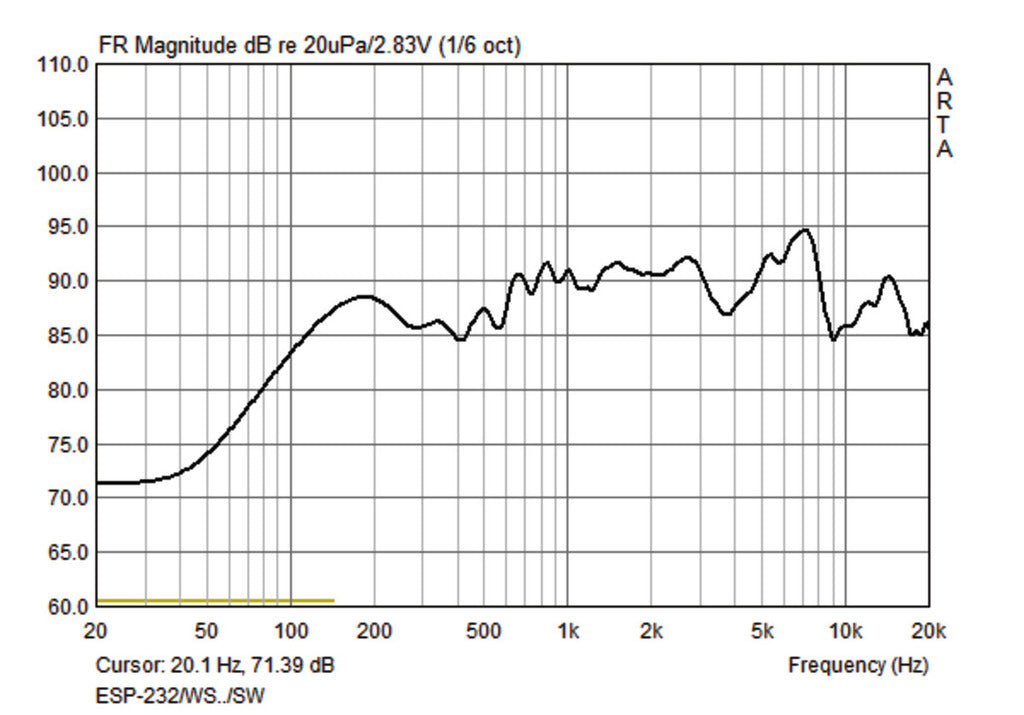

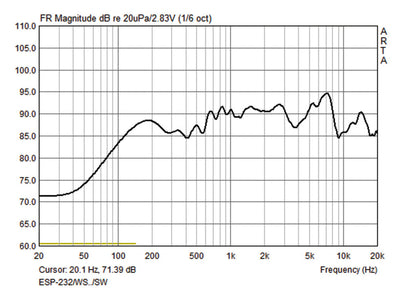

| Frequency range | 75-20,000 Hz |
| Number of speakers | 2 |
| Speaker size | 13 cm (5") |
| SPL | 89 dB |

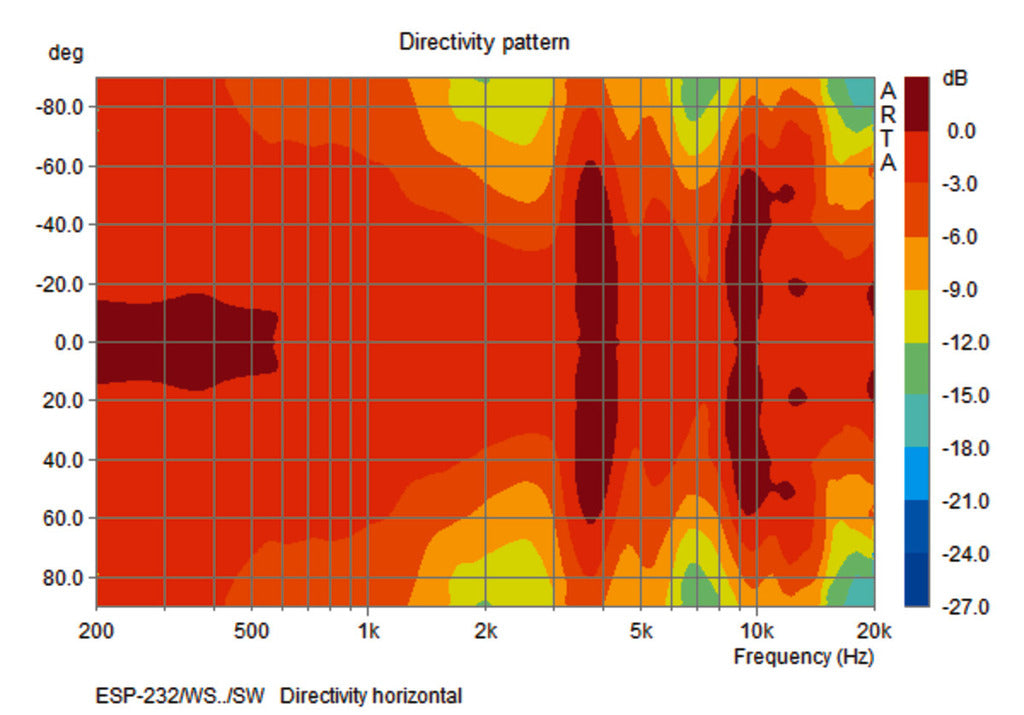

| Radiation angle/beam angle | H: 120°/V: 100° |

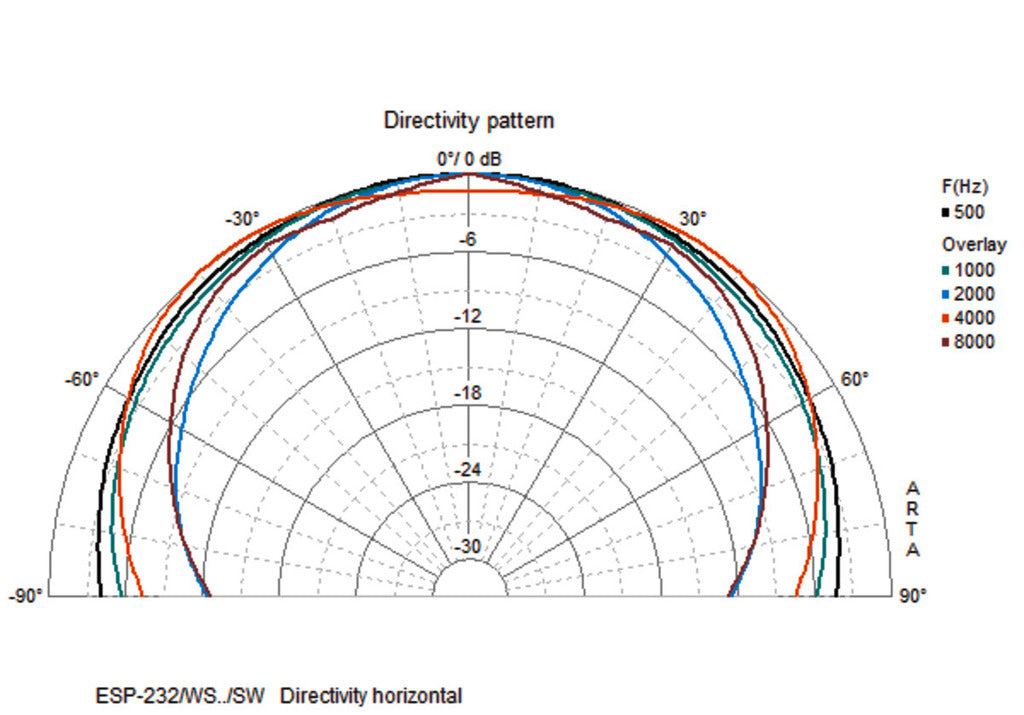

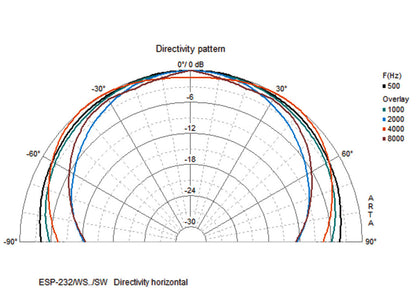

| Radiation angle, horizontal | 120° |

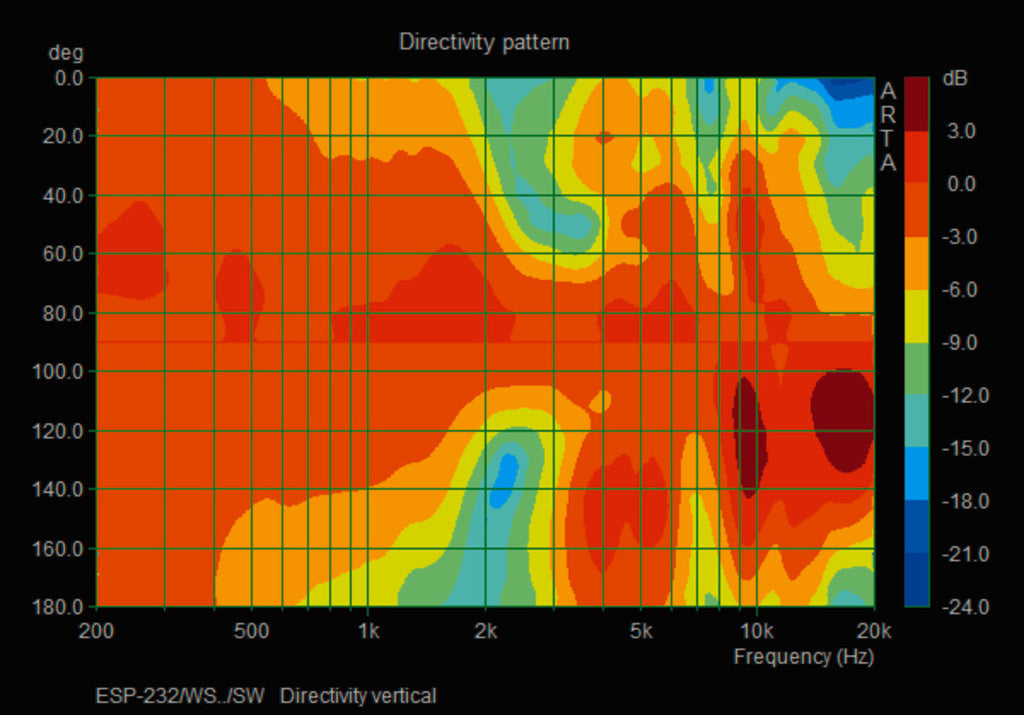

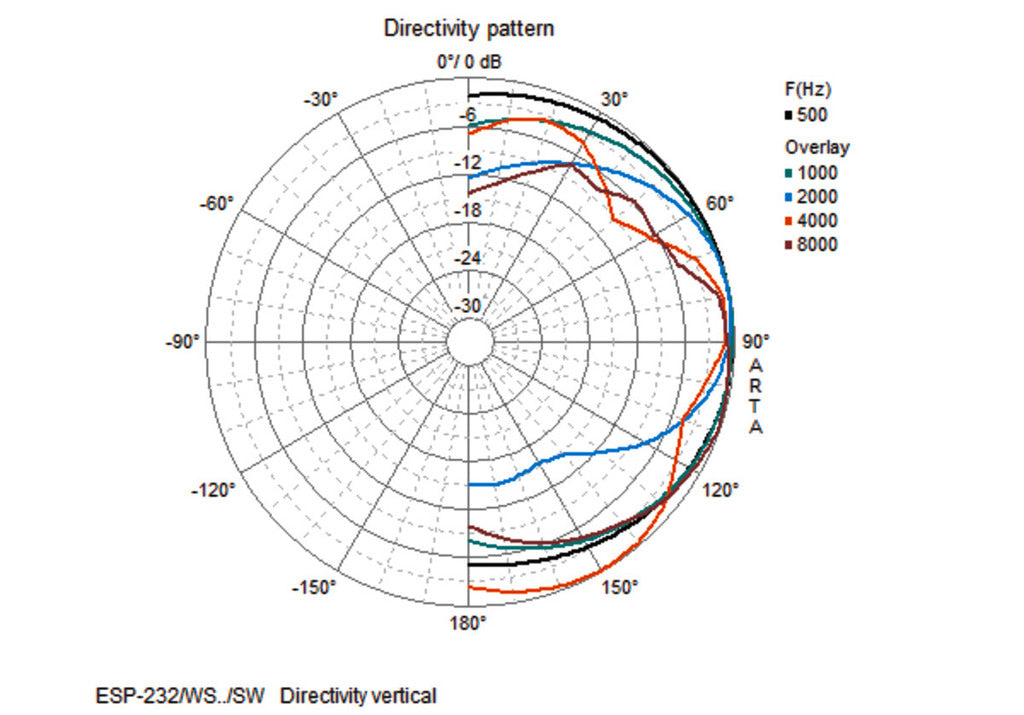

| Radiation angle, vertical | 100° |
| Housing material | plastic |
| Colour | black |
| Mounting device | mounting bracket |
| Protection class | IP55 |
| Admiss. ambient temp. | -20 °C to +50 °C |
| Dimensions | 160 x 260 x 180 mm |
| Width | 160 mm |
| Height | 260 mm |
| Depth | 180 mm |
| Weight | 2.3 kg |
| Inputs | spring-load. speaker term. |
| Packaging dimensions (W x H x L) | 0.205 x 0.19 x 0.3 m |
| Gross weight | 2.82 kg |
| Net weight | 2.46 kg |
