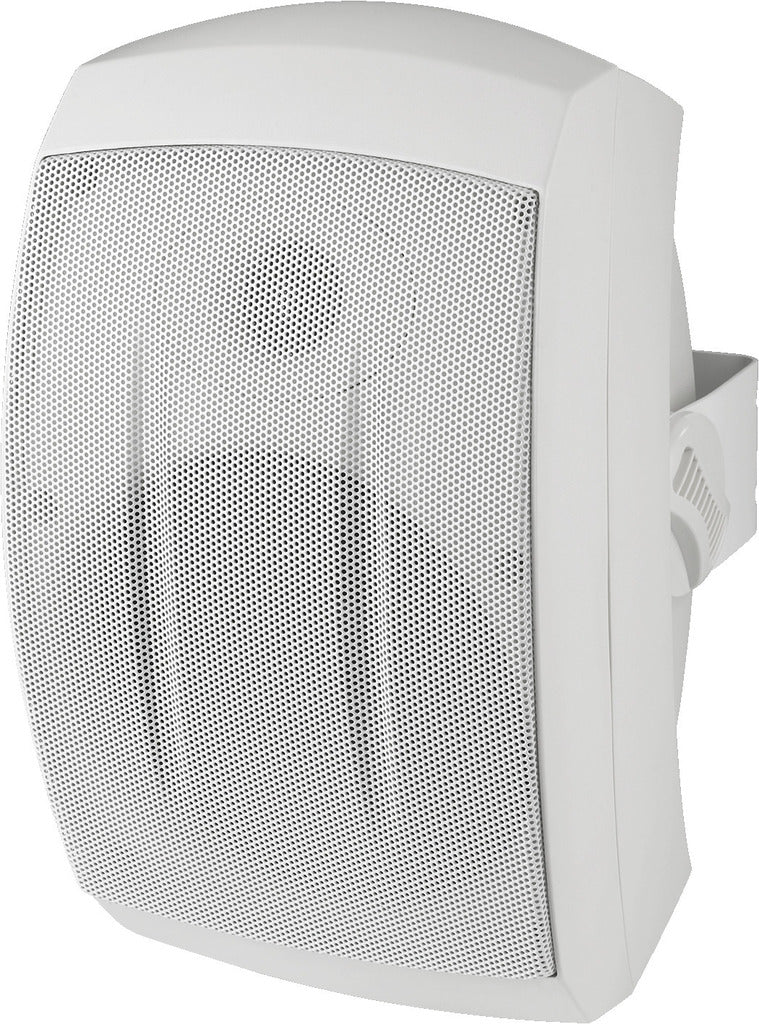

✨ MONACOR ESP-232/WS: Weatherproof 2-Way PA Wall Speaker System
Deliver crisp, clear audio to any environment with the versatile and rugged MONACOR ESP-232/WS wall-mount speaker. Engineered for professional Public Address (PA) applications, this 2-way system provides excellent sound quality and is built to withstand the elements, making it perfect for both indoor and protected outdoor installations.
Weatherproof Construction: Featuring an IP55 protection rating, the durable white plastic housing and lacquered aluminium grille are protected against dust and jetting water, ensuring reliable performance in various conditions.
Dual-Use Technology: Highly flexible with a built-in power selector switch for operation in:
100 V PA systems with selectable power taps (30W, 20W, 10W, 5W RMS).
Low-impedance 8 $\Omega$ systems (25W RMS/50W MAX).
Excellent Sound Quality: The 2-way system features a 13 cm (5") polypropylene bass-midrange speaker and a dome tweeter to provide a wide frequency range of 75-20,000 Hz and superior audio fidelity.
High Efficiency: Enjoy powerful sound projection even from this compact speaker, boasting an SPL of 89 dB (1W/m).
Modern Design & Easy Installation: The modern, clean white design blends seamlessly into most environments. It is supplied complete with a matching metal wall bracket for simple and secure wall mounting.
| ESP-232/WS | |
|---|---|
| Active/passive | passive |
| Transmission technology | 100 V or low-impedance |
| Total power rating | 50 W |
| Power rating (RMS) | 30/20/10/5 W (100 V) 25 W (8 Ω) |
| Impedance | 8 Ω |

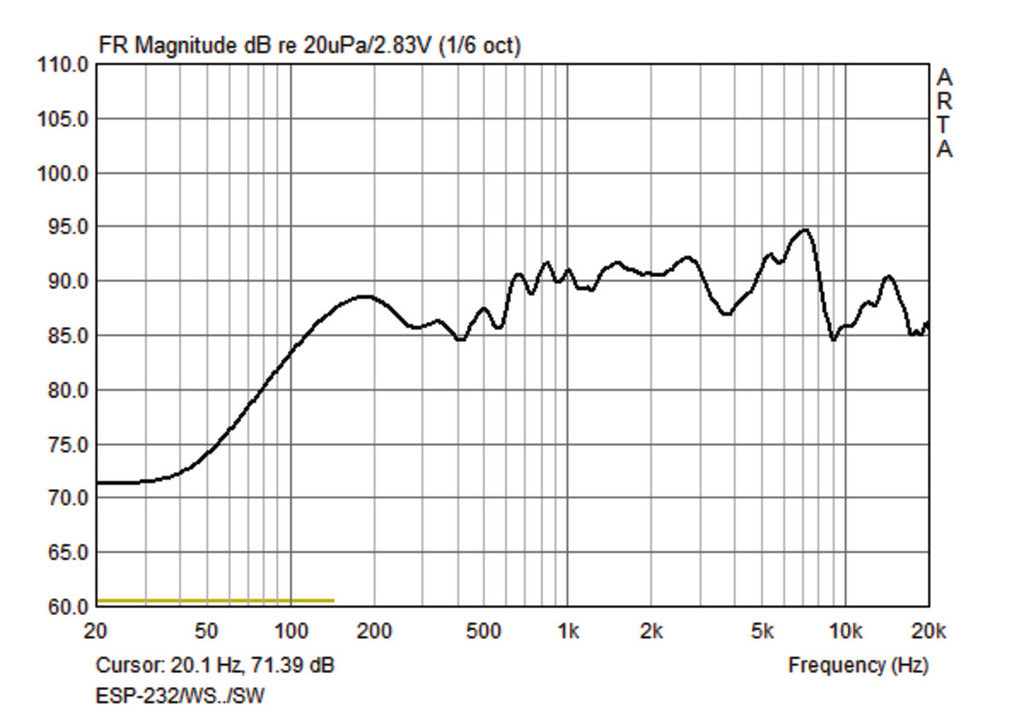

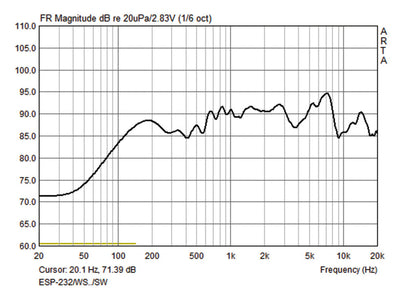

| Frequency range | 75-20,000 Hz |
| Number of speakers | 2 |
| Speaker size | 13 cm (5") |
| SPL | 89 dB |

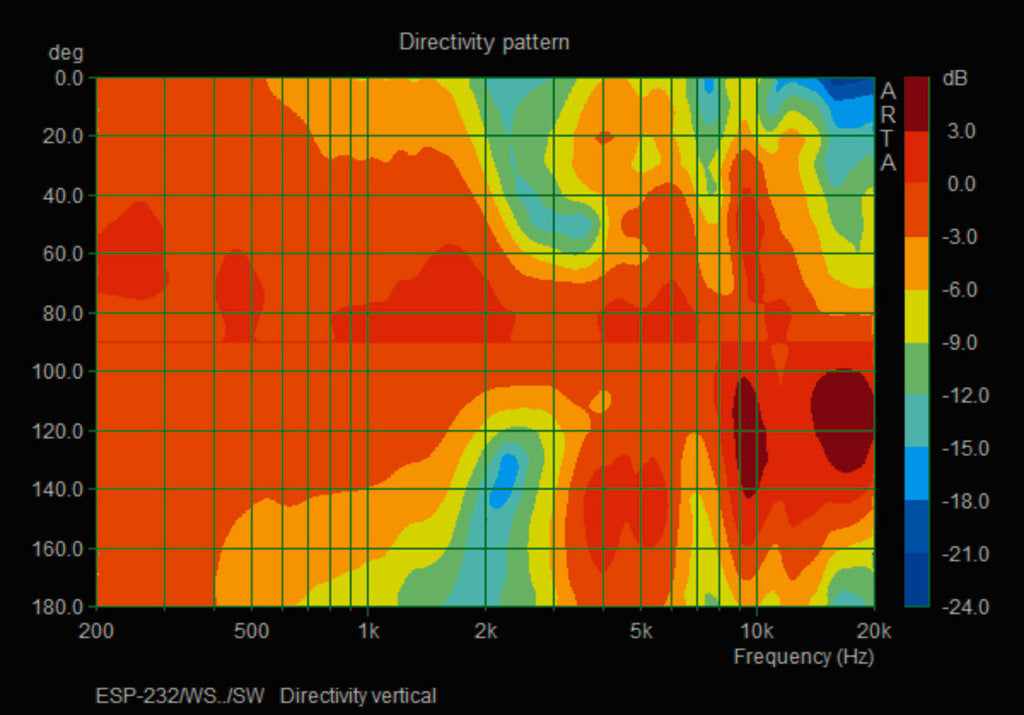

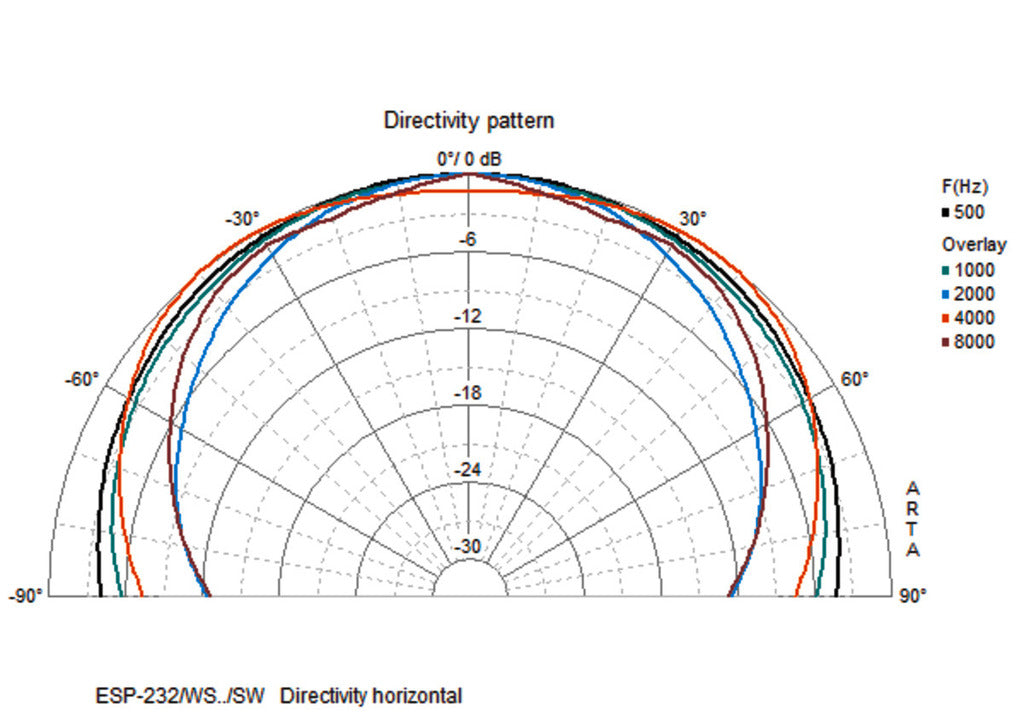

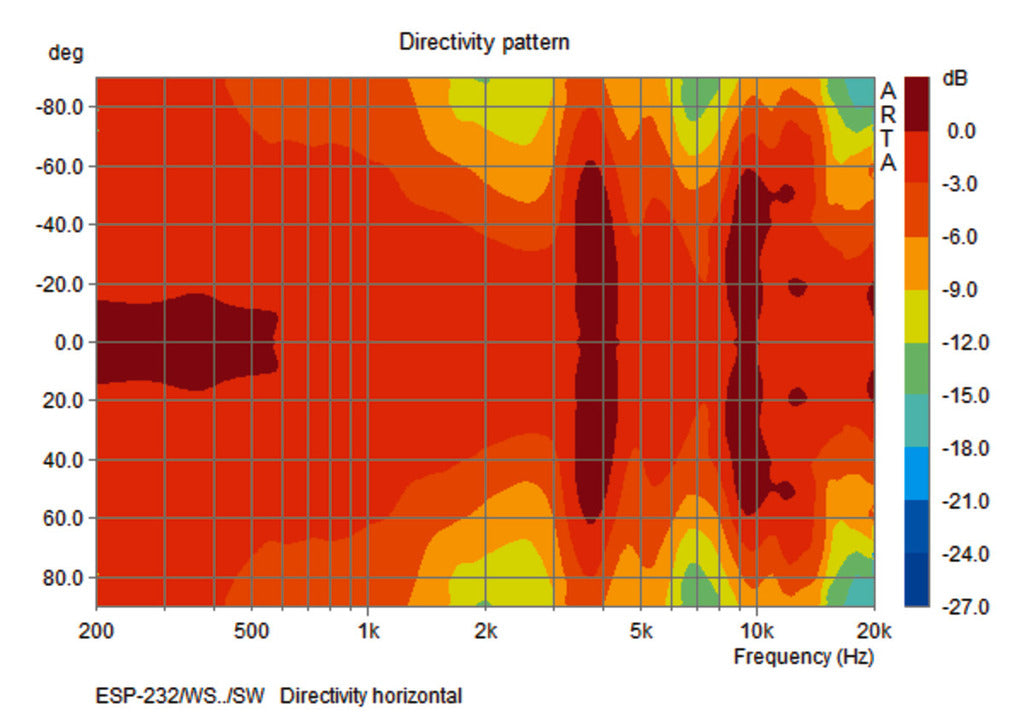

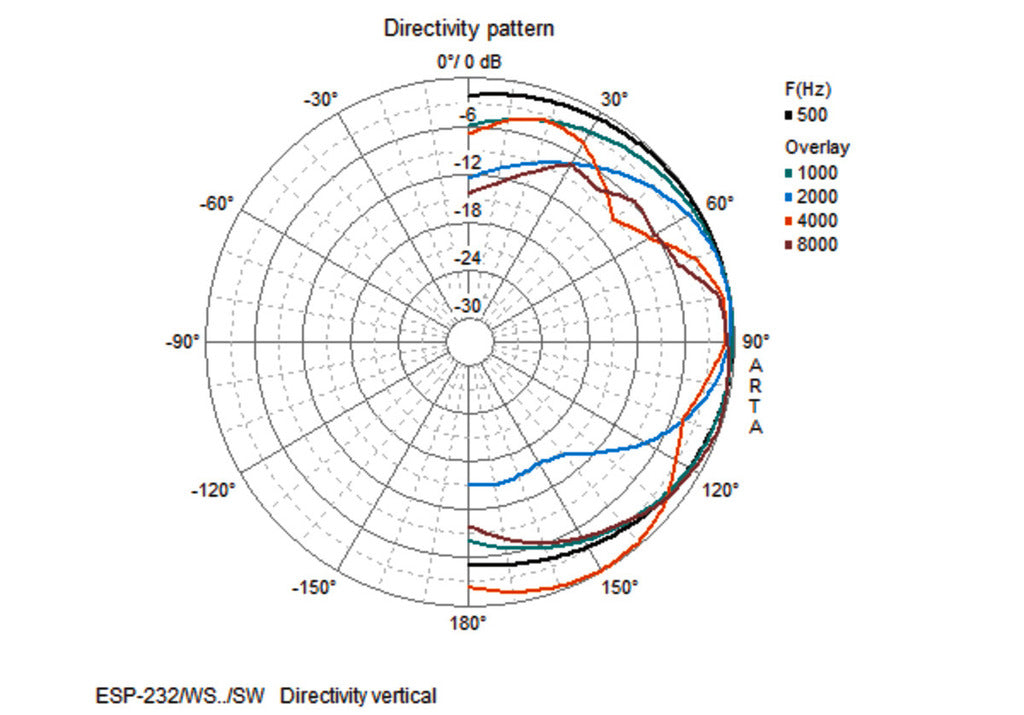

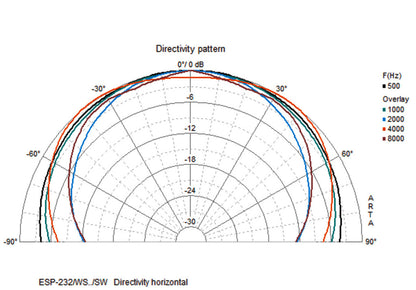

| Radiation angle/beam angle | H: 120°/V: 100° |
| Radiation angle, horizontal | 120° |
| Radiation angle, vertical | 100° |
| Housing material | plastic |
| Colour | white |
| Mounting device | mounting bracket |
| Protection class | IP55 |
| Admiss. ambient temp. | -20 °C to +50 °C |
| Dimensions | 160 x 260 x 180 mm |
| Width | 160 mm |
| Height | 260 mm |
| Depth | 180 mm |
| Weight | 2.3 kg |
| Inputs | spring-load. speaker term. |
| Packaging dimensions (W x H x L) | 0.205 x 0.19 x 0.3 m |
| Gross weight | 2.8 kg |
| Net weight | 2.44 kg |
