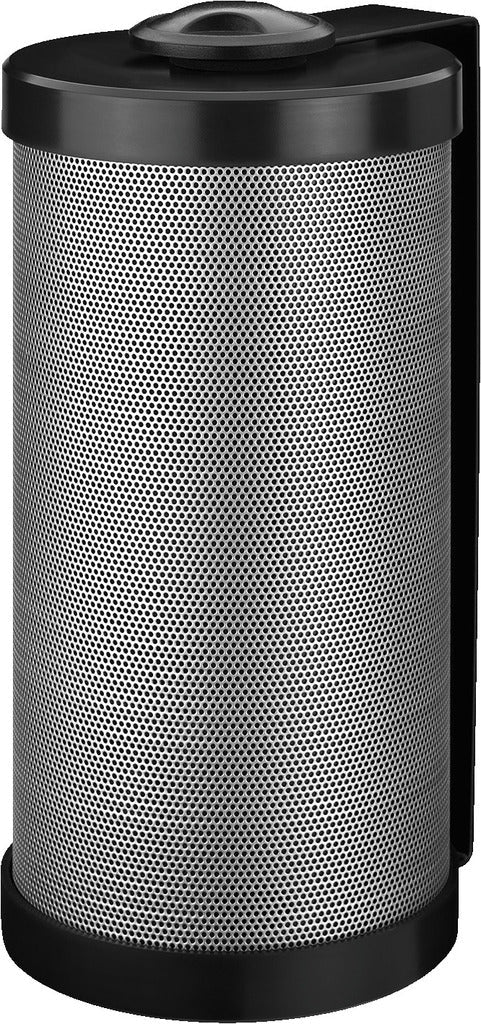

🔊 Monacor ESP-315/SW: 2-Way PA Wall-Mount Speaker System
Experience superior sound quality and exceptional versatility with the Monacor ESP-315/SW. This black, 2-way PA wall-mount speaker system is designed for professional audio (PA) applications, offering a clear and well-balanced sound across your venue.
Â
Â
Excellent Audio Performance: Features a high-quality 2-way system, including a 10 x 15 cm (4" x 6") bass-midrange speaker and a 13 mm dome tweeter for a wide frequency response of 75–20,000 Hz.
Dual Operating Modes: Highly flexible with support for both 100 V PA systems and low-impedance (8 $\Omega$) operation, selectable via a rear switch.
100 V Taps: 15 W, 10 W, 5 W, and 2.5 W.
Low-Impedance: 15 W (RMS) at 8 ohms.
Flexible Installation: Can be mounted horizontally or vertically using the supplied wall brackets.
Optimized Coverage: The direction of sound radiation can be individually aligned to perfectly cover the desired listening area.
Durable Design: Housed in robust black plastic (SW) with a lacquered metal grille, suitable for commercial environments.
Perfect for restaurants, shops, conference rooms, offices, and any location requiring a flexible, high-quality public address or background music solution.
| ESP-315/SW | |
|---|---|
| Active/passive | passive |
| Transmission technology | 100 V or low-impedance |
| Total power rating | 30 W |
| Power rating (RMS) | 15/10/5/2.5 W (100 V) 15 W (8 Ω) |
| Impedance | 8 Ω |
| Frequency range | 75-20,000 Hz |
| System | 2-way |
| Number of speakers | 2 |
| Speaker size | 10 x 15 cm (4" x 6") |
| SPL | 90 dB/W/m |
| Radiation angle/beam angle | H: 140°/V: 100° |
| Radiation angle, horizontal | 140° |
| Radiation angle, vertical | 100° |
| Housing material | plastic |
| Colour | black |
| Mounting device | mounting bracket |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | Ø 133 mm x 280 mm |
| Width | Ø 133 mm |
| Height | 280 mm |
| Depth | Ø 133 mm |
| Weight | 2.1 kg |
| Inputs | spring-load. speaker term. |
| Packaging dimensions (W x H x L) | 0.15 x 0.15 x 0.305 m |
| Gross weight | 2.36 kg |
| Net weight | 2.2 kg |
