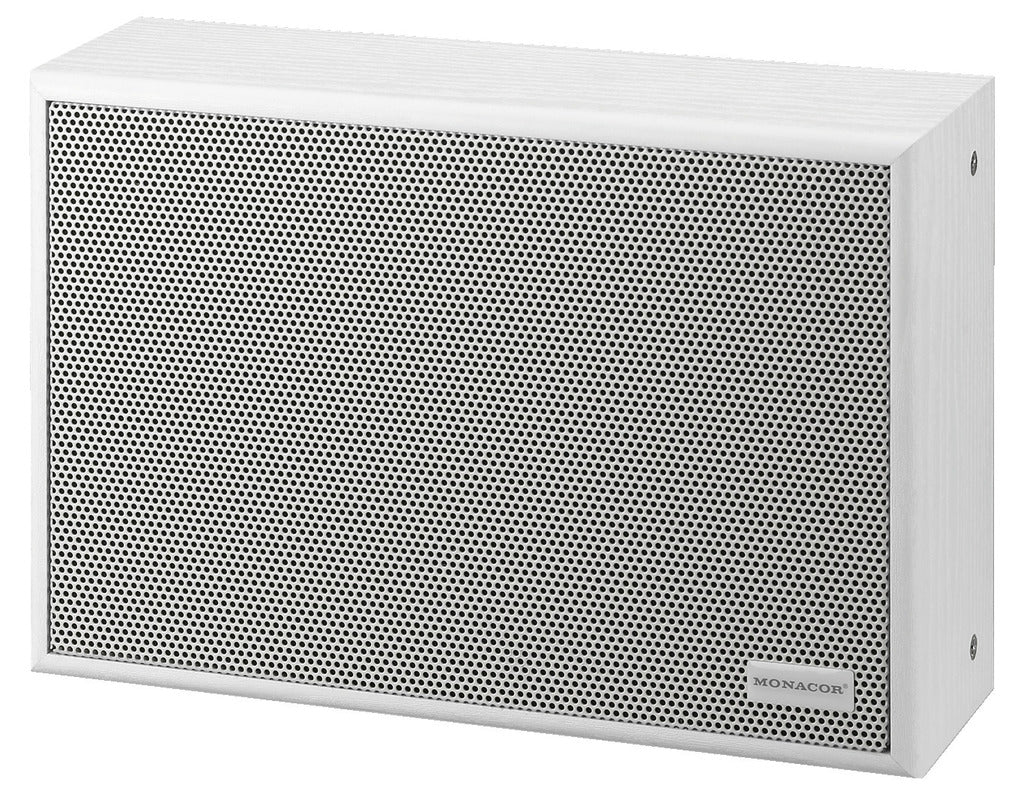

🔊 Monacor ESP-50EN/WS: PA Wall Speaker with EN 54-24 Certification
The Monacor ESP-50EN/WS is a reliable and robust PA wall speaker, perfectly suited for professional public address and voice alarm systems. Certified according to EN 54-24, this speaker meets the strict requirements for use in voice evacuation and fire detection systems, ensuring clear and intelligible announcements when it matters most.
Â
Â
EN 54-24 Certified: Compliant with standards for loudspeakers in voice alarm systems.
100 V Line Technology: Designed for long-distance transmission and easy integration into existing public address systems with selectable power taps (6/3/1.5 W RMS).
Optimal Sound: Features a 13 cm (5") full-range speaker suitable for both clear voice transmissions and background music.
Robust & Ball-Proof: Built with a durable wooden cabinet and a protective metal grille, it is certified ball-proof (DIN 18032, Part 3), making it ideal for gyms, sports halls, and other high-impact environments.
Simple Installation: Easy wall mounting is ensured via the supplied mounting bracket and accessories.
Discreet Design: Finished in white (RAL 9010), the speaker blends unobtrusively into various indoor settings like corridors, stairwells, and public areas.
| ESP-50EN/WS | |
|---|---|
| Active/passive | passive |
| Transmission technology | 100 V |
| Total power rating | 6 W |
| Power rating (RMS) | 6/3/1.5 W |
| Frequency range | 100-19,000 Hz |
| Number of speakers | 1 |
| Speaker size | 13 cm (5") |
| SPL | 93 dB (1 W/1 m)
77 dB (EN, 1 W/4 m) |
| Max. rated SPL | 101 dB (1 m)
86 dB (EN, 4 m) |
| Radiation angle/beam angle | H180°/V180° (500 Hz)
H80°/V88° (1 kHz) H131°/V126° (2 kHz) H77°/V69° (4 kHz) |
| Radiation angle, horizontal | 180° (500 Hz)
80° (1 kHz) 131° (2 kHz) 77° (4 kHz) |
| Radiation angle, vertical | 180° (500 Hz)
88° (1 kHz) 126° (2 kHz) 69° (4 kHz) |
| Housing material | wood |
| Colour | white, RAL9010 |
| Mounting device | mounting bracket |
| Protected against ball rebound | yes |
| Admiss. ambient temp. | -10 °C to +50 °C |
| Dimensions | 265 x 165 x 90Â mm |
| Width | 265 mm |
| Height | 165 mm |
| Depth | 90 mm |
| Weight | 1.6 kg |
| Inputs | screw terminals |
| Packaging dimensions (W x H x L) | 0.27 x 0.1 x 0.17 m |
| Gross weight | 1.84 kg |
| Net weight | 1.62 kg |
