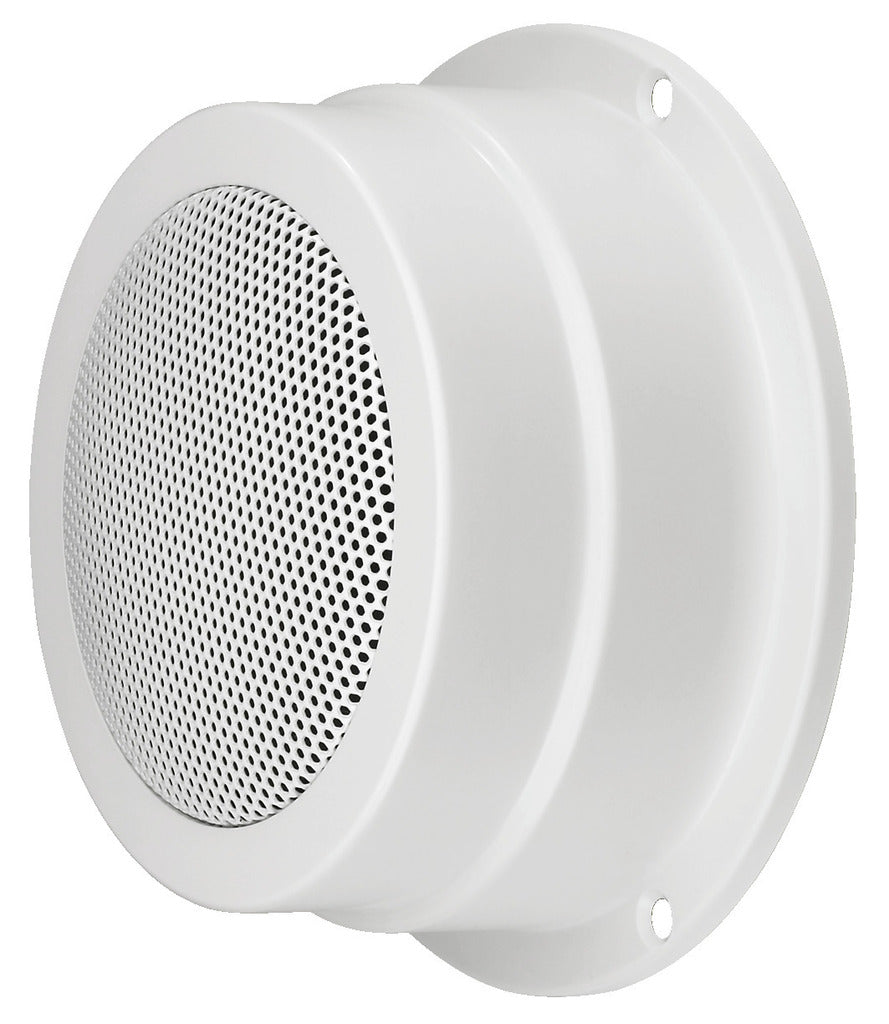

✨ MONACOR ESP-90/WS PA Wall Speaker: Clear, Consistent Public Address
The MONACOR ESP-90/WS is a reliable, surface-mounted PA wall speaker engineered for clear voice announcements and background music in commercial and institutional environments. Designed for 100-volt public address systems, it offers straightforward installation and excellent sound coverage.
100 V Transmission Technology: Integrated audio transformer with three selectable power taps allows you to perfectly match the speaker's output to your room size and volume requirements.
Power Taps (RMS): 6 W, 3 W, and 1.5 W.
Optimized for Voice: Features a 13 cm (5") broadband loudspeaker optimized to deliver highly intelligible voice reproduction for announcements and emergency messages.
Wide Dispersion: The speaker boasts a $\text{180}^\circ$ horizontal and vertical radiation angle, ensuring a consistent and uniform sound field across a wide area, reducing the need for multiple speakers.
Durable and Discrete Design:
White plastic housing with an open rear panel for easy surface-mounting.
Protected by a robust metal protective grille.
Compact dimensions (Ø 168 mm x 72 mm depth) for a discreet wall presence.
Simple Installation: Supplied with all necessary mounting materials and featuring secure screw-terminal inputs for a reliable, maintenance-friendly connection.
| ESP-90/WS | |
|---|---|
| Active/passive | passive |
| Transmission technology | 100 V |
| Total power rating | 6 W |
| Power rating (RMS) | 6/3/1.5 W |
| Frequency range | 80-19,000 Hz |
| Number of speakers | 1 |
| Speaker size | 13 cm (5") |
| SPL | 93 dB/W/m |
| Max. rated SPL | 101 dB |
| Radiation angle/beam angle | 180° |
| Radiation angle, horizontal | 180° |
| Radiation angle, vertical | 180° |
| Housing material | plastic |
| Colour | white |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | Ø 168 mm x 72 mm |
| Width | Ø 168 mm |
| Height | Ø 168 mm |
| Depth | 72 mm |
| Weight | 600 g |
| Inputs | screw terminals |
| Packaging dimensions (W x H x L) | 0.175 x 0.12 x 0.175 m |
| Gross weight | 0.851 kg |
| Net weight | 0.733 kg |
