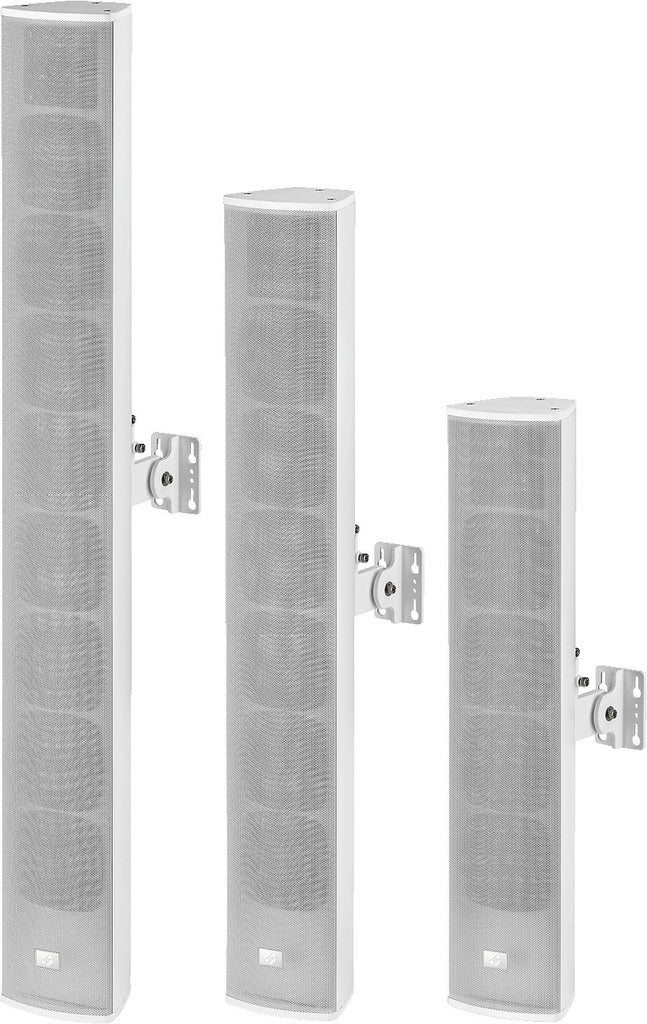

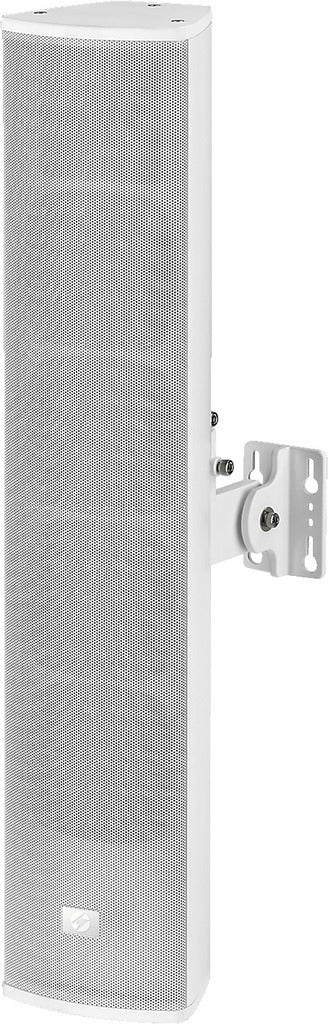

The MONACOR ETS-422TW/WS is a high-quality, weatherproof Public Address (PA) column speaker engineered to deliver clear, balanced, and intelligible audio in the most demanding indoor and outdoor environments.
With its robust construction and 2-way system, this speaker is the ideal choice for public address and background music applications in schools, sports facilities, commercial venues, places of worship, and exposed outdoor areas.
Ultimate Weather Protection: Features an IP66 protection class, housed in a durable, hose-proof, extruded aluminium cabinet with an aluminium front grille. Designed to withstand dust and powerful water jets, making it suitable for a wide temperature range of -20 C to +50 C.
Superior 2-Way Audio: The integrated 2-way speaker system includes four 10 cm (4") woofers and an additional integrated tweeter, ensuring a broad frequency range of 130 - 20,000 Hz for clear speech and excellent music reproduction.
100 V Line Technology: Specifically designed for 100 V transmission technology, offering four power taps 20/ 10/ 5/ 2.5 W for flexible system integration and customised sound distribution across various zones.
Wide and Uniform Coverage: The column design provides a wide horizontal radiation angle 140 degrees, ensuring broad sound coverage and often reducing the total number of speakers required for large areas.
Flexible Installation: Comes complete with a robust, tiltable, and movable aluminium wall bracket for secure and versatile mounting options.
| ETS-422TW/WS | |
|---|---|
| Active/passive | passive |
| Transmission technology | 100 V |
| Total power rating | 20 W |
| Power rating (RMS) | 20/10/5/2.5 W |
| Frequency range | 130-20,000 Hz |
| Number of speakers | 4+1 |
| Speaker size | 10 cm (4") |
| SPL | 92 dB/W/m |
| Radiation angle/beam angle | H: 140°/V: 50° |
| Radiation angle, horizontal | 140° |
| Radiation angle, vertical | 50° |
| Housing material | aluminium |
| Colour | white |
| Mounting device | wall bracket |
| Protection class | IP66 |
| Admiss. ambient temp. | -20 °C to +50 °C |
| Dimensions | 124 x 610 x 108 mm |
| Width | 124 mm |
| Height | 610 mm |
| Depth | 108 mm |
| Weight | 4 kg |
| Inputs | cable connection |
| Packaging dimensions (W x H x L) | 0.165 x 0.2 x 0.72 m |
| Gross weight | 4.84 kg |
| Net weight | 4.17 kg |
