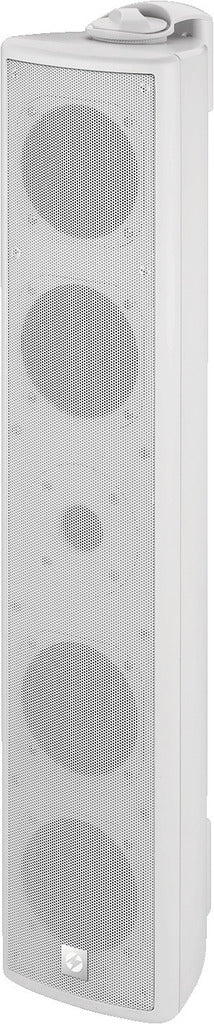

Experience superior sound quality and versatile installation with the MONACOR ETS-530TW/WS PA Column Speaker. Designed for public address (PA) and background music in indoor spaces, this 2-way system delivers clear, balanced audio across the full frequency range of 85-20,000 Hz.
Â
Â
2-Way Superior Sound: Features an integrated tweeter alongside the main speakers for a significantly improved and clearer sound compared to traditional single-driver columns. An integrated crossover network ensures optimal frequency distribution.
Dual Operation Mode: Easily integrates into any system with selectable 100 V transmission technology or standard 8 ohm low-impedance operation.
Flexible Power Taps: The 6-step power selector switch includes settings for 30/15/7.5/4/2 W RMS at 100 V, plus an 8 ohm switching option, offering maximum flexibility for system design.
Durable and Discreet: Housed in a robust white plastic cabinet with a protective white metal grille, blending seamlessly into bright environments.
Easy Installation: Supplied complete with mounting brackets for straightforward wall installation. Connection is simple via a spring-loaded speaker terminal.
| ETS-530TW/WS | |
|---|---|
| Active/passive | passive |
| Transmission technology | 100 V or low-impedance |
| Total power rating | 60 W |
| Power rating (RMS) | 30/15/7.5/4/2Â W (100Â V)
30 W (8 Ω) |
| Impedance | 8 Ω |
| Frequency range | 85-20,000 Hz |
| System | 2-way |
| Number of speakers | 4+1 |
| Speaker size | 10 cm (4") |
| SPL | 89 dB/W/m |
| Radiation angle/beam angle | H: 140°/V: 40° |
| Radiation angle, horizontal | 140° |
| Radiation angle, vertical | 40° |
| Housing material | plastic |
| Colour | white |
| Mounting device | mounting brackets |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 128 x 620 x 140 mm |
| Width | 128 mm |
| Height | 620 mm |
| Depth | 140 mm |
| Weight | 4.5 kg |
| Inputs | spring-load. term. |
| Packaging dimensions (W x H x L) | 0.18 x 0.18 x 0.73 m |
| Gross weight | 4.94 kg |
| Net weight | 4.56 kg |
