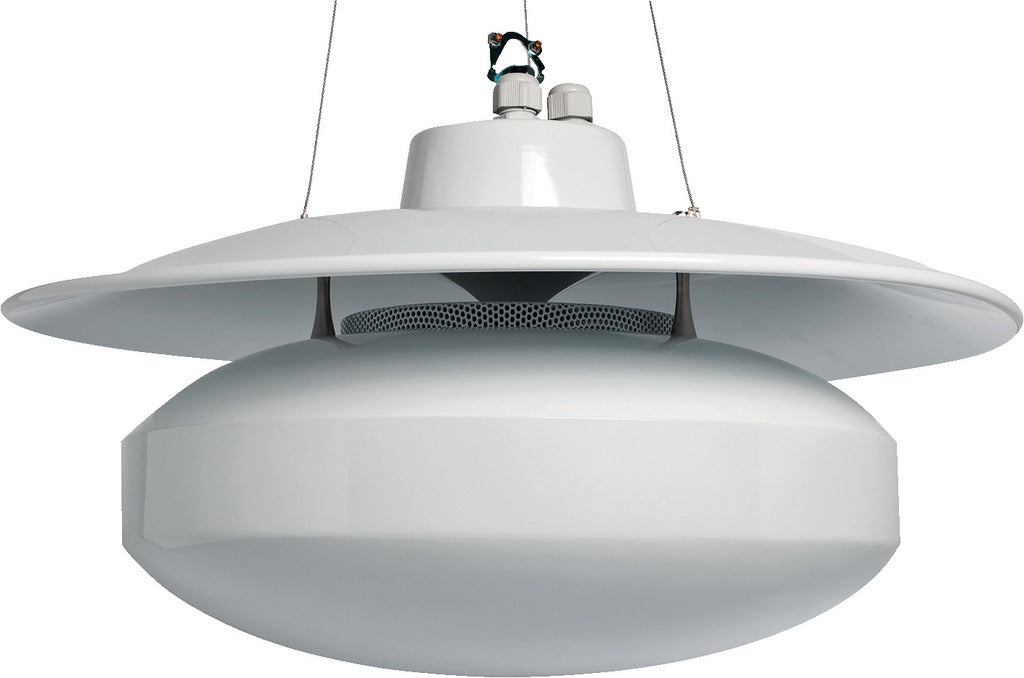

With this 360° pendant speaker, it is possible to implement a relatively large-scale PA application. When installed at a mounting height of 4 m, you are able to provide a homogeneous sound radiation for approx. 200 m2. The speaker features an excellent sound quality due to the 2-way coaxial speaker system with a large housing.
High-quality 2-way PA pendant speaker, with perfect 360° sound radiation and EN 54-24 certification.
100 V line technique: 30/20/10 W
2-way coaxial speaker (6.5")
Elaborate reflector design for a wide and homogeneous omnidirectional radiation
Excellent sound reproduction due to the attached housing, even down to the bass
Recommended intallation height: approx. 4 m (reflector)
White lacquered sheet steel housing
Suspension via steel safety ropes and snap hooks
Cable inlet via high-strength cable gland (PG11)
Ceramic terminal
Active/passive passive
Transmission technology 100 V
Power rating (RMS) 30/20/10 W
Frequency range 60-20,000 Hz
Bass speaker 1
Tweeter 1
Number of speakers 2
Speaker size 6.5"
SPL 83 dB/W/m
Max. rated SPL 98 dB
Radiation angle/beam angle H: 360°/V: 160°
Radiation angle, horizontal 360°
Radiation angle, vertical 160°
Housing material metal
Colour white
Mounting device steel rope with snap hook
Admiss. ambient temp. 0-40 °C
Dimensions Ø 480 mm x 300 mm
Width Ø 480 mm
Height 300 mm
Weight 4.5 kg
Inputs 1 x high-strength cable gland (PG11)
Other features EN 54
Accessories supplied with safety rope for suspended installation
Packing dimensions (W x H x L) 0.57 x 0.36 x 0.57 m
Gross weight 7.66 kg
Net weight 5 kg
