MONACOR LA-40 Active loop amplifier

MONACOR LA-40 Active loop amplifier

RRP

£190.80

inc VAT

£190.80
Sold out
Tax included. Shipping calculated at checkout.
🔊 Monacor LA-40 Active Loop Amplifier: Clarity at Home The Monacor LA-40 is an active loop amplifier specifically designed to create a discreet and effective audio induction loop system in...
Vendor: MONACOR
SKU: LA-40

Product Specification

Access Manufacturer's website for detailed product specifications and documents.

Want to see trade pricing? Register for a trade account!

You can apply for a trade account with us by either;

1. Registering at our B2B Trade Portal - Our dedicated online trade portal gives you a seamless buying experience. See trade pricing, view stock availability, place orders and check your order status.

2. Completing a trade application form and returning via email to sales@epicaudio.co.uk.

Project Enquiry

We specialise in commercial projects offering a comprehensive commercial project service, collaborating with you to design, supply, and install solutions that meet your specifications, timeline, and budget.

Get in touch today to discuss your requirements!

View full product details

🔊 Monacor LA-40 Active Loop Amplifier: Clarity at Home

The Monacor LA-40 is an active loop amplifier specifically designed to create a discreet and effective audio induction loop system in domestic locations up to 40 m2 (approximately 430 sq. ft.).

It's the ideal solution for hearing aid users who want to enjoy clear audio from their TV, stereo system, or even live conversations, transmitted directly to their hearing aid's T-coil without distracting background noise or echoes.



✨ Key Features



  • Wireless Clarity: Transmits audio signals via an induction loop (laid on the floor, wall, or ceiling) to be picked up by T-coil equipped hearing aids or induction loop receivers (like the optional LR-200). Enjoy wireless freedom of movement within the loop area.

  • Dynamic Compressor: Features a built-in dynamic compressor to prevent harsh or sudden loud noises while boosting quieter sounds, ensuring comfortable and consistent listening.

  • Flexible Connectivity:

    • Easily connects to a TV (SCART adapter included) or audio system (RCA line input).

    • Microphone Input: Connect an optional microphone (e.g., ECM-300LA) to hear conversations or announcements from other occupants. Built-in phantom power is provided for electret microphones.

  • User-Adjustable Sound: Includes 2-way tone control (Bass/Treble) and adjustable input sensitivity for line and microphone signals, allowing for customized sound to suit your needs.

  • Integrated Alarm Signal: A built-in signal generator allows for an alarm signal to be activated via an optional external switch—an invaluable safety feature.

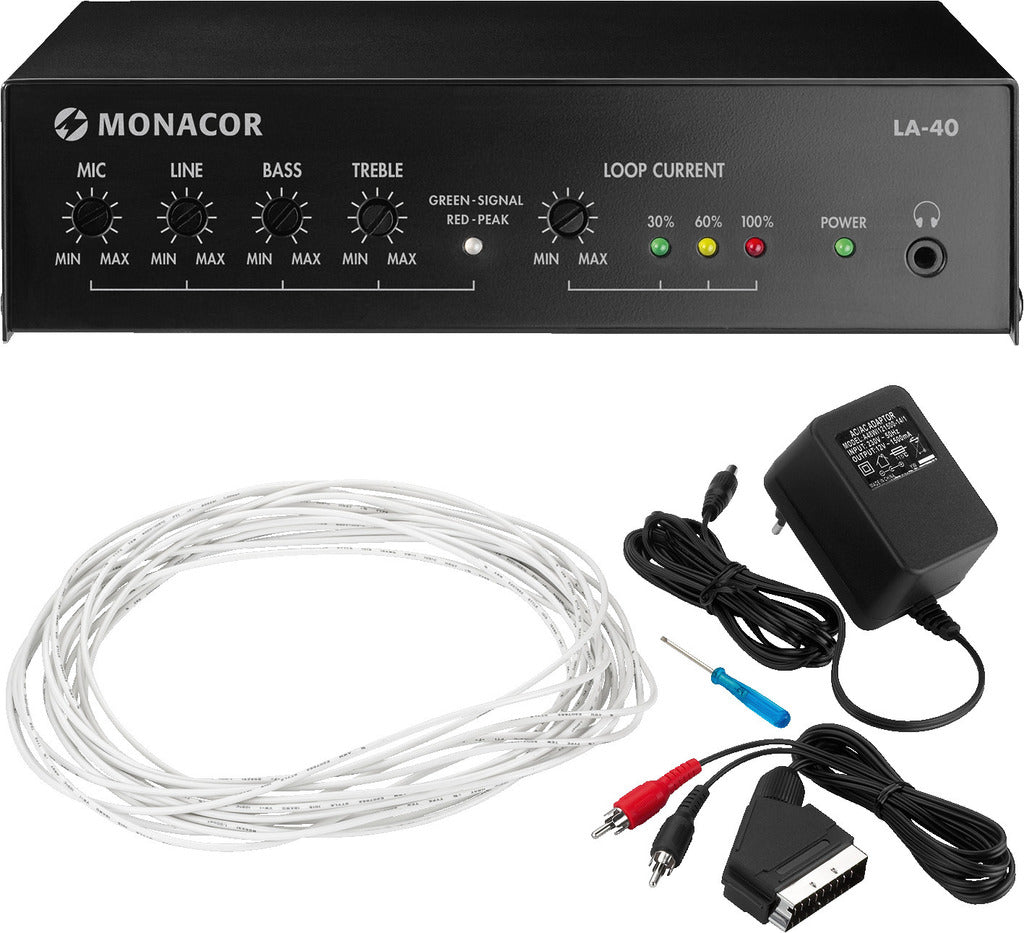

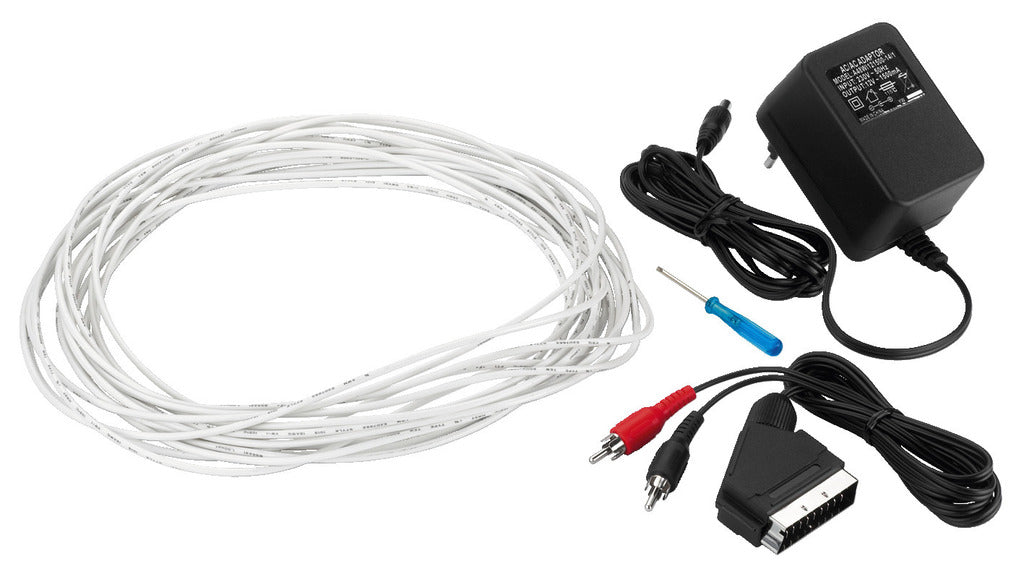

  • Complete Kit: Supplied with 35 m of loop wire for setting up the induction loop, a SCART adapter, and the power supply unit.

Technical specifications LA-40

LA-40
Loop current 2.8 A
Loop resistance 0.4-2 Ω
Room size ≤ 40 m2
Inputs mic: 2 mV/660 Ω

(phantom power: 7.2 V)

6.3 mm jack

line: 48 mV/11 kΩ, 2 x RCA

alarm: 2 terminals

for connecting a switch
Outputs loop: connection of the supplied loop

via 2 terminals

headphones: ≥ 32 Ω, 3.5 mm jack
Equalizer bass ± 8 dB, 100 Hz
Equalizer treble ± 10 dB, 10 kHz
Frequency range 75-7,500 Hz, ±3 dB
THD 0.44%
Admiss. ambient temp. 0-40 °C
Power supply via encl. power supply
Dimensions 175 x 102 x 45 mm
Weight 510 g
