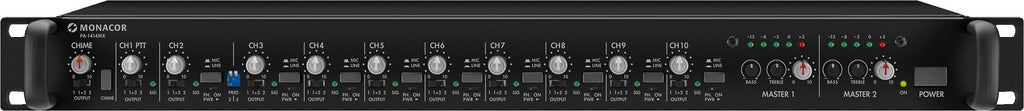

🔊 Monacor PA-1414MX: 10-Channel PA Preamplifier
The Monacor PA-1414MX is a versatile 10-channel PA preamplifier designed for robust public address (PA) systems. It serves as the central control unit ahead of a PA power amplifier, offering extensive input and control options for complex audio routing and priority announcements.
Â
Â
High Channel Density: Features 10 input channels in total:
5 x XLR inputs, switchable between mic and line level.
4 x combined XLR mic/RCA line inputs, providing flexibility for various sources.
Dual Master Outputs: Equipped with 2 x XLR master outputs and an additional record output (RCA L/R), allowing signal routing to different PA zones or recording devices.
Comprehensive Mic Control:
Selectable Phantom Power for each XLR input channel, ideal for condenser/electret microphones.
Switchable Low-Cut Filter on every microphone input to reduce low-frequency noise (e.g., handling noise).
Priority Functionality:
Dedicated Chime button with a priority circuit and remote control capability. Choose between a 2-tone chime, 4-tone chime, or a siren.
Push-to-Talk (PTT) connection (RJ45) with a priority circuit (suitable for the optional PA-4000PTT microphone).
Additional priority circuit for channels 2 and 3.
Signal Routing and Optimization:
Each input channel has an individual level control and an output selector switch for routing the signal to Master 1, Master 2, or both.
Each master output includes a 2-way tone control (Bass/Treble) for tailored sound.
Flexible Power Operation: Supports both standard mains operation  and 24 V emergency power operation, ensuring continued operation during power outages.
| PA-1414MX | |
|---|---|
| Channels | 10 |
| Inputs | 2.5 mV, bal. (mic),
250 mV, bal. (line XLR), 250 mV, unbal. (line RCA) |
| Frequency range | 20-20,000Â Hz (-0.5Â dB) |
| Equalizer bass | ± 10 dB/100 Hz |
| Equalizer treble | ± 10 dB/10 kHz |
| S/N ratio | > 60 dB (mic),
> 75 dB (line) |
| THD | < 0.05% |
| Power supply | ˜ 230 V/50 Hz/15 VA,
DC24Â V/0.5Â A |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 15 VA |
| Operating voltage (possible alternative) | DC 24 V |
| Power supply (possible alternative) | DC 0.5 A |
| Admiss. ambient temp. | 0-40 °C |
| Width | 482 mm |
| Height | 45 mm |
| Depth | 240 mm |
| Rack units, RU | 1 |
| Weight | 2.5 kg |

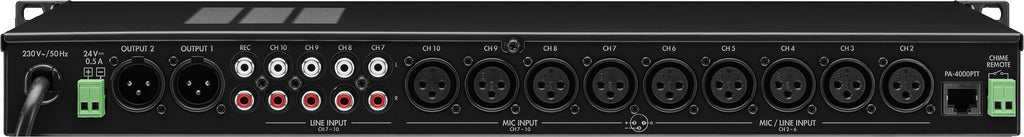

| Connections | 9 x XLR (mic/line inputs),
4 x RCA L/R (line inputs), 1 x RJ45 (push-to-talk microphone), 2 x XLR (outputs), 1 x RCA L/R (record output) |
| Packaging dimensions (W x H x L) | 0.34 x 0.13 x 0.55 m |
| Gross weight | 3.61 kg |
| Net weight | 2.57 kg |
