📢 MONACOR PA-1480 Mono PA Power Amplifier: 480W of Reliable Performance
The MONACOR PA-1480 is a robust and dependable mono PA power amplifier, engineered to deliver 480 W RMS for professional public address and sound installations. Built into a durable, 2U 19-inch rackmount chassis, this amplifier provides clear, powerful audio with essential features for critical applications.
Â
Â
Powerful Mono Output: Delivers a robust 1 x 480 W output power, suitable for 70 V and 100 V PA systems (as well as 8 ohms).
Dual Power Operation: Designed for reliability, it operates on standard 230 V mains power or an alternative 24 V DC emergency power supply (DCÂ 40 A), ensuring continuous operation in critical situations.
Switchable High-Pass Filter: Includes a switchable 400 Hz high-pass filter (6dB /oct), useful for reducing low-frequency rumble and ensuring cleaner audio, especially in speech reinforcement.
Thermal Control: Features a temperature-controlled, continuously adjustable fan to ensure efficient cooling and reliable performance during prolonged use.

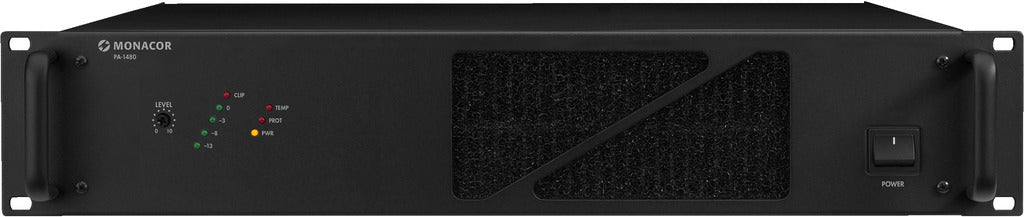

Comprehensive Monitoring: Front panel LED indicators provide real-time status updates for clip, protect, overtemperature, and output level.

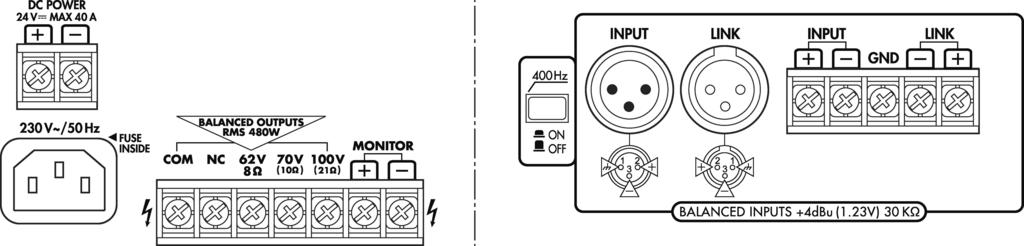

Signal Link: A convenient feed-through output (link) allows for easy signal pass-through to connect multiple units or external equipment.
| PA-1480 | |
|---|---|
| Peak output power | 480 W |
| Power rating | 480 W |
| Power rating at 8 Ω | 480 W |
| Power rating at 100 V | 480 W |
| Power rating at 70 V | 480 W |
| Output impedance | 62 V/8 Ω, 70 V/10 Ω, 100 V/21 Ω |
| Channels | 1 |
| Inputs | 1.2Â V, bal. |
| Frequency range | 35-20,000 Hz |
| S/N ratio | > 100 dB(A) |
| THD | < 1% |
| Power supply | ˜ 230 V/50 Hz/1,400 VA,
DC 24Â V/40Â A |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 1,400 VA |
| Operating voltage (possible alternative) | DC 24 V |
| Power supply (possible alternative) | DC 40 A |
| Admiss. ambient temp. | 0-40 °C |
| Width | 483 mm |
| Height | 88 mm |
| Depth | 374 mm |
| Rack units, RU | 2 |
| Weight | 15.2 kg |
| Connections | XLR/screw contacts (inputs)
screw contacts (speakers) |
| Packaging dimensions (W x H x L) | 0.54 x 0.18 x 0.48 m |
| Gross weight | 17.24 kg |
| Net weight | 15.22 kg |
