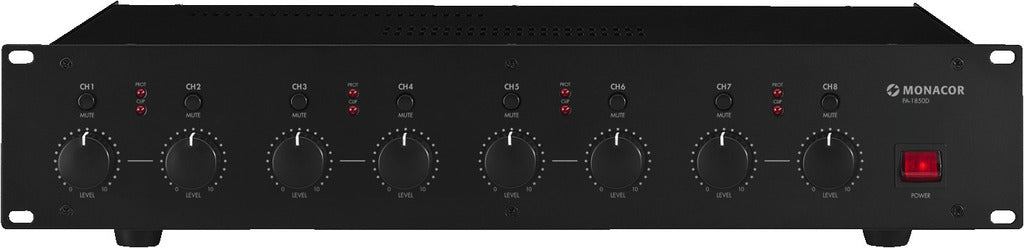

The Monacor PA-1850D is a powerful and energy-efficient 8-channel Class D Public Address (PA) amplifier, engineered for reliable, multi-zone sound reinforcement in professional environments like restaurants, hotels, schools, and event venues.
Utilizing highly-efficient Class D technology, the PA-1850D delivers 8 x 50 W of output power, significantly reducing energy consumption and operational costs while minimizing heat generation. Its robust design and versatile features make it an ideal choice for complex installation scenarios.
Â
Â
8-Channel Output: Provides 8 separate channels with an output rating of 8 x 50 W (RMS) at both 4 ohms and 70/100 V line operation, making it suitable for a wide range of speaker systems and multi-zone configurations.
High Efficiency Class D Design:
Reduced Energy Costs: Lower power consumption translates to substantial savings.
Low Heat Dispersion: The minimized heat generation leads to reduced cooling requirements.
Silent Operation: Features a fanless cooling concept for completely silent operation, perfect for noise-sensitive areas.
Emergency Power Ready: Requires a lower rechargeable battery capacity for 24 V DC emergency power operation compared to standard 100 V analogue amplifiers.
Precise Control & Monitoring:
Individual Level Control: Each of the 8 channels has its own level control for precise volume adjustment in different zones.
Channel Mute Function: Allows for individually muting each channel.
LED Indication: Features CLIP and PROTECT LEDs for each channel pair, providing clear visual feedback on the operating status and safety.
Versatile Power and Safety:
Operates via standard mains power (230 V / 50 Hz) or alternative 24 V DC emergency power supply.
Protected against short circuit for enhanced operational safety and durability.
Flexible Connectivity:

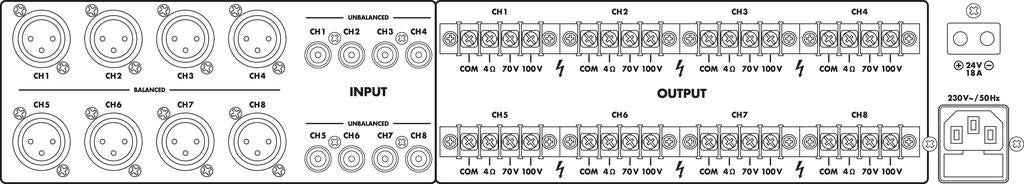

Inputs: Features 8 x balanced XLR inputs and 8 x unbalanced RCA inputs.
Outputs: Speaker connections utilize screw terminals for secure wiring.
Installation Friendly: A compact 2-rack unit (2 RU) design for easy integration into standard 19" rack cabinets.
| PA-1850D | |
|---|---|
| Peak output power | 400 W |
| Power rating | 400 W |
| Power rating at 4 Ω | 8 x 50 W |
| Power rating at 100 V | 8 x 50 W |
| Power rating at 70 V | 8 x 50 W |
| Output impedance | 4 Ω, 70/100 V |
| Channels | 8 |
| Inputs | 1 V/20 kΩ unbal.
550 mV/20 kΩ bal. |
| Frequency range | 10-20,000 Hz |
| S/N ratio | > 65 dB |
| THD | < 0.5% |
| Power supply | ˜ 230 V/50 Hz/600 VA,
DC 24Â V/18 A |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 600 VA |
| Operating voltage (possible alternative) | DC 24 V |
| Power supply (possible alternative) | DC 18 A |
| Admiss. ambient temp. | 0-40 °C |
| Width | 483 mm |
| Height | 90 mm |
| Depth | 398 mm |
| Rack units, RU | 2 |
| Weight | 18 kg |
| Connections | 8 x XLR input, bal.
8 x RCA input, screw contacts (speakers) |
| Packaging dimensions (W x H x L) | 0.47 x 0.17 x 0.58 m |
| Gross weight | 20.45 kg |
| Net weight | 18.17 kg |
