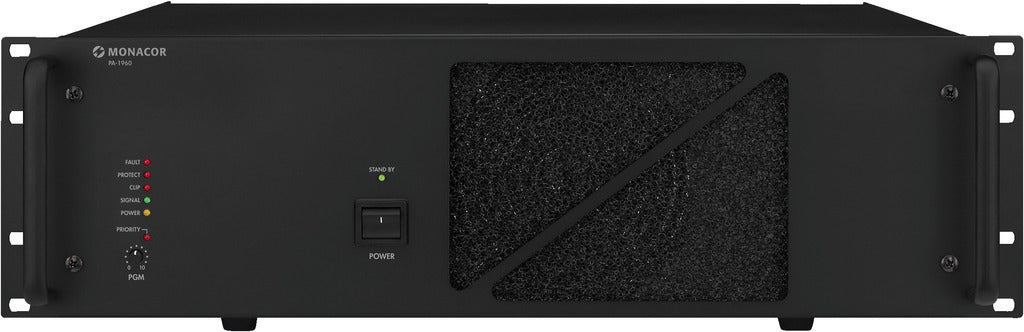

The Monacor PA-1960 is a robust and powerful mono PA amplifier designed for professional audio installations requiring reliable and high-output sound reinforcement. Delivering a substantial 960 W RMS power at 100 V, this 3U rack-mountable unit is perfect for large venues, auditoriums, and complex commercial sound systems.
Â
Â
High Power Output: Provides 1 x 960 W of consistent power, optimized for 100 V, 85 V, and 75 V line systems.
Emergency Power Operation: Features dual power supply operation via main 230 V/50 Hz or 24 V DC emergency power (80 A standby current) for guaranteed continuous performance, even during power outages.
Priority Functionality: Includes an additional, adjustable priority input with a switchable priority function, ensuring critical announcements or emergency signals are heard immediately.
System Integration: A 100 V slave input allows the amplifier to be seamlessly inserted into an existing 100 V speaker line for expansion or line amplification.
Audio Optimization: Features a switchable 400 Hz high-pass filter (6 dB/oct.) to enhance audio clarity by removing unnecessary low-frequency components from speech or signals.
Â
Â
The PA-1960 is engineered for integration and easy monitoring:

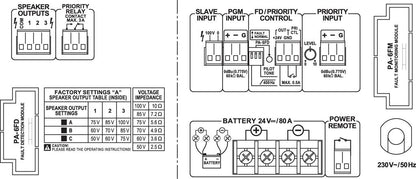

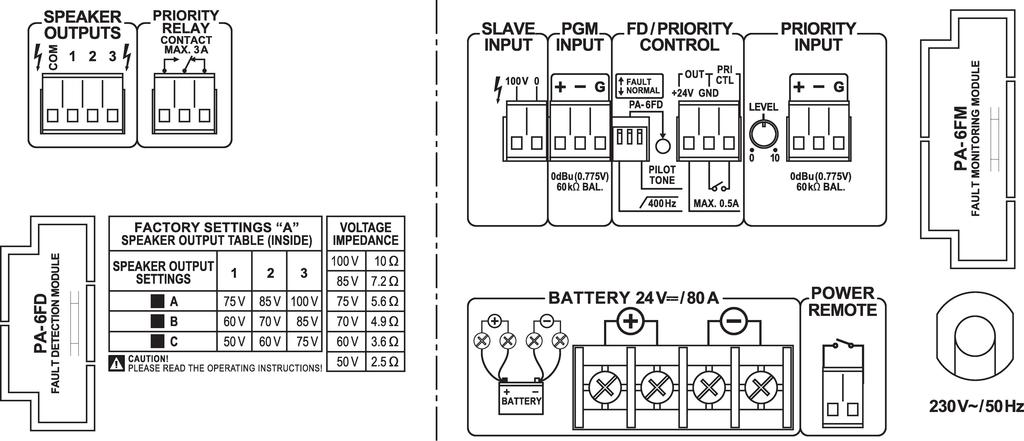

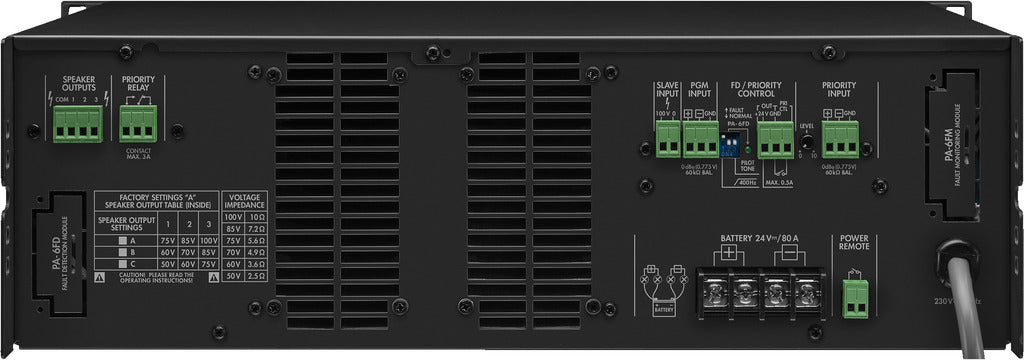

Modular Expansion: Two rear-panel insertion facilities are available for optional modules like the PA-6FD fault detection module and the PA-6FM fault monitoring module, allowing you to customize your system's surveillance.
Remote Control: A connection for an external on/off switch (remote start) provides convenient remote operation capability.
System Status: Clear LED indicators display crucial operating status, including fault, protect, clip, signal, and priority.
Thermal Management: A temperature-controlled, continuously adjustable fan ensures efficient cooling and long-term reliability under heavy use.
With its durable construction and comprehensive feature set, the Monacor PA-1960 is the dependable solution for demanding public address and large-scale audio applications.
| PA-1960 | |
|---|---|
| Peak output power | 960 W |
| Power rating | 960 W |
| Power rating at 100 V | 960 W |
| Power rating at 70 V | 960 W |
| Output impedance | 75 V/5.6 Ω, 85 V/7.2 Ω, 100 V/10 Ω |
| Channels | 1 |
| Inputs | 0.775 V/60 kΩ, bal. |
| Frequency range | 35-20,000 Hz |
| S/N ratio | > 100 dB |
| THD | < 0.4% |
| Power supply | ˜ 230 V/50 Hz/2,600 VA,
DC 24Â V/80Â A |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 2,600 VA |
| Standby current | DC 24 V |
| Operating voltage (possible alternative) | 80 A |
| Admiss. ambient temp. | 0-40 °C |
| Width | 483 mm |
| Height | 133 mm |
| Depth | 374 mm |
| Rack units, RU | 3 |
| Weight | 25 kg |
| Connections | screw contacts (inputs)
screw contacts (speakers) |
| Packaging dimensions (W x H x L) | 0.54 x 0.21 x 0.48 m |
| Gross weight | 28.26 kg |
| Net weight | 26.3 kg |
