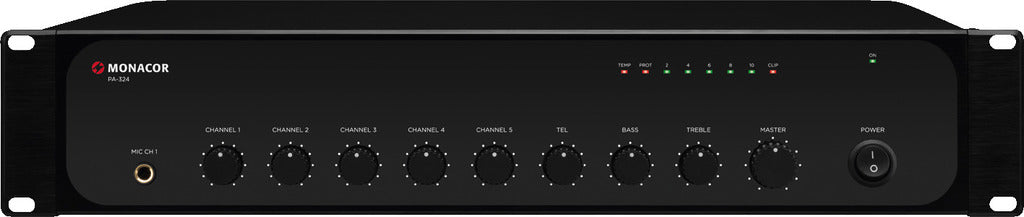

The Monacor PA-324 is a high-performance mono PA mixing amplifier delivering a robust 240 W of continuous power (340 W peak), engineered for reliable and flexible audio distribution in professional environments like schools, retail spaces, conference rooms, and houses of worship.
Â
Â
Powerful Output: Features 240 W RMS power output compatible with various speaker systems, including 4-16 Ω, 70 V, and 100 V line options via secure screw terminals, ensuring high flexibility for installation.
Comprehensive Inputs: Offers three microphone inputs (including one balanced) and two stereo line inputs for connecting a wide array of audio sources like auxiliary players, media devices, and professional microphones.
Priority and Talkover: Mic 1/Line 1 input features an adjustable priority circuit with automatic talkover, ensuring important announcements or emergency messages override other background audio seamlessly.
Specialised Connectivity: Includes a dedicated telephone input for integration with telephone systems that have an audio output, making it ideal for communication and paging.
Condenser Microphone Support: Provides switchable 48 V phantom power for channel 1, allowing the use of professional condenser microphones.
Audio Control: Precision 2-way tone control (Bass/Treble) and individual input/output level controls allow you to tailor the sound to the specific acoustic environment.
Rack-Mountable Design: Housed in a durable 19-inch, 2U steel chassis and supplied with mounting brackets for easy and secure integration into standard equipment racks.
The Monacor PA-324 combines high power, extensive input/output options, and essential priority functions, making it the central hub for any demanding Public Address system.
| PA-324 | |
|---|---|
| Peak output power | 340 W |
| Power rating | 240 W |
| Power rating at 4 Ω | 240 W |
| Power rating at 8 Ω | 120 W |
| Power rating at 16 Ω | 60 W |
| Power rating at 100 V | 240 W |
| Power rating at 70 V | 240 W |
| Channels | input channels:1
output channels: 6 |
| Inputs | 5 mV/600 Ω (mic),
350 mV/10 kΩ (aux), 1 V/10 kΩ (telephone) |
| Frequency range | 50-16,000 Hz |
| Equalizer bass | ± 10 dB/100 Hz |
| Equalizer treble | ± 10 dB/10 kHz |
| S/N ratio | 66Â dB (mic)
80Â dB (aux) |
| THD | < 0.5% |
| Phantom power | 48 V |
| Power supply | ˜ 230 V/50 Hz/740 VA |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 740 VA |
| Admiss. ambient temp. | 0-40 °C |
| Width | 430 mm |
| Height | 88 mm |
| Depth | 380 mm |
| Rack units, RU | 2 |
| Weight | 11.6 kg |

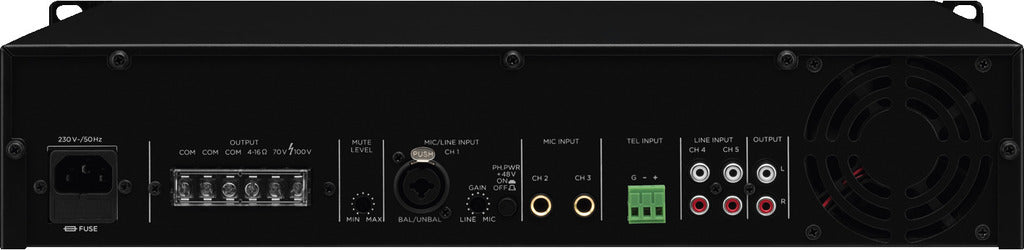

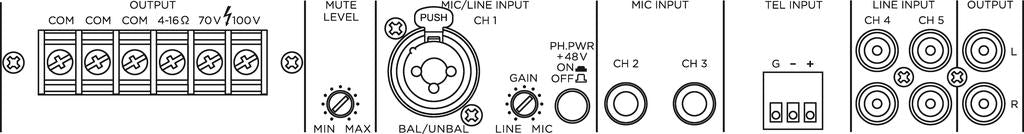

| Connections | 1 x 6.3Â mm/XLR (combo),
1 x 6.3Â mm jack (mic 1), 2 x 6.3Â mm jack (mic 2-3), 2 x RCA L/R (aux 1-2), screw terminal (telephone), 1 x RCA L/R (line out), screw contacts (speakers) |
| Packaging dimensions (W x H x L) | 0.505 x 0.185 x 0.54 m |
| Gross weight | 14.68 kg |
| Net weight | 11.63 kg |
