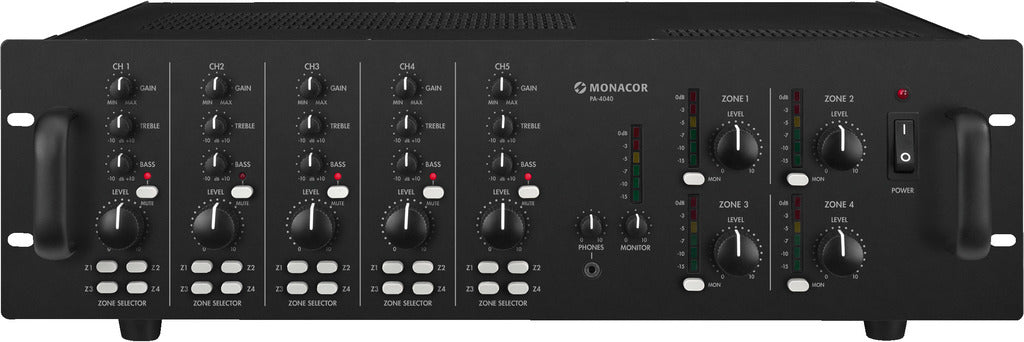

🔊 Monacor PA-4040: 4-Zone Matrix Mixing Amplifier
The Monacor PA-4040 is a professional 4-zone matrix mixing amplifier, offering a flexible and powerful solution for comprehensive multi-room Public Address (PA) applications in commercial spaces like bars, schools, offices, and retail environments.
Â
Â
Â
Â
4 Independent Zones: Delivers 40 W RMS (4 x 65 W peak) of power per zone, with individual volume and EQ control (gain, 2-way tone control) for precise audio management in different areas.
Flexible Speaker Compatibility: Supports both 100 V line and 4/8 Ω low-impedance operations, providing versatility for various speaker setups.
Â
Â
5 Input Channels: Features 3 microphone/line inputs via combo jacks and 2 stereo line inputs via RCA jacks, allowing connection of microphones, smartphones, CD players, and other sources.
Matrix Routing: Each input channel includes a routing switch to easily direct the audio to any of the four zones.
Phantom Power: Switchable +15 V phantom power is available for condenser microphones.
Â
Â
Priority Function: A switchable priority function for Channel 1 allows automatic attenuation of other signals for announcements.
Independent Paging: A dedicated paging input can be routed to all zones for announcements or emergency signals.
Integrated Limiter: Ensures perfect utilization of amplifier capacity and reliable protection for connected speakers.
Â
Â
Headphone Output: Adjustable headphone output for convenient audio monitoring.
Monitor Output: Connection for dedicated monitor speakers.
Line Outputs: Zone and monitor line outputs are available for connecting additional amplifiers or external recorders.
Visual Feedback: Level control via VU meters for zone and monitor outputs.
Â
Â
Rack-Mountable: The unit is designed for 3U 19" rack installation for professional integration.
Cooling: Equipped with a temperature-controlled, continuously adjustable fan for reliable performance.
The Monacor PA-4040 is engineered for seamless installation and robust operation, giving you precise, professional control over your multi-room audio system.
| PA-4040 | |
|---|---|
| Peak output power | 4 x 65 W |
| Power rating | 4 x 40 W |
| Power rating at 4 Ω | 4 x 40 W |
| Power rating at 8 Ω | 4 x 40 W |
| Power rating at 100 V | 4 x 40 W |
| Power rating at 70 V | 4 x 40 W |
| Power rating at 25 V | 4 x 40 W |
| Channels | 5 |
| Zones | 4 |
| Inputs | 5 mV/4 kΩ, 100 mV/10 kΩ (mic/line),
100 mV/30 kΩ (line) |
| Frequency range | 50-17,000 Hz |
| Integrated limiter | yes |
| Equalizer bass | ± 10 dB/100 Hz |
| Equalizer treble | ± 10 dB/10 kHz |
| S/N ratio | > 65 dB (mic),
> 75 dB (line) |
| THD | < 1% |
| Phantom power | 15 V |
| Power supply | ˜ 230 V/50 Hz/450 VA |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 450 VA |
| Admiss. ambient temp. | 0-40 °C |
| Width | 482 mm |
| Height | 133 mm |
| Depth | 310 mm |
| Rack units, RU | 3 |
| Weight | 15 kg |

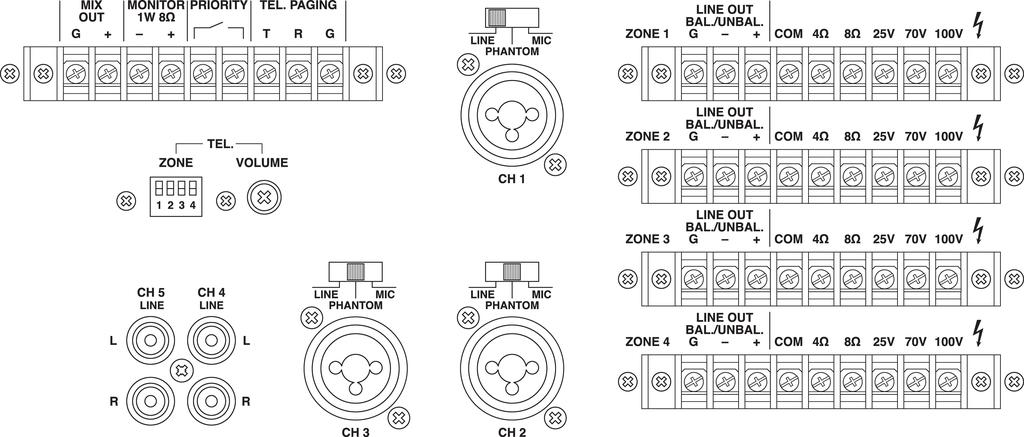

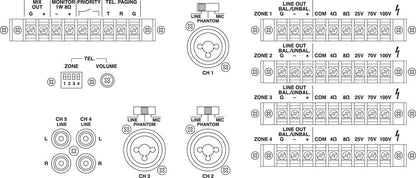

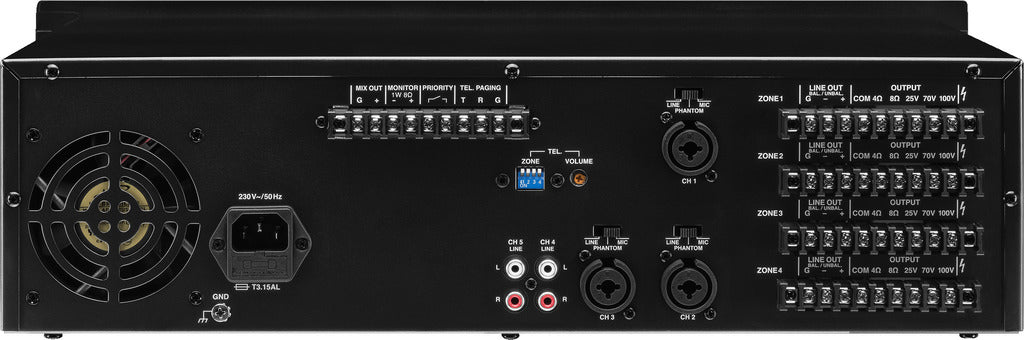

| Connections | 3 x combo 6.3Â mm/XLR (mic/line),
2 x RCA L/R (line), screw terminal (mix out), screw contacts (priority), 3.5 mm stereo jack (headphones), screw contacts (speaker zone), screw contacts (monitor speakers) |
| Packaging dimensions (W x H x L) | 0.43 x 0.23 x 0.56 m |
| Gross weight | 18.46 kg |
| Net weight | 15.92 kg |
