The flexible routing solution for multi-room PA applications.

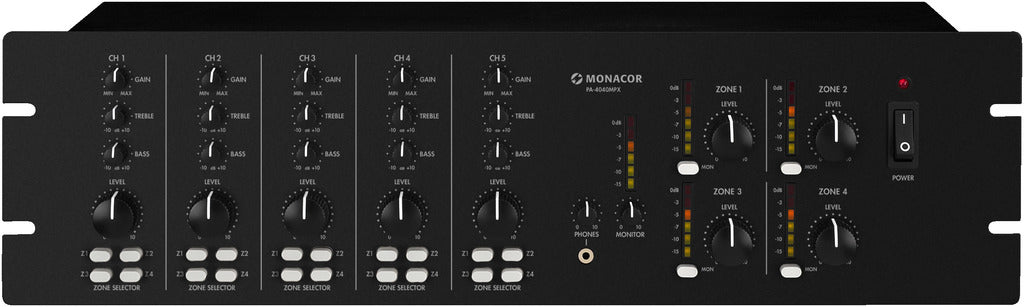

The Monacor PA-4040MPX is a powerful 5-channel, 4-zone pre-amplifier mixer designed for general multi-room Public Address (PA) systems. Perfect for venues like bars, pubs, clubs, offices, or retail spaces, it allows you to independently route and control audio sources across up to four different zones or areas.
Â
Â
4-Zone Independent Routing: Route any of the 5 input channels to any or all of the four zone outputs, giving you ultimate control over your venue's audio distribution.
5 Versatile Input Channels:
3 Microphone/Line Inputs: Via robust combination (combo) jacks (XLR/6.3mm), including switchable +15 V phantom power for condenser microphones.
2 Stereo Line Inputs: Via RCA jacks for connecting media players, tuners, or other line-level sources.
Individual Channel Control: Each input features its own gain control, 2-way tone control (Bass/Treble), and dedicated zone routing switches.
Priority Function: Channel 1 features a switchable priority function, ideal for essential announcements, as it can automatically mute other audio for clear communication.
Paging Capability: An independent paging input with zone routing allows for dedicated announcements separate from the main inputs.
Professional Monitoring: Includes an adjustable headphone output and a connection for a monitor speaker, with level control via dual VU meters for zones and the monitor output.
Power Flexibility: Operates on standard mains voltage (~230 V) or can be powered by 24 V DC emergency power for uninterrupted operation.
Rack Mountable: The unit is designed for professional installation, fitting into a standard 19-inch rack (3 RU).
The PA-4040MPX gives you the professional control needed to manage varied audio requirements across multiple spaces with precision and ease.
| PA-4040MPX | |
|---|---|
| Channels | 5 |
| Zones | 4 |
| Inputs | 5 mV/4 kΩ, 100 mV/10 kΩ (mic/line),
100 mV/30 kΩ (line) |
| Frequency range | 50-17,000Â Hz |
| Equalizer bass | ± 10 dB/100 Hz |
| Equalizer treble | ± 10 dB/10 kHz |
| S/N ratio | > 65Â dB (mic),
> 75 dB (line) |
| THD | < 1% |
| Phantom power | 15 V |
| Power supply | ˜ 230 V/50 Hz/20 VA,
DC 24Â V/600Â mA |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 20 VA |
| Operating voltage (possible alternative) | DC 24 V |
| Power supply (possible alternative) | DC 600 mA |
| Admiss. ambient temp. | 0-40 °C |
| Width | 482 mm |
| Height | 133 mm |
| Depth | 220 mm |
| Rack units, RU | 3 |
| Weight | 4.5 kg |
| Connections | 3 x combo 6.3 mm/XLR (mic/line),
2 x RCA L/R (line), 4 x plug-in screw terminal (zones), screw contacts (monitor speakers), screw contacts (mix out), screw contacts (paging), screw contacts (priority) |
| Packaging dimensions (W x H x L) | 0.28 x 0.22 x 0.57 m |
| Gross weight | 5.68 kg |
| Net weight | 4.7 kg |
