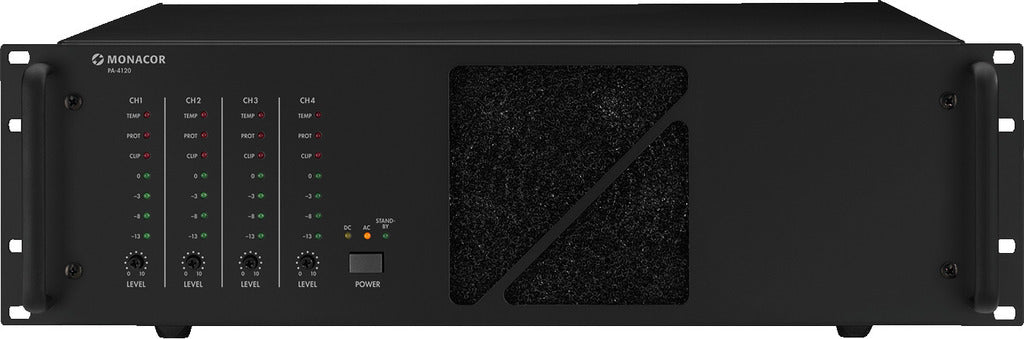

MONACOR PA-4120 PA power amplifier 4 x 120 W

MONACOR PA-4120 PA power amplifier 4 x 120 W

RRP

£1,114.80

inc VAT

£1,114.80
Sold out
Tax included. Shipping calculated at checkout.
🔊 MONACOR PA-4120: 4-Channel Professional PA Power Amplifier   The MONACOR PA-4120 is a robust and versatile 4-channel PA power amplifier engineered for professional audio installations requiring reliable, multi-zone sound...
Vendor: MONACOR
SKU: PA-4120

Product Specification

Access Manufacturer's website for detailed product specifications and documents.

Want to see trade pricing? Register for a trade account!

You can apply for a trade account with us by either;

1. Registering at our B2B Trade Portal - Our dedicated online trade portal gives you a seamless buying experience. See trade pricing, view stock availability, place orders and check your order status.

2. Completing a trade application form and returning via email to sales@epicaudio.co.uk.

Project Enquiry

We specialise in commercial projects offering a comprehensive commercial project service, collaborating with you to design, supply, and install solutions that meet your specifications, timeline, and budget.

Get in touch today to discuss your requirements!

View full product details

🔊 MONACOR PA-4120: 4-Channel Professional PA Power Amplifier



The MONACOR PA-4120 is a robust and versatile 4-channel PA power amplifier engineered for professional audio installations requiring reliable, multi-zone sound distribution. Delivering 4 x 120 W of power, this amplifier is the ideal solution for large commercial environments such as shopping centers, sports grounds, airports, hospitals, and universities that rely on high-quality public address and background music systems.



✨ Key Features



  • Powerful Multi-Zone Audio: Features 4 independent channels with a total power rating of 480 W (4 x 120 W), perfect for distributing audio across up to four separate areas or zones.

  • Versatile Output Options: Supports both 100 V line technology (as well as 70 V, 50 V, and 22 V taps) and low-impedance 4 ohms operation on each channel, offering maximum compatibility with various speaker systems (ceiling, wall, or horn speakers).

  • High Reliability & Safety: Includes an array of protective features:

    • Temperature-controlled fan for constant, optimal cooling.

    • LED indicators for clip, protect, overtemperature, and output level for quick status monitoring.

  • Dual Power Supply: Designed for mission-critical applications, the PA-4120 operates on either mains power (230 V/50 Hz) or a 24 V emergency power supply (DC), ensuring uninterrupted service during a power outage.

  • Flexible Control: Features routing switches for parallel operation on two channels each, allowing for greater system configuration flexibility. Connections are also provided for an external on/off switch.

Technical specifications PA-4120

PA-4120
Peak output power 480 W
Power rating 480 W
Power rating at 4 Ω 4 x 120 W
Power rating at 100 V 4 x 120 W
Power rating at 70 V 4 x 120 W
Output impedance 22 V/4 Ω, 50 V/21 Ω, 70 V/41 Ω, 100 V/83 Ω
Channels 4
Inputs 1.2 V, bal.
Frequency range 55-17,000 Hz
S/N ratio > 90 dB(A)
THD < 1%
Power supply ˜ 230 V/50 Hz/1,400 VA,

DC 24 V/60 A
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 1,400 VA
Operating voltage (possible alternative) DC 24 V
Power supply (possible alternative) DC 60 A
Admiss. ambient temp. 0-40 °C
Width 483 mm
Height 133 mm
Depth 370 mm
Rack units, RU 3
Weight 25 kg

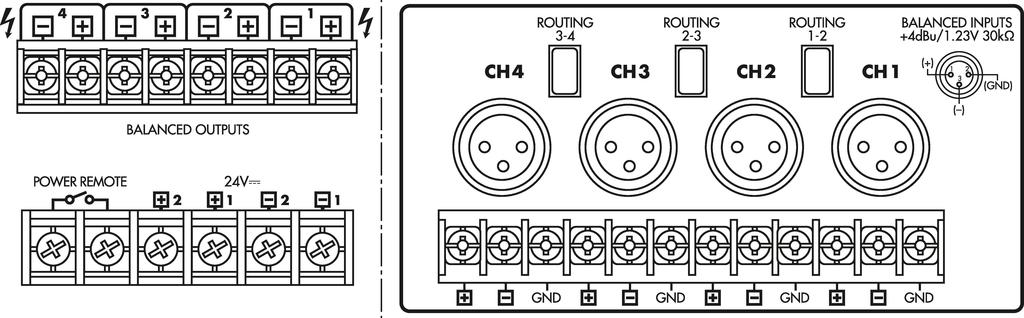

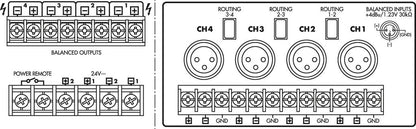

Connections 4 x XLR (inputs),

screw terminals (speakers)
Packaging dimensions (W x H x L) 0.48 x 0.22 x 0.54 m
Gross weight 27.6 kg
Net weight 25.68 kg
