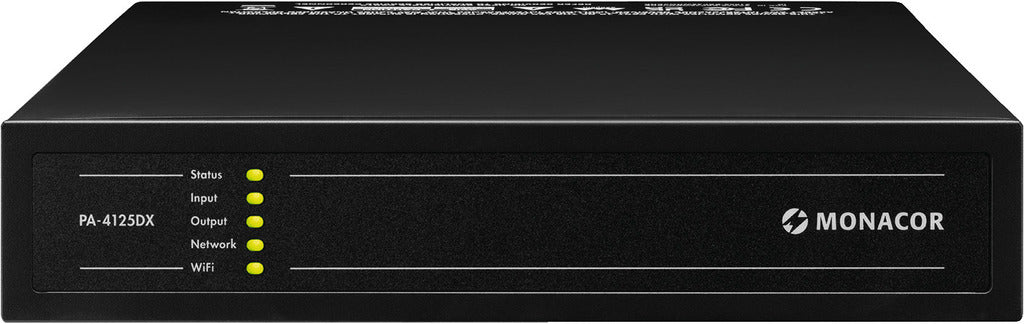

The Monacor PA-4125DX is a 4-zone multifunctional amplifier featuring Class D technology and an integrated Digital Signal Processor (DSP). It is designed for general multi-room Public Address (PA) applications, offering flexibility in output configuration and network control, and is highly similar to the PA-8125DX but with fewer zones.
4-zone multifunctional mixing amplifier, class D technology with DSP and professional features for general multi-room PA applications. Clearly arranged graphical user interface HTML5 with extensive functions. Convenient operation via web browser regardless of the operating system used by the end-user device (PC, Mac, iOS, Android, etc.).
4 x 125 W per zone (4/8 Ω) or 2 x 250 W (100 V)
100 V or 4/8 Ω operation

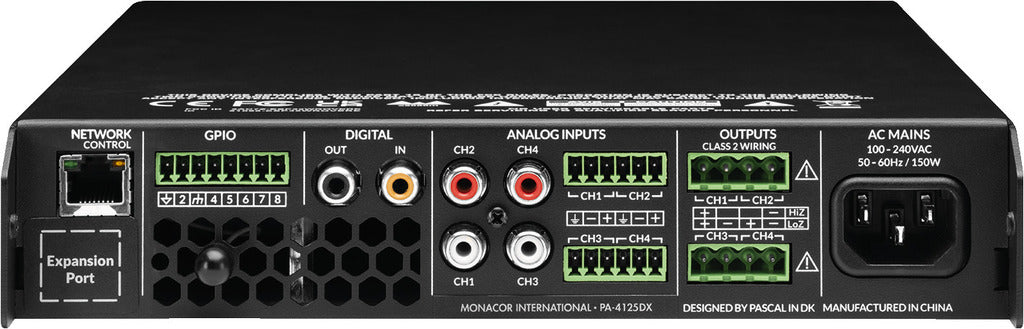

4 analogue inputs mic/line via plug-in screw terminal (bal.) or RCA jacks
1 digital input/output via S/PDIF RCA jacks
4 zone outputs (4/8 Ω) or 2 zone outputs (100 V) via plug-in screw terminal
GPIO connection for wall modules, external volume control, external mute switch or power switch, etc.
Network connection via LAN or WLAN

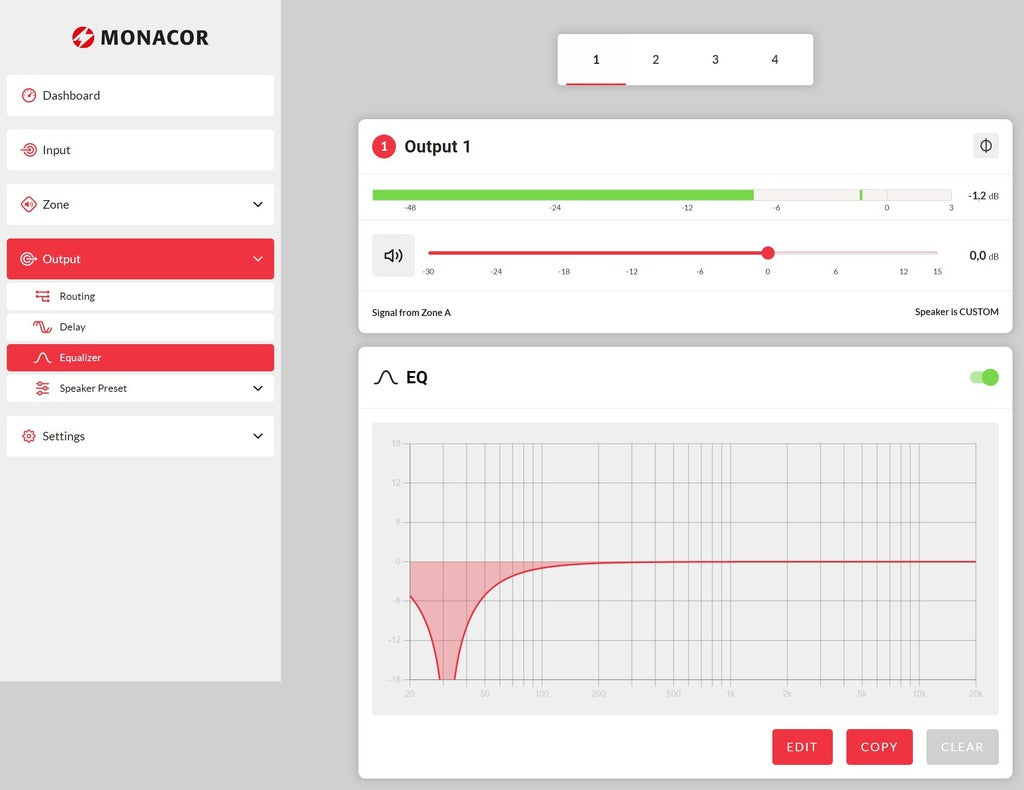

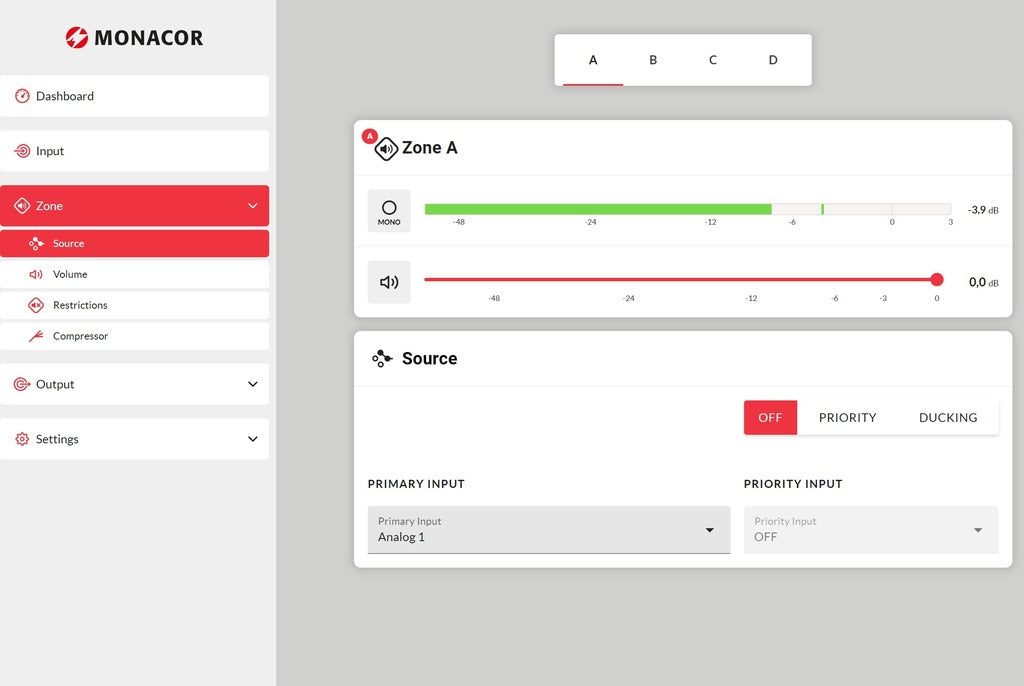

Convenient operation and configuration via user interface HTML5
Various high pass/low pass filters
Parametric equalizer
Output with separate FIR filters
Speaker matching: 10 ms
Switchable output phase
Adjustable compressor/limiter
Adjustable delay
Mix inputs
Talkover with priority routing
Built-in sine wave noise generator
Parametric 5-band equalizer for input
Protected against short circuit, DC voltage overload, undervoltage, excess temperature and overload
Technical specifications PA-4125DX PA-4125DX Power rating at 4 Ω 4 x 125 W Power rating at 8 Ω 4 x 125 W Power rating at 100 V 2 x 250 W Channels 5 Zones 4 Inputs 1.2 V, bal. (line), 1.9 mV, bal. (mic) Integrated limiter yes Equalizer bass via DSP Equalizer midrange via DSP Equalizer treble via DSP S/N ratio > 106 dB THD < 0.05% Power supply ˜ 100-240 V/50-60 Hz/150 W Mains voltage ~ 100-240 V Mains frequency 50-60 Hz Power consumption, operation 150 W, 1/8 output power Power consumption, standby < 0.5 W Admiss. ambient temp. 0-40 °C Width 220 mm Height 44 mm Depth 320 mm Rack units, RU 1 Weight 1.95 kg Connections 4 x RCA line plug-in screw terminal (mic/line) 2 x RCA (digital in/out) plug-in screw terminal GPIO plug-in screw terminal speakers 1 x RJ45 network connection Packing dimensions (W x H x L) 0.3 x 0.09 x 0.5 m Gross weight 2.8 kg Net weight 2.16 kg
