Dante® is a network protocol based on layer 3 IP technology which provides a low-latency, high-precision and cost-effective solution for point-to-point audio connections. Dante® technology can be used for the transmission of high-precision clock signals and audio signals. It allows for complex ethernet routing to ensure a perfect sound effect, to solve problems resulting from complex cabling known from traditional audio transmissions and to reduce costs. There is no special configuration required for an integration into an existing network.

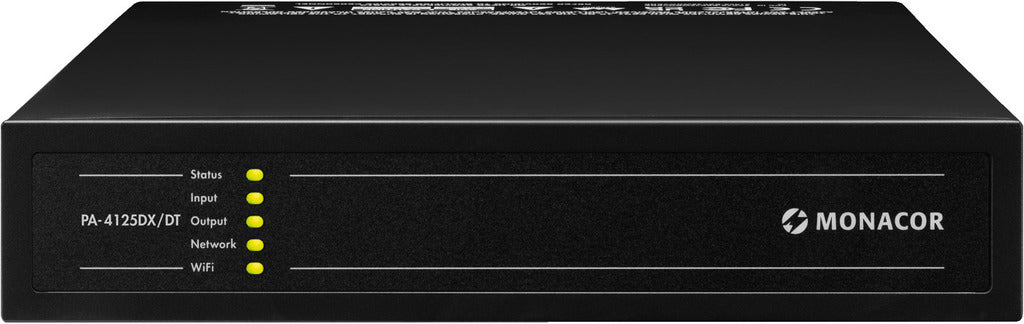

Dante®-enabled 4-zone multifunctional mixing amplifier class D technology with DSP and professional features for general multi-room PA applications.

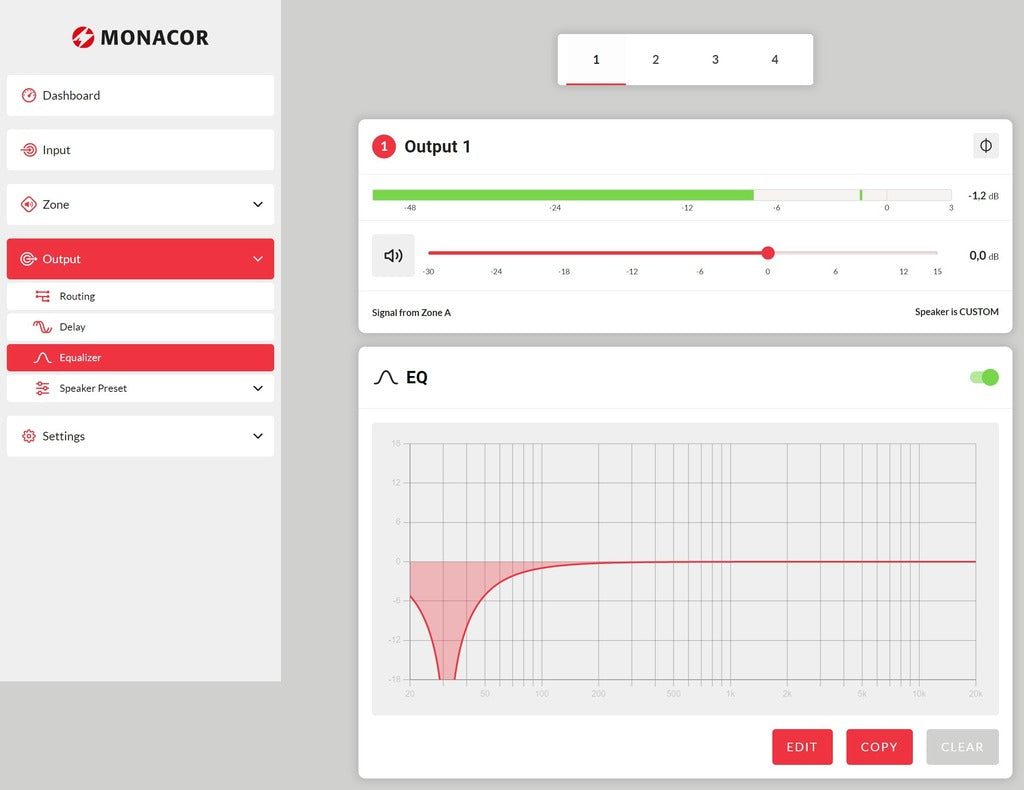

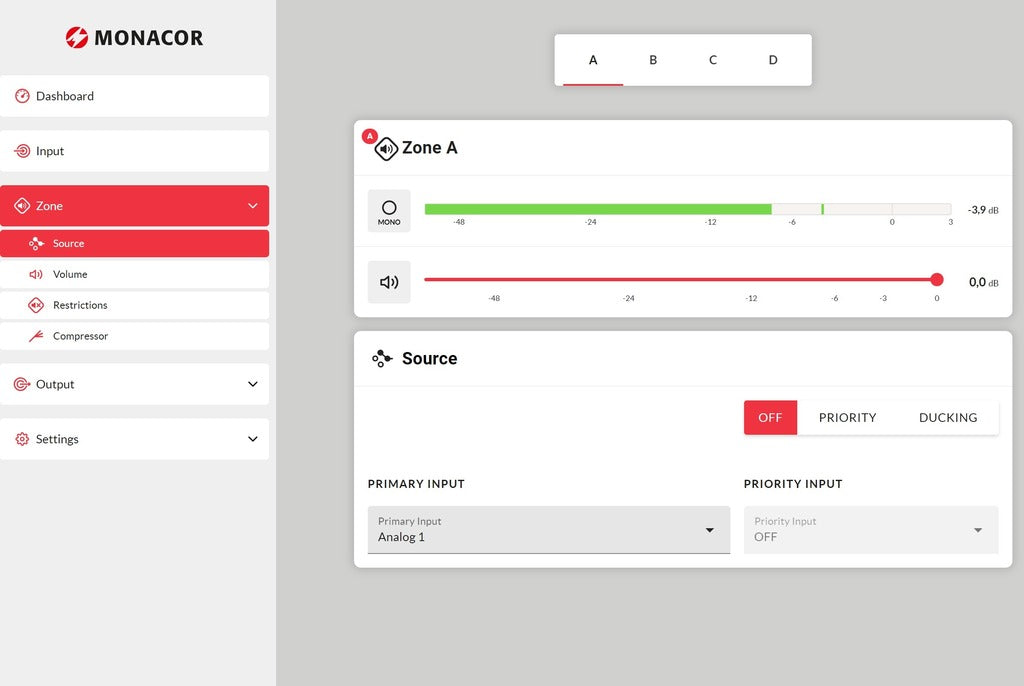

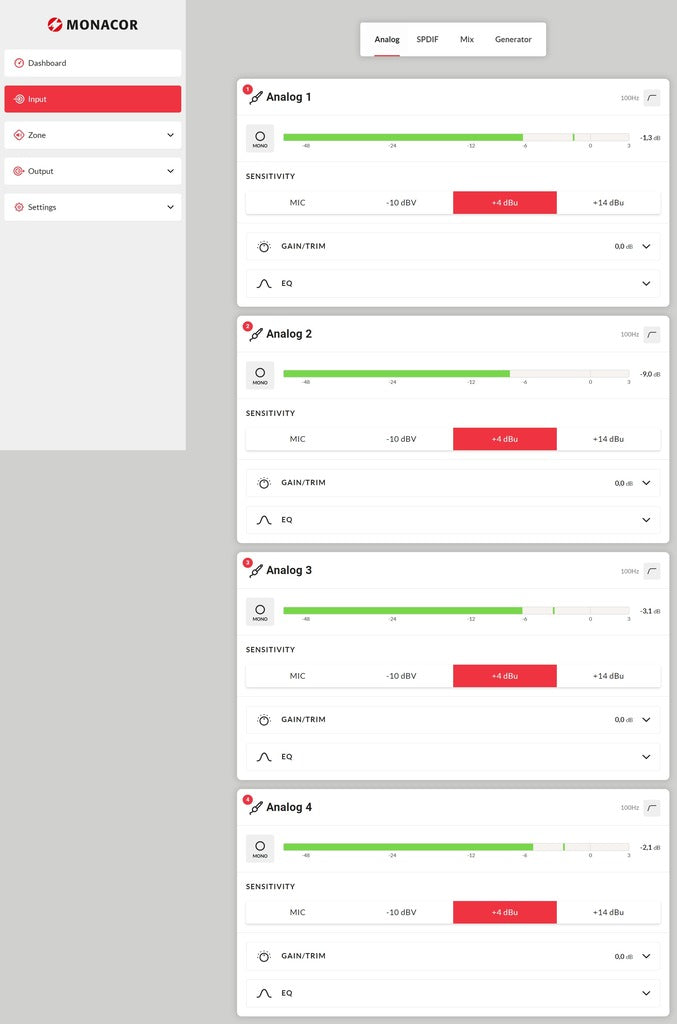

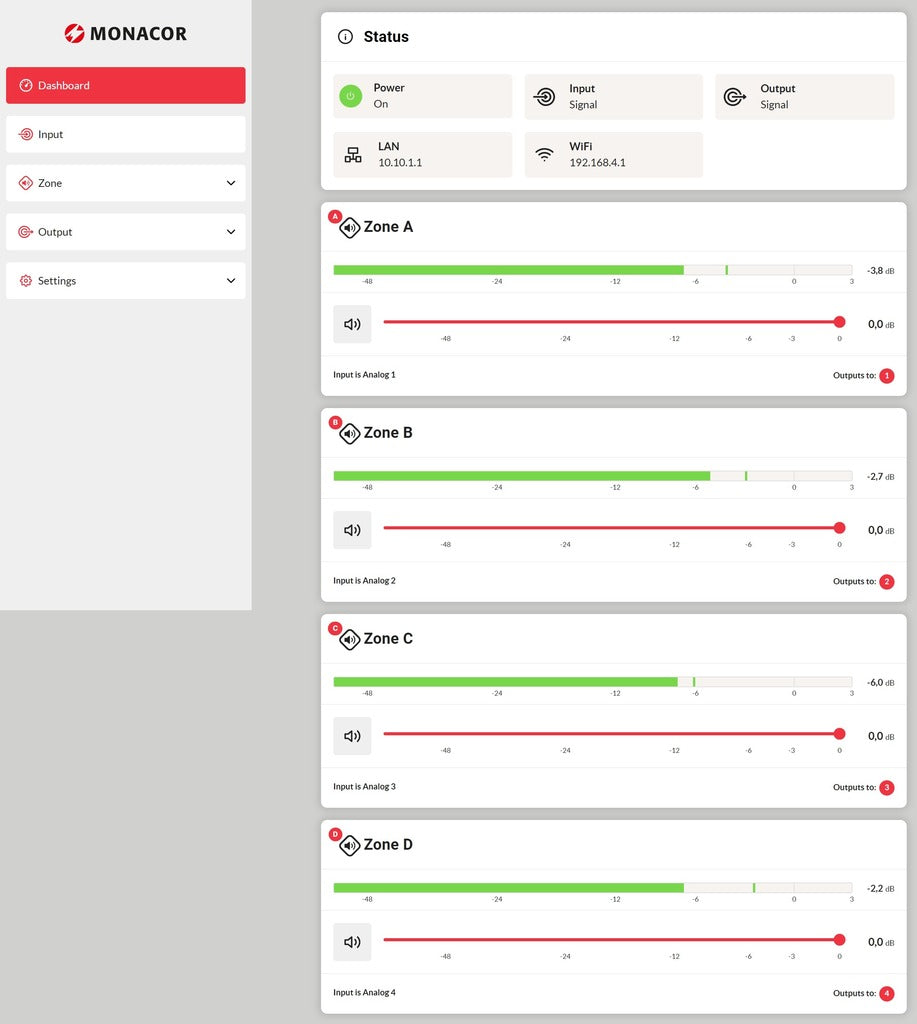

Clearly arranged graphical user interface HTML5 with extensive functions. Convenient operation via web browser regardless of the operating system used by the end-user device (PC, Mac, iOS, Android, etc.).

Dante® interface (4 transmission channels, 4 receiver channels)
4 x 125 W per zone (4/8 Ω) or 2 x 250 W (100 V)
100 V or 4/8 Ω operation

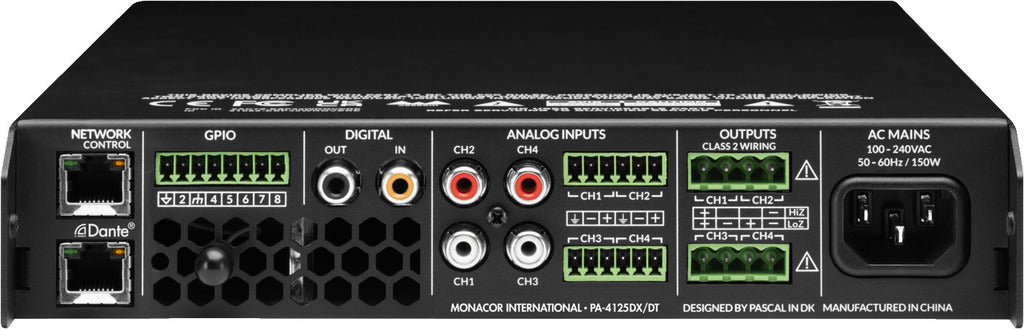

4 analogue inputs mic/line via plug-in screw terminal (bal.) or RCA jacks
1 digital input/output via S/PDIF RCA jacks
4 outputs (4/8 Ω) or 2 zone outputs (100 V) via plug-in screw terminal
GPIO interface for remote volume control and standby
Network connection via LAN or WLAN
Convenient operation and configuration via user interface HTML5
High-pass/low-pass filter with various filters
Parametric equalizer
Output with separate FIR filters
Speaker matching: 10 ms
Switchable output phase
Adjustable compressor/limiter
Adjustable delay
Mix inputs
Talkover with priority routing
Built-in sine wave noise generator
Parametric 5-band equalizer for input
Protected against short circuit, DC voltage overload, undervoltage, excess temperature and overload

System requirements Dante®: Windows 7/8.1/10 or MacOS 10.9.5/10.10.5/10.1

The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd.
