The Monacor PA-4240 is a high-performance, robust 4-channel PA power amplifier engineered for demanding public address (PA) and background music (BGM) systems in large commercial environments like shopping centers, airports, sports grounds, and educational institutions. Delivering a formidable 960 W of total power, this amplifier ensures clear, consistent, and reliable audio coverage across extensive areas.
High Power Output: Features 4 separate channels, each providing 240 W of power (at 4 ohms or 100 V line) for significant audio distribution capabilities.
Versatile Output Options: Supports both low-impedance (4 ohms) and high-voltage 100 V line speaker systems, as well as 70 V and 50 V lines, offering maximum flexibility for diverse speaker configurations.
Parallel Channel Operation: Includes routing switches to allow two pairs of channels to operate in parallel, simplifying wiring and increasing configuration options.
Dual Power Supply: Designed for continuous operation with support for both mains power (230 V/ 50 Hz) and a 24 V DC emergency power input, ensuring uninterrupted performance during a power outage for critical safety announcements.
Professional Rackmount: Housed in a durable 19-inch, 3U steel chassis, making it ideal for standard rack-mounted installations in professional audio setups.

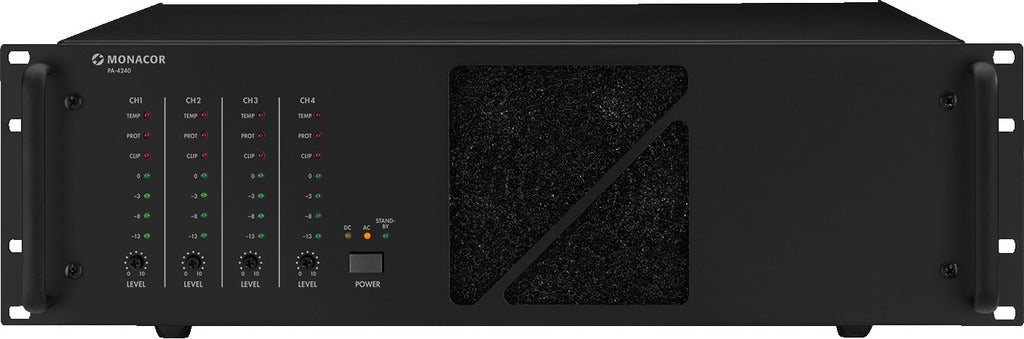

Comprehensive Monitoring: The front panel is equipped with LED indicators for clip, protection, over-temperature, and output level, enabling quick system diagnostics and operational oversight.
Optimized Cooling: A temperature-controlled fan ensures efficient cooling, maintaining optimal performance even during prolonged, continuous operation.
External Control: Features a connection for an external on/off switch, allowing for integration with central control or fire alarm systems.
The Monacor PA-4240 provides high-quality, low-distortion amplification (< 1% THD) and is the perfect, powerful core for any large-scale professional audio installation.
| PA-4240 | |
|---|---|
| Peak output power | 960 W |
| Power rating | 960 W |
| Power rating at 4 Ω | 4 x 240 W |
| Power rating at 100 V | 4 x 240 W |
| Power rating at 70 V | 4 x 240 W |
| Output impedance | 31 V/4 Ω, 50 V/10.4 Ω, 70 V/20 Ω, 100 V/42 Ω |
| Channels | 4 |
| Inputs | 1.2 V, bal. |
| Frequency range | 55-17,000 Hz |
| S/N ratio | > 90 dB(A) |
| THD | < 1% |
| Power supply | ˜ 230 V/50 Hz/2,720 VA,
DC 24 V/113 A |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 2,720 VA |
| Operating voltage (possible alternative) | DC 24 V |
| Power supply (possible alternative) | DC 113 A |
| Admiss. ambient temp. | 0-40 °C |
| Width | 483 mm |
| Height | 133 mm |
| Depth | 370 mm |
| Rack units, RU | 3 |
| Weight | 28 kg |

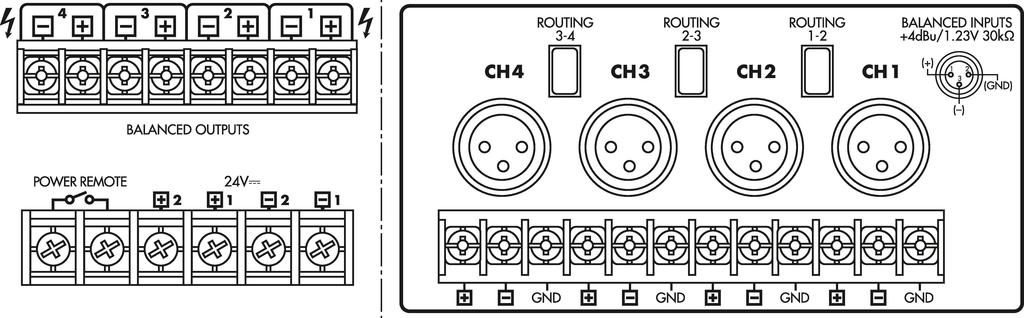

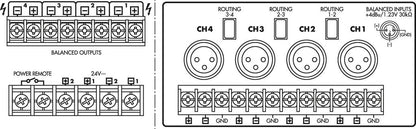

| Connections | 4 x XLR (inputs),
screw contacts (speakers) |
| Packaging dimensions (W x H x L) | 0.55 x 0.21 x 0.49 m |
| Gross weight | 30.54 kg |
| Net weight | 28.62 kg |
