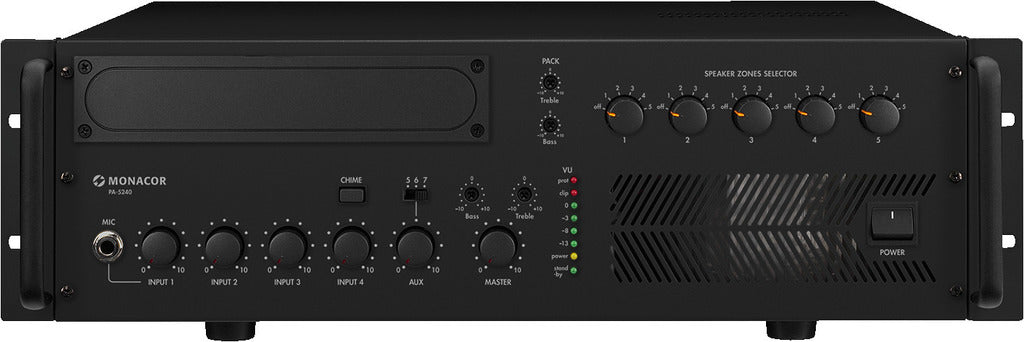

The Monacor PA-5240 is a versatile and reliable 5-zone mono PA mixing amplifier, delivering 240W RMS of power for professional audio installations in multi-room environments. Ideal for commercial buildings, educational institutions, or houses of worship, this amplifier allows for complete, customized audio distribution across up to five separate areas.
Â
Â
5 Individually Controlled Zones: Distribute audio to five different zones, with independent volume control for each area directly from the front panel.
Powerful Output: Features a robust 240 W power rating, compatible with both 100 V line speaker systems and 8 ohms passive speakers.
Priority and Alert Functions: Includes a highly functional automatic mute feature to ensure announcements override background music seamlessly. It also features a built-in chime (selectable 2-tone or 4-tone) and a wailing sound/siren, which can be activated manually or via an external push-button for emergency announcements.
Flexible Inputs: Equipped with multiple microphone and line inputs, including inputs for dedicated zone paging (PA-5000PTT desktop microphone) and an 18 V phantom power supply for electret microphones.
Emergency Power Ready: Supports operation on a 24 V DC emergency power supply, ensuring continuous functionality during power outages.
Modular Design: Features insertion points for optional function modules, such as a Digital Message and Timer Insertion (PA-1120DMT), RDS tuner/CD player (PA-1140RCD), or Internet Radio DAB+/FM RDS tuner (PA-1200IRD), allowing you to expand its capabilities as needed.
| PA-5240 | |
|---|---|
| Peak output power | 340 W |
| Power rating | 240 W |
| Power rating at 8 Ω | 240 W |
| Power rating at 100 V | 240 W |
| Channels | 5 |
| Zones | 5 |
| Inputs | 2.5 mV/2 kΩ (mic 1),
2.5 mV/2 kΩ, 0.3 V/200 kΩ (mic/line 2-4), 0.3 V/5 kΩ (line 5-7), 0.775 V/10 kΩ (preamplifier) |
| Frequency range | 55-16,000 Hz |
| Equalizer bass | ± 10 dB/100 Hz |
| Equalizer treble | ± 10 dB/10 kHz |
| S/N ratio | > 70 dB (mic),
> 80 dB (line) |
| THD | < 1% |
| Phantom power | 18 V |
| Power supply | ˜ 230 V/50 Hz/750 VA,
DCÂ 24 V/20 A |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 750 VA |
| Operating voltage (possible alternative) | DC 24 V |
| Power supply (possible alternative) | DC 20 A |
| Admiss. ambient temp. | 0-40 °C |
| Width | 482 mm |
| Height | 133 mm |
| Depth | 352 mm |
| Rack units, RU | 3 |
| Weight | 16 kg |

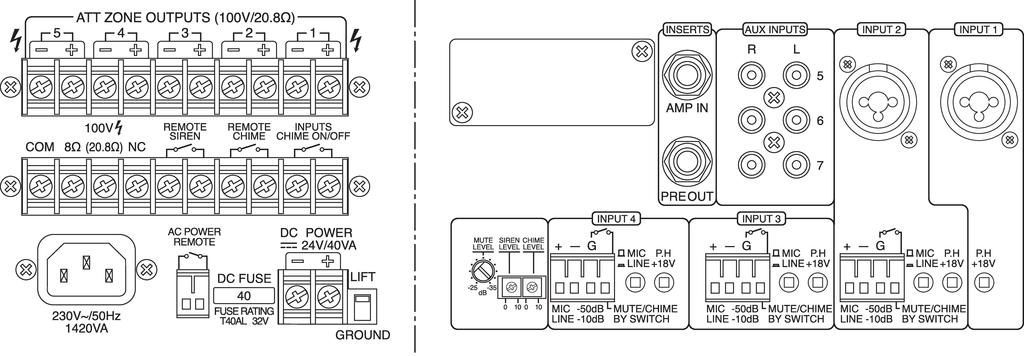

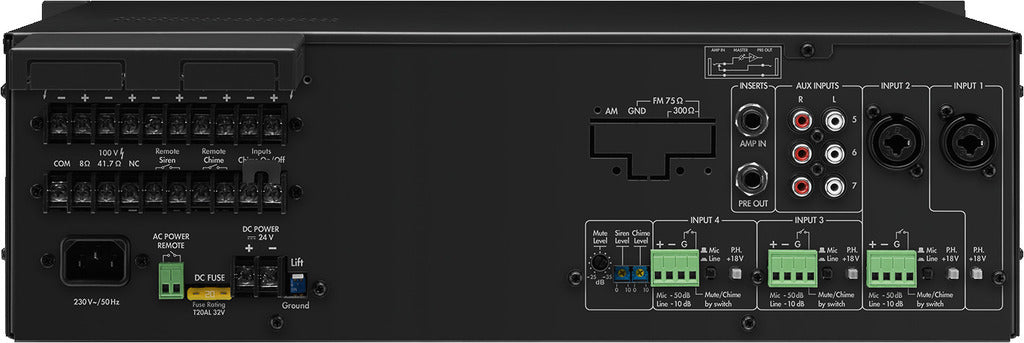

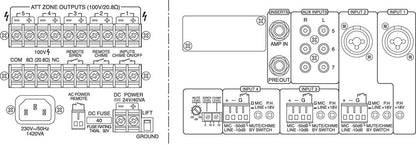

| Connections | 2 x 6.3Â mm jack (mic),
1 x combo 6.3Â mm/XLR (mic/line), 3 x RCA L/R (line), 3 x plug-in terminals (line), 1 x 6.3 mm jack (preamplifier input), screw contacts (push-to-talk mic), screw contacts (zone paging mic), 1 x 6.3 mm jack (preamplifier output), screw contacts (chime button), screw contacts (speakers) |
| Packaging dimensions (W x H x L) | 0.54 x 0.21 x 0.48 m |
| Gross weight | 18.32 kg |
| Net weight | 16.38 kg |
