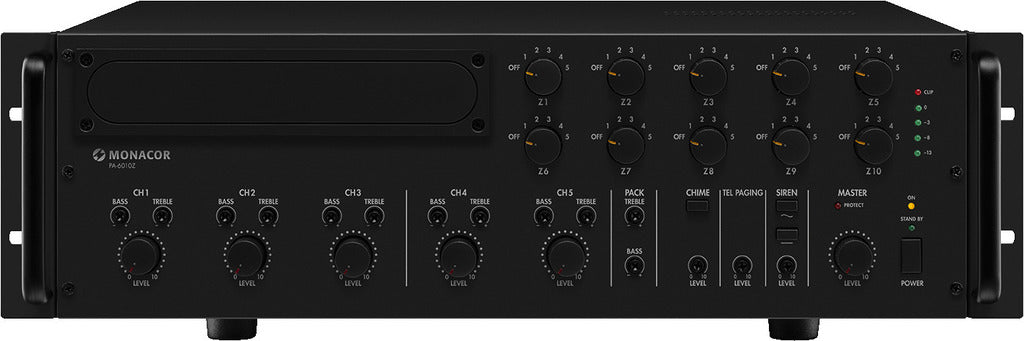

MONACOR PA-6010Z: 10-Zone Mono PA Mixing Amplifier
The MONACOR PA-6010Z is a high-power, multi-zone PA mixing amplifier designed for complex public address systems that require zone control, priority announcements, and integration with various audio sources.
Key Features:
High Power Output: Delivers a robust power rating of 600 W (at 4 Ω, 70 V, or 100 V).
Multi-Zone Control: Features 10 independently controllable zones for routing audio to specific areas.
Dedicated Announcement Amplifier: Includes an additional 60 W amplifier specifically for separate announcements via the optional zone paging microphone (PA-2400RC), providing dedicated power for priority paging when 2 or fewer zones are selected.
Flexible Inputs:
3 Microphone/Line Inputs: Via combined 6.3 mm/XLR jacks.
2 Stereo Line Inputs: Via RCA jacks.
Paging Mic Connectivity: Connection for up to 32 zone paging microphones (PA-2400RC) and up to 3 push-to-talk microphones (PA-4300PTT).
Priority & Emergency: Supports an alarm announcement function with the optional PA-1120DMT digital message and timer insertion.
Power Management: Supports both standard mains operation and 24 V emergency power operation (DC 24 V/50 A).
Controls & Features: Includes bass, treble, and master controls, signal/clip LEDs, a regulated fan, and 15 V phantom power for electret microphones.
Optional Insertions: Features slots for various function modules (available separately), such as a digital message/timer (PA-1120DMT) or a tuner/CD player (PA-1140RCD).
Technical Specifications:
| Feature | Specification |
| Power Rating | 600 W |
| Peak Output Power | 600 W |
| Zones | 10 |
| Channels | 5 |
| Speaker Outputs | 100 V, 4 Ω |
| Frequency Range | 55–16,000 Hz |
| S/N Ratio | > 70 dB (Mic), > 80 dB (Line) |
| Phantom Power | 15 V |

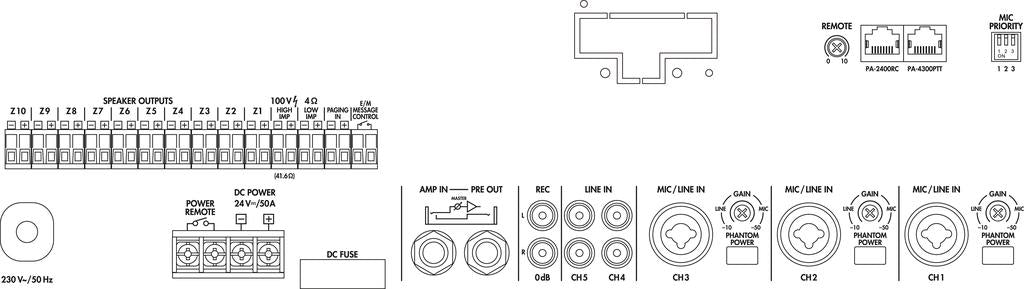

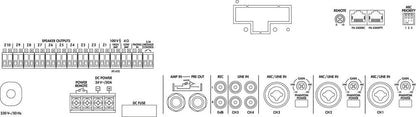

| Inputs | 3 x Combo XLR/6.3 mm (Mic/Line), 2 x RCA L/R (Line), Preamplifier, Zone Paging Mic (RJ45), PTT Mic (RJ45) |
| Outputs | Record Out (RCA L/R), Preamplifier Out (6.3 mm jack) |
| Power Supply | 230V/50 Hz or DC 24 V/50 A |
| Dimensions (W x H x D) | 482 x 133 x 352 mm |
| Rack Units (RU) | 3 |
| Weight | 22 kg |
