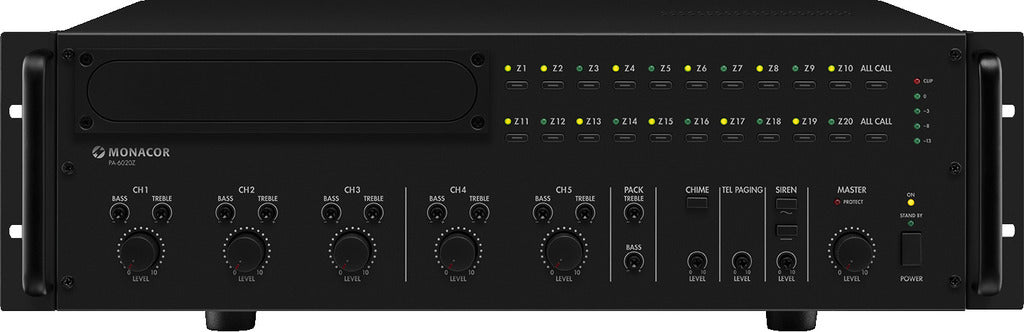

The MONACOR PA-6020Z is a robust, high-performance 20-zone mono PA mixing amplifier designed for large-scale public address (PA) and background music (BGM) installations. Delivering a powerful 600 W output, this professional 100 V line amplifier provides exceptional flexibility and reliable audio distribution in complex environments like schools, corporate facilities, and large public venues.
Â
Â
20 Individually Controllable Zones: Distribute your audio precisely where it's needed with individual control for up to 20 separate speaker lines.
High Power Output: Features 1 x 600 W power rating, suitable for extensive speaker systems on a 100 V line.
Versatile Inputs:
3 x Microphone/Line inputs via combo jacks (XLR/6.3 mm)
2 x Stereo Line inputs via RCA jacks
15 V phantom power for electret microphones is selectable.
Integrated Chime Functions: Includes selectable 2-tone, 4-tone, continuous sound, and wailing sound chimes with an automatic mute function for clear announcements.
Emergency Power Ready: Supports both standard mains operation (230Â V) and 24 V DC emergency power operation for continuous functionality during outages.
Comprehensive Connectivity:
Connections for up to 32 zone paging microphones (PA-2400RC, available separately) for multi-point control.
Connections for up to 3 push-to-talk microphones (PA-4300PTT, available separately).
Expandable Functionality: Features insertion slots for optional modules, such as a Digital Message and Timer Insertion (PA-1120DMT).
Professional Control: Equipped with Bass, Treble, and Master controls, signal/clip LEDs, and a regulated fan for optimal performance.
| PA-6020Z | |
|---|---|
| Peak output power | 600 W |
| Power rating | 600 W |
| Power rating at 4 Ω | 600 W |
| Power rating at 100 V | 600 W |
| Channels | 5 |
| Zones | 20 |
| Inputs | 2.5 mV/5 kΩ, 0.3 V/5 kΩ (mic/line 1-3),
0.3 V/15 kΩ (line 4-5), 0.775 V/100 kΩ (preamplifier)  |
| Frequency range | 55-16,000 Hz |
| Equalizer bass | ±10 dB/100 Hz |
| Equalizer treble | ±10 dB/10 kHz |
| S/N ratio | > 70Â dB (mic),
> 80Â dB (line) |
| THD | < 1% |
| Phantom power | 15 V |
| Power supply | ˜ 230 V/50 Hz/1,700 VA,
DC 24Â V/50 A |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 1,700 VA |
| Operating voltage (possible alternative) | DC 24 V |
| Power supply (possible alternative) | DC 50 A |
| Admiss. ambient temp. | 0-40 °C |
| Width | 482 mm |
| Height | 133 mm |
| Depth | 352 mm |
| Rack units, RU | 3 |
| Weight | 21 kg |

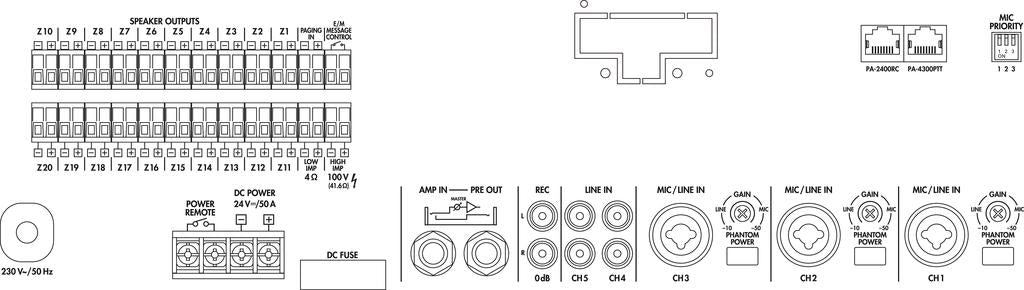

| Connections | 3 x combo 6.3 mm/XLR (mic/line),
2 x RCA L/R (line), 1 x 6.3 mm jack (preamplfier input), 1 x RJ45 (push-to-talk mic), 1 x RJ45 (zone paging mic), 1 x RCA L/R (record output), 1 x 6.3 mm jack (preamplifier output), screw contacts (chime button), screw contacts (speakers) |
| Packaging dimensions (W x H x L) | 0.54 x 0.21 x 0.47 m |
| Gross weight | 22.9 kg |
| Net weight | 21 kg |
