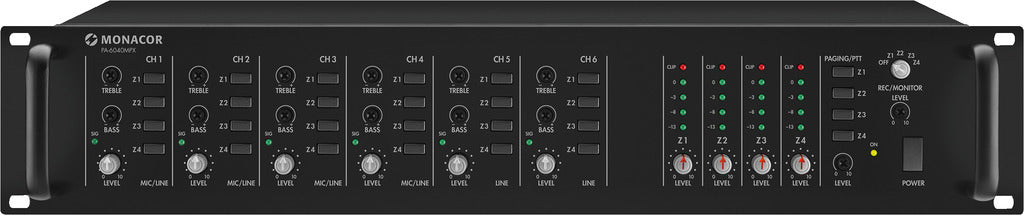

The MONACOR PA-6040MPX is a powerful and flexible 4-zone mixer designed to be the central control unit for comprehensive multi-room Public Address (PA) applications. Perfect for venues like offices, retail spaces, restaurants, and more, this 2U rack-mount unit provides intricate control over all your audio sources and zones.
🎧 Versatile 4-Zone Routing: Independently manage and route any of the 6 input channels to any or all of the four separate zone outputs. Create custom audio environments across your entire space.
🎤 Comprehensive Inputs: Equipped with 4 balanced microphone/line inputs via combo jacks (XLR/6.3mm) and 2 stereo line inputs via RCA, accommodating a wide range of audio sources.
🎚️ Per-Channel Control: Each input channel features a gain control (volume), 2-way tone control (bass and treble), and individual zone routing switches for precision mixing.
📢 Priority Paging & Chime: An independent paging input can be routed to any zone, ensuring important announcements are heard. Features a connection for an external chime button with selectable 2-tone, 4-tone chime, or siren functionality.
⚡ Phantom Power: Microphone inputs offer switchable 15 V phantom power for condenser microphones, providing maximum mic flexibility.
🔌 Flexible Power Options: Operates via standard mains power (230 V/50 Hz) or can be connected to a 24 V DC emergency power supply for uninterrupted operation during outages.
🎛️ Professional Integration: Connection options for the optional PA-4000PTT push-to-talk microphone and up to 32 PA-4000RC zone paging microphones for advanced announcement control.
| PA-6040MPX | |
|---|---|
| Channels | 6 |
| Zones | 4 |
| Inputs | 2.5 mV/5 kΩ, bal., 250 mV/15 kΩ, bal. (mic/line),
250 mV/15 kΩ (line), 250 mV/10 kΩ (telephone paging) |
| Frequency range | 20-20,000 Hz |
| Equalizer bass | ± 10 dB/100 Hz |
| Equalizer treble | ± 10 dB/10 kHz |
| S/N ratio | > 65 dB (mic),
> 87 dB (line) |
| THD | < 1% |
| Phantom power | 15 V |
| Power supply | ˜ 230 V/50 Hz/15 VA,
DC 24 V/500 mA |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 15 VA |
| Operating voltage (possible alternative) | DC 24 V |
| Power supply (possible alternative) | DC 500 mA |
| Admiss. ambient temp. | 0-40 °C |
| Width | 482 mm |
| Height | 90 mm |
| Depth | 305 mm |
| Rack units, RU | 2 |
| Weight | 4.4 kg |

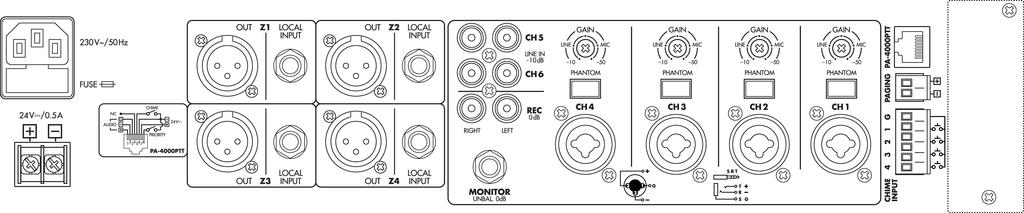

| Connections | 4 x combo 6.3 mm/XLR (mic/line),
2 x RCA L/R (line), 4 x 6.3 mm jack (zone inputs), plug-in screw terminal (paging), plug-in screw terminal (chime button), 1 x RJ45 (push-to-talk mic), 4 x XLR (zone outputs), 1 x 6.3 mm jack (monitor), 1 x RCA L/R (record) |
| Packaging dimensions (W x H x L) | 0.395 x 0.17 x 0.55 m |
| Gross weight | 5.77 kg |
| Net weight | 4.47 kg |
