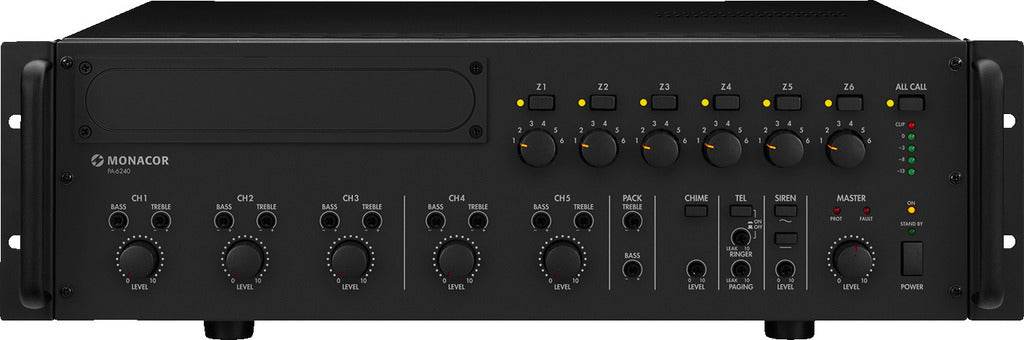

MONACOR PA-6240: 6-Zone Mono PA Mixing Amplifier

The MONACOR PA-6240 is a powerful and versatile 6-zone mono PA mixing amplifier designed for comprehensive public address systems, offering flexible audio routing, priority control, and expandability through optional modules.

Key Features:

• Output Power: Delivers a power rating of 240 W (Peak output power of 340 W).

• Zone Control: Features 6 independently controllable zones for routing audio to specific areas.

• Priority Functions: Equipped with several priority features, including:

  • Selectable Chime: Offers standard chime, continuous sound, wailing sound, and an automatic mute function, with selection between a 2-tone or 4-tone chime.

  • Dedicated Connections: Includes connections for a zone paging microphone (PA-6000RC) and a push-to-talk microphone (RJ45).

  • Telephone System Input: Includes screw contacts for connection to a telephone system for announcements.

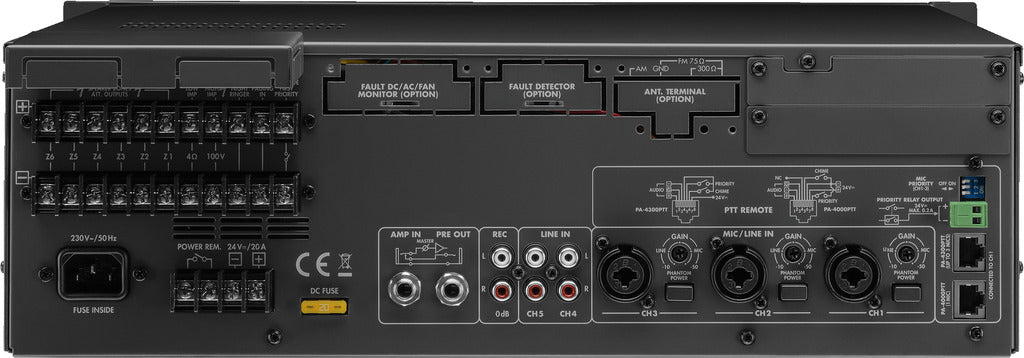

• Audio Inputs:

  • 3 Microphone/Line Inputs: Via combined 6.3 mm/XLR jacks.

  • 2 Line Inputs: Via RCA L/R jacks.

• Expandability (Insertions): Features multiple compartments for optional modules to enhance functionality:

  • 1 Front Insertion Compartment: For modules like the PA-1120DMT (digital message and timer for automatic alarm messages), a tuner, or a CD player.

  • 3 Rear Insertion Facilities: For modules such as PA-6FD (fault detection), PA-6FM (fault monitoring), and PA-6FR (anti-feedback).

• Power Management: Supports both standard mains operation ($\sim 230$ V) and 24 V emergency power operation (DC 24 V/20 A).

• Controls & Features: Includes bass, treble, and master controls, a level display via LEDs, a regulated fan, and 17 V phantom power for electret microphones.
