RRP
Regular price £298.80inc VAT
Access Manufacturer's website for detailed product specifications and documents.
You can apply for a trade account with us by either;
1. Registering at our B2B Trade Portal - Our dedicated online trade portal gives you a seamless buying experience. See trade pricing, view stock availability, place orders and check your order status.
2. Completing a trade application form and returning via email to sales@epicaudio.co.uk.
We specialise in commercial projects offering a comprehensive commercial project service, collaborating with you to design, supply, and install solutions that meet your specifications, timeline, and budget.

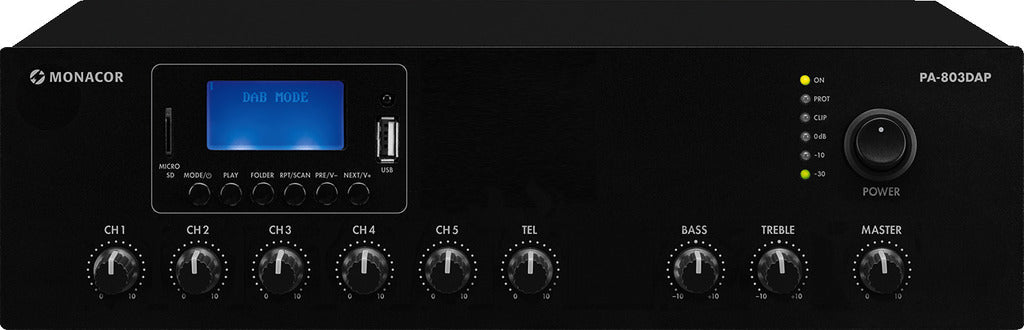

Introducing the MONACOR PA-803DAP — a compact, feature-rich, and energy-efficient Mono Class D PA Mixing Amplifier that's perfect for small commercial sound applications like background music and announcements.
Integrated Multimedia Player: Access your audio instantly with the built-in MP3 player (USB/SD interface), FM/DAB+ tuner for interference-free digital radio, and Bluetooth 4.2 for wireless streaming from smartphones or tablets. Includes an LED display and infrared remote control for easy operation.
Energy-Efficient Class D Power: Delivering 1 x 30 W of power, the highly efficient Class D concept reduces energy costs and minimizes heat generation.
Silent Operation: The fanless cooling design ensures completely silent operation, making it ideal for noise-sensitive environments like offices, clinics, or classrooms.
Versatile Connectivity: Features multiple inputs for comprehensive mixing:
1 x Balanced XLR Microphone Input with 48V phantom power.
Priority selection on the mic input for automatic announcement override.
2 x Unbalanced inputs, switchable mic/line.
2 x Unbalanced line inputs (RCA).
1 x TEL input and a dedicated Music-On-Hold (MOH) output.

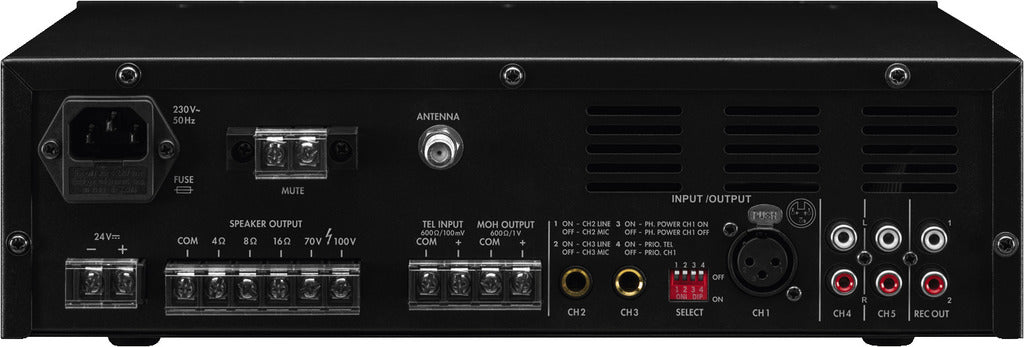

Flexible Outputs: Speaker outputs are provided via screw terminals, compatible with both 100 V line and low-impedance (4 Ω / 8 Ω) speaker systems. Also includes two line outputs for connecting to other equipment.
| PA-803DAP | |
|---|---|
| Peak output power | 30 W |
| Power rating | 30 W |
| Power rating at 4 Ω | 30 W |
| Power rating at 8 Ω | 30 W |
| Power rating at 16 Ω | 30 W |
| Power rating at 100 V | 30 W |
| Power rating at 70 V | 30 W |
| Channels | 1 |
| Zones | 1 |
| Inputs | 4.5 mV/600 Ω (channel 1),
120 mV (channels 2-3), 60 mV (channels 4-5) 90 mV (tel.) |
| Frequency range | 60-15,000 Hz |
| Equalizer bass | yes |
| Equalizer treble | yes |
| S/N ratio | 72 dB (mic, channels 1-3)
85 dB (line, channels 2-5) |
| THD | < 0.5% |
| Phantom power | 48 V |
| Power supply | ˜ 230 V/50 Hz/100 VA
DC 24 V/2.5 A |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 100 VA |
| Operating voltage (possible alternative) | DC 24 V |
| Power supply (possible alternative) | 2.5 A |
| Admiss. ambient temp. | 0-40 °C |
| Width | 320 mm |
| Height | 95 mm |
| Depth | 245 mm |
| Weight | 3.95 kg |

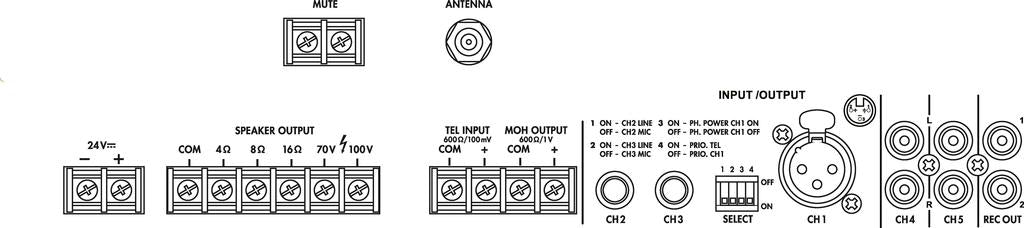

| Connections | 1 x XLR (channel 1),
2 x 6.3 mm jack (channels 2-3), 2 x RCA L/R (channels 4-5), 2 x RCA (record out), 1 x F jack (FM/DAB+), screw contacts (tel. input), screw contacts (MOH), screw contacts ( DC 24 V), screw contacts (mute), screw contacts (speakers) |
| Packaging dimensions (W x H x L) | 0.39 x 0.16 x 0.31 m |
| Gross weight | 4.33 kg |
| Net weight | 3.74 kg |
