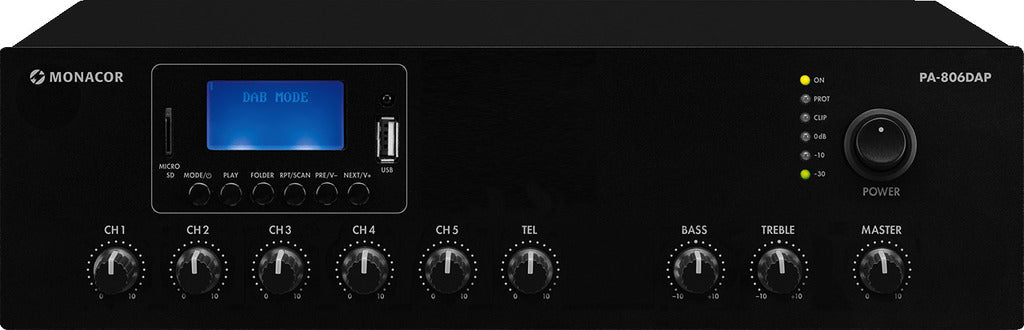

The MONACOR PA-806DAP is a mono Class D PA mixing amplifier designed for professional public address systems, offering high efficiency, multiple audio sources (including digital radio and streaming), and comprehensive mixing controls.
Amplifier & Power:
Power Rating: 60 W (Peak output 60 W).
Technology: Mono Class D concept with high efficiency for reduced energy costs.
Outputs: Supports both low-impedance (4 Ω, 8 Ω, 16 Ω) and high-voltage line systems (70 V and 100 V).
Cooling: Features a fanless cooling concept for silent operation.
Integrated Media Player:
MP3 Player: Includes an MP3 player with USB/SD interface.
Tuner: Built-in FM/DAB+ radio tuner for clear reception of interference-free 'digital radio'.
Streaming: Supports Bluetooth version 4.2.
Includes an infrared remote control and an LED display.
Mixing & Inputs:
Microphone Inputs: 1 balanced XLR microphone input with switchable 48 V phantom power and priority selection for announcements.
Flexible Inputs: 2 unbalanced inputs switchable between mic/line level (6.3 mm jack).
Line Inputs: 2 unbalanced line inputs (RCA L/R).
TEL Input: 1 x TEL input (screw contacts).
Control & Priority:
Priority: Features a priority selection on the main mic input for announcements to override music.
Mute: Includes a mute function via screw contact.
Tone Control: 2-way tone control (bass/treble) for the output.
Level Control: Input level control and output level control.

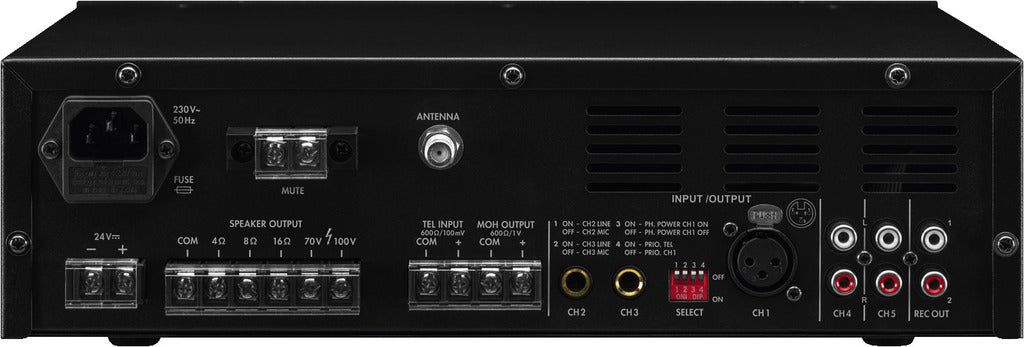

Outputs:
Speaker outputs via screw contacts.
1 Music-On-Hold output (MOH) via screw contact.
2 x RCA record outputs.
Power Supply: Operates on standard ~ 230 V/50 Hz AC power or can run on an alternative DC 24 V/4.2 A supply (e.g., for emergency backup).
