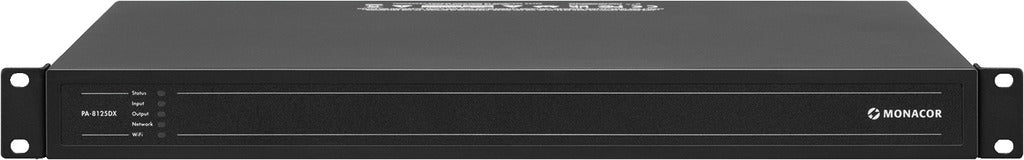

The Monacor PA-8125DX is an 8-zone multifunctional mixing amplifier utilizing Class D technology and featuring an integrated Digital Signal Processor (DSP). It is designed for general multi-room Public Address (PA) applications, offering high power output, flexible connectivity, and network-based control. The unit is powered by PASCAL technology.
Output Power & Configuration:
8 x 125W at 4 Ohm or 8 Ohm (low impedance).
Alternatively, 4 x 250 W at 100V
Total Peak/Power Rating: 1,000 W.
Zone Mixing: Provides 8 separate zones and 9 channels for flexible audio distribution.

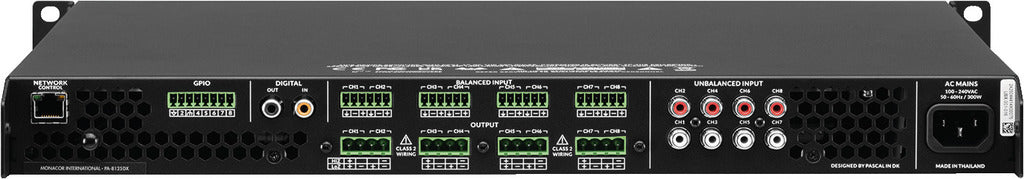

Connectivity:
8 Analog Inputs: Mic/Line selectable via plug-in screw terminals (balanced) or RCA jacks.
1 Digital Input/Output: Via S/PDIF RCA jacks.
8 Low-Impedance Outputs (4 Ohm or 8 Ohm or 2 High-Impedance Zone Outputs 100V via plug-in screw terminals.
Digital Signal Processing (DSP):

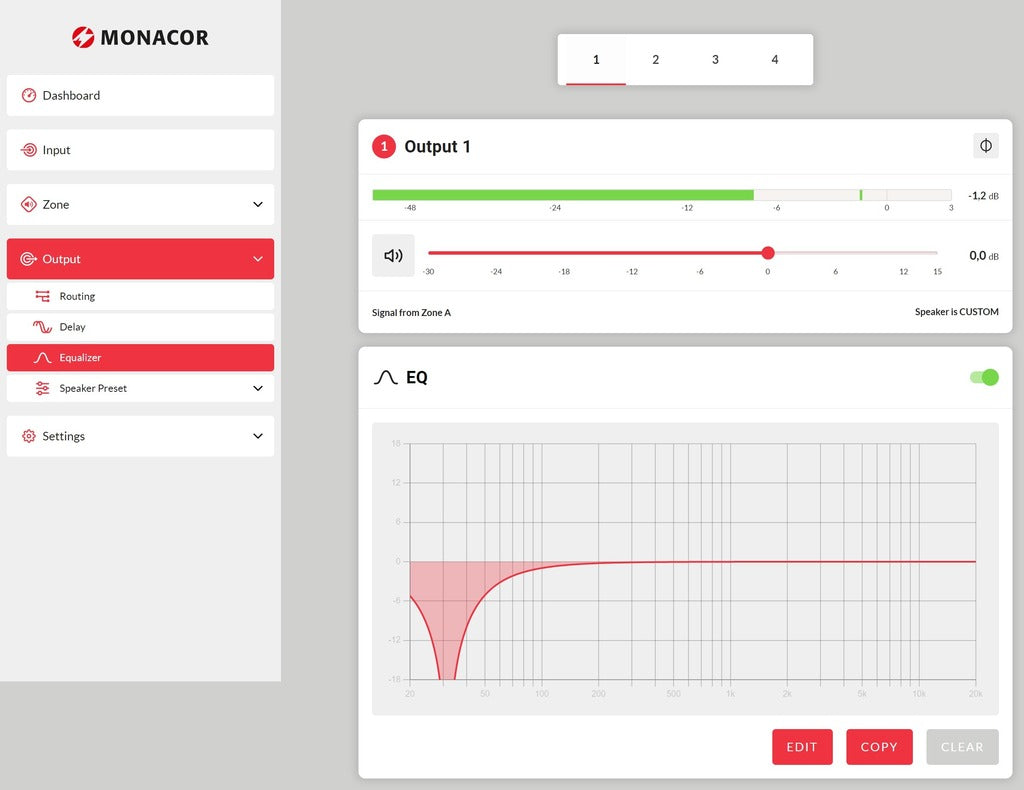

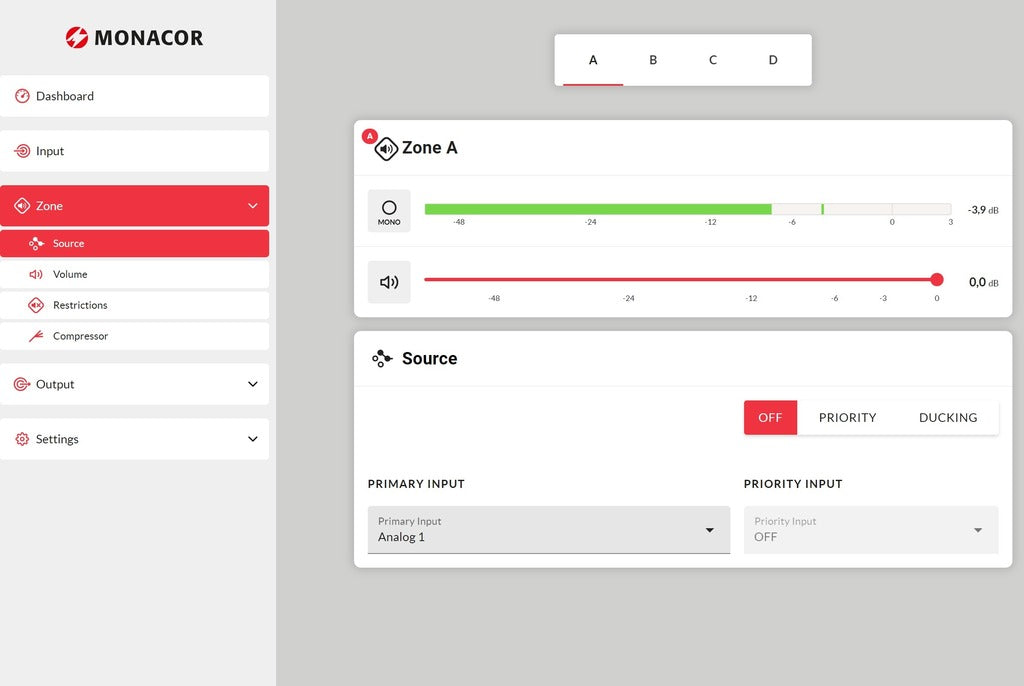

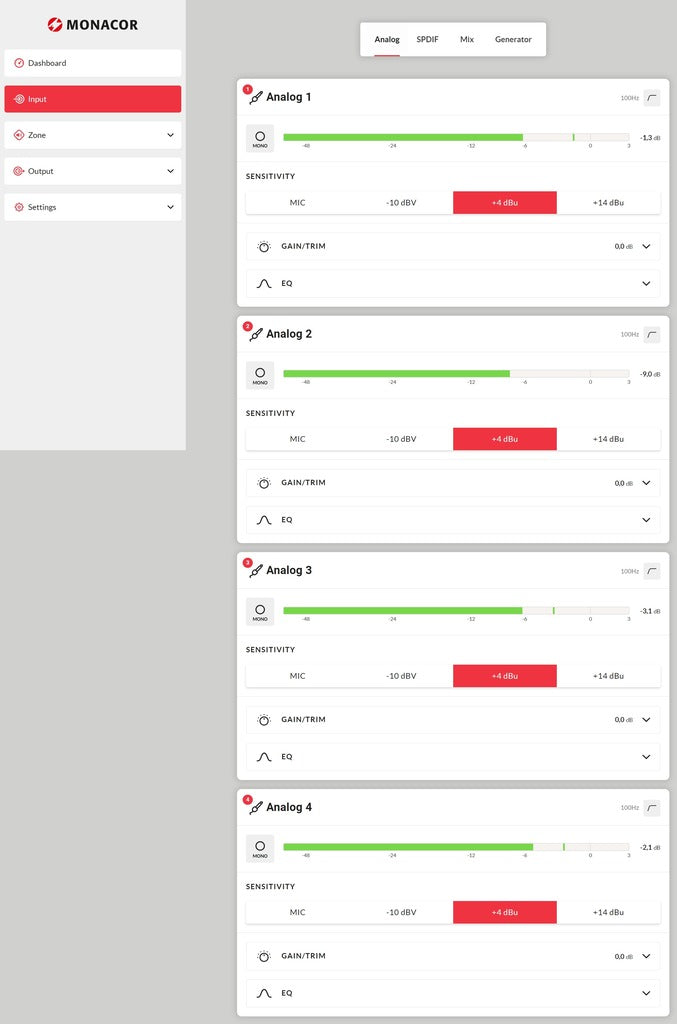

Includes a graphical user interface (HTML5) for convenient operation and configuration via a web browser (PC, Mac, iOS, Android).
Features a parametric 5-band equalizer for input.
Includes adjustable high-pass/low-pass filters, parametric equalizer, and output with separate FIR filters.
Offers speaker matching (10 ms), switchable output phase, adjustable compressor/limiter, and adjustable delay.
Supports talkover with priority routing.
Built-in sine wave noise generator.
Control and Integration:
Network connection via LAN or WLAN.
GPIO interface for remote volume control and standby.
Protection: Protected against short circuit, DC voltage overload, undervoltage, excess temperature, and overload.
Format: 1RU (45mm height) 19" rack-mountable unit.
| Specification | Detail |
| Power Rating | 1,000W (Peak and Total RMS) |
| Output (Low-Z) | 8 x 125W at 4 Ohm / 8 Ohm |
| Output (High-Z) | 4 x 250W at 100V |
| Zones | 8 |
| Inputs | 8 x Mic/Line (Analog), 1 x S/PDIF (Digital) |
| S/N Ratio | > 106dB |
| THD | < 0.05%$ |
| Dimensions (W x H x D) | 484 x 45 x 320mm (1 RU) |
| Weight | 3.8kg |
