MONACOR PA-812DAP 120w Mixing Amplifier with integrated MP3 player, FM/DAB+ tuner and Bluetooth

MONACOR PA-812DAP 120w Mixing Amplifier with integrated MP3 player, FM/DAB+ tuner and Bluetooth

RRP

£454.80

inc VAT

£454.80
Sold out
Tax included. Shipping calculated at checkout.
🎧 Monacor PA-812DAP: The Compact, All-in-One PA Mixing Amplifier   Power your small to medium commercial audio installations with the Monacor PA-812DAP, a versatile and energy-efficient mono Class D PA...
Vendor: MONACOR
SKU: PA-812DAP

Product Specification

Access Manufacturer's website for detailed product specifications and documents.

Want to see trade pricing? Register for a trade account!

You can apply for a trade account with us by either;

1. Registering at our B2B Trade Portal - Our dedicated online trade portal gives you a seamless buying experience. See trade pricing, view stock availability, place orders and check your order status.

2. Completing a trade application form and returning via email to sales@epicaudio.co.uk.

Project Enquiry

We specialise in commercial projects offering a comprehensive commercial project service, collaborating with you to design, supply, and install solutions that meet your specifications, timeline, and budget.

Get in touch today to discuss your requirements!

View full product details

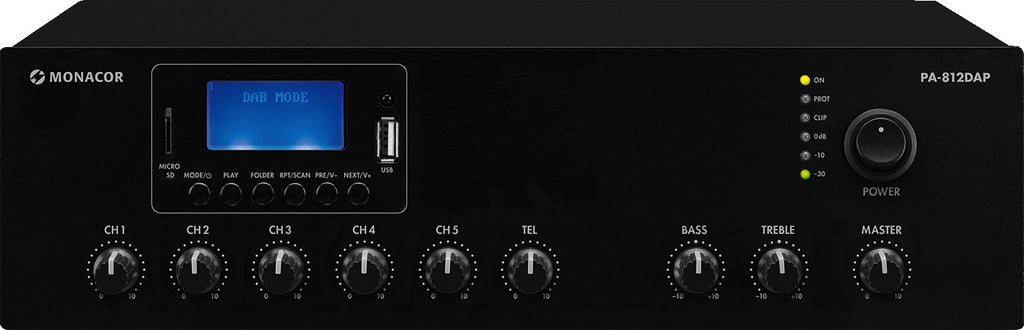

🎧 Monacor PA-812DAP: The Compact, All-in-One PA Mixing Amplifier



Power your small to medium commercial audio installations with the Monacor PA-812DAP, a versatile and energy-efficient mono Class D PA mixing amplifier. Delivering 120W of reliable power, this ultra-compact unit is perfect for background music and announcements in settings like cafes, restaurants, retail spaces, or offices.



Key Features and Connectivity



The PA-812DAP is built for maximum flexibility, featuring a wide array of built-in audio sources and multiple inputs for all your needs:

  • Integrated Music Module: Enjoy diverse audio playback with the MP3 player (via USB/SD interface), an interference-free FM/DAB+ radio tuner for digital radio, and Bluetooth version 4.2 for wireless streaming from smartphones or tablets.

  • Mic Inputs with Priority: The unit includes a balanced XLR microphone input with switchable 48 V phantom power for condenser microphones and an essential priority selection feature, which automatically mutes other inputs during announcements.

  • Multiple Inputs: Connect your gear with:

    • 2 unbalanced inputs, switchable mic/line (6.3 mm jack)

    • 2 unbalanced line inputs (RCA)

    • 1 dedicated TEL input



Energy-Saving and Silent Operation



Designed with modern efficiency in mind, the PA-812DAP ensures cost-effective and discreet performance:

  • Class D Concept: The high-efficiency Class D amplifier design helps cut energy costs without compromising performance.

  • Silent Operation: A smart fanless cooling concept eliminates fan noise, making it an ideal choice for noise-sensitive environments where discreet operation is key.



Technical Specifications and Convenience



  • Output Flexibility: The amplifier is primarily designed for 100 V speaker systems, but also supports low-impedance connections (4 ohm, 8 ohm, 16 ohm).

  • Outputs: Features include speaker outputs via screw contacts, a Music-On-Hold (MOH) output, an amp input, and a preamp output for system expansion.

  • Control: Fine-tune your sound with 2-way tone control (bass/treble) for the output, input level controls, and output level controls.

  • User Interface: An LED display and infrared remote control are included for easy operation.

  • Dimensions: Its compact size (320 mm x 95 mm x 245 mm) makes installation easy, even when space is limited.

The Monacor PA-812DAP is a robust and feature-rich solution that combines superior sound quality with modern digital convenience in a space-saving package.

Technical specifications PA-812DAP

PA-812DAP
Peak output power 120 W
Power rating 120 W
Power rating at 4 Ω 120 W
Power rating at 8 Ω 120 W
Power rating at 16 Ω 120 W
Power rating at 100 V 120 W
Power rating at 70 V 120 W
Channels 1
Zones 1
Inputs 4.5 mV/600 Ω (channel 1),

4.5 mV/120 mV (channels 2-3),

60 mV (channels 4-5)

90 mV (tel.)
Frequency range 60-15,000 Hz
Equalizer bass ± 10 dB
Equalizer treble ± 10 dB
S/N ratio 72 dB (mic, channels 1-3)

85 dB (line, channels 2-5)
THD < 0.5%
Phantom power 48 V
Power supply ˜ 230 V/50 Hz/250 VA

DC  24 V/8.4 A
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 250 VA
Operating voltage (possible alternative) DC 24 V
Power supply (possible alternative) 8.4 A
Admiss. ambient temp. 0-40 °C
Width 320 mm
Height 95 mm
Depth 245 mm
Weight 4.5 kg

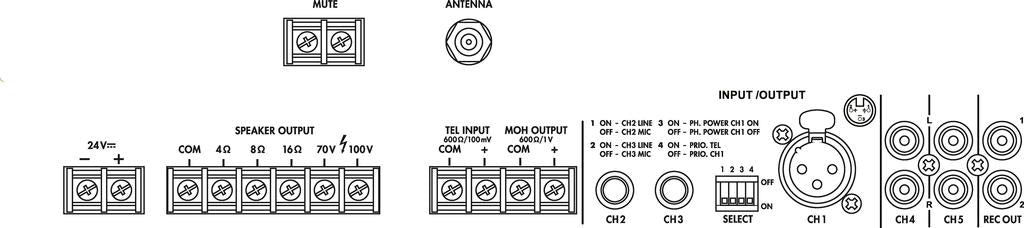

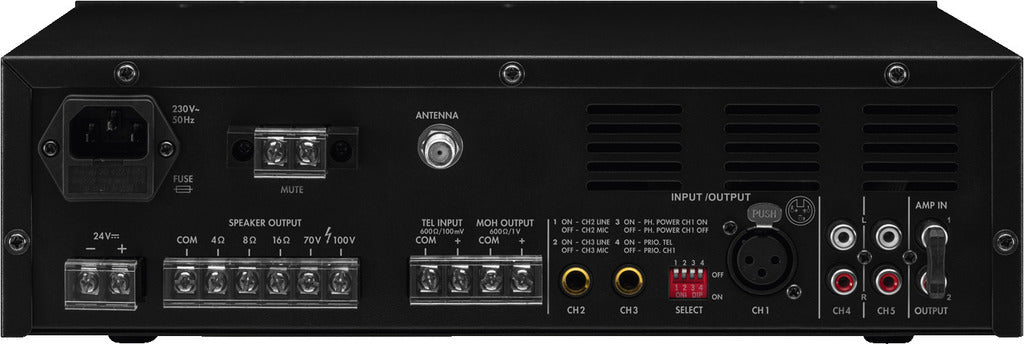

Connections 1 x XLR (channel 1),

2 x 6.3 mm jack (channels 2-3)

2 x RCA L/R (channels 4-5),

1 x RCA (amp in),

1 x RCA (preamp out),

1 x F jack (FM/DAB+),

screw contacts (tel. input),

screw contacts (MOH),

screw contacts ( DC 24 V),

screw contacts (mute),

screw contacts (speakers)
Packaging dimensions (W x H x L) 0.395 x 0.16 x 0.305 m
Gross weight 5.2 kg
Net weight 4.51 kg
