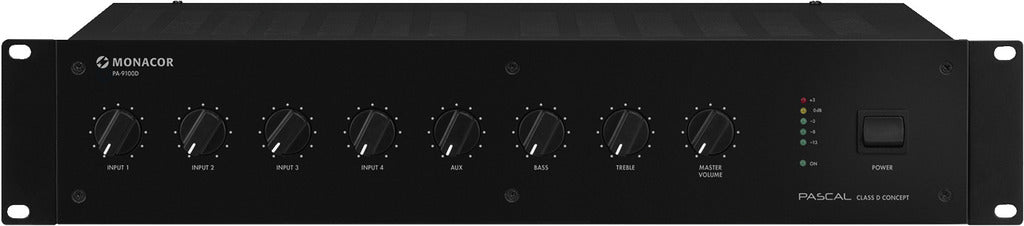

🔊 MONACOR PA-9100D: Powerful & Efficient Mono PA Mixing Amplifier
Elevate your large-scale public address and background music systems with the MONACOR PA-9100D, a high-performance, energy-efficient mono Class D mixing amplifier. Delivering a formidable 1,000 W of power, this amplifier is built for professional installations requiring crystal-clear, stable audio in venues like auditoriums, sports facilities, and houses of worship.
Massive Power Output: Features 1 x 1,000 W power rating for both 100 V line and low-impedance (4 ohms/ 8 ohms) applications, making it incredibly versatile.
Cutting-Edge Class D Technology: Utilizes a PASCAL amplifier module for high efficiency, leading to an energy-efficient concept and a significantly lightweight design thanks to its compact switch-mode power supply.
Silent Operation: A fanless cooling concept ensures virtually noiseless operation, perfect for noise-sensitive environments like conference rooms and theatres.
Versatile 5-Channel Mixer: Equipped with 4 balanced mic/line inputs (XLR) and 1 aux input (RCA L/R) for connecting various audio sources.
Priority and Talkover: Mic 1 includes a dedicated priority circuit with automatic talkover, ensuring announcements override background music for clear communication.
Professional Microphone Support: Offers 48 V phantom power for each microphone input, individually switchable to support high-quality condenser microphones.
Advanced Control: Features input and output level controls, a 2-way tone control (bass/treble) for output, and an integrated limiter to protect your system from overload and distortion.

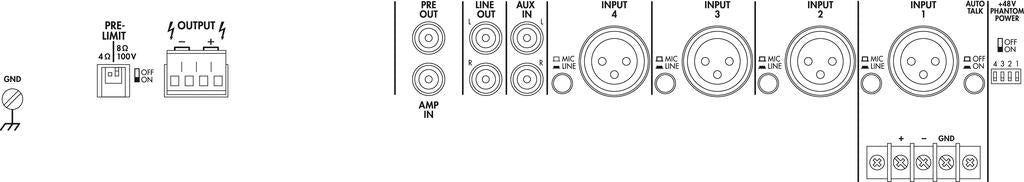

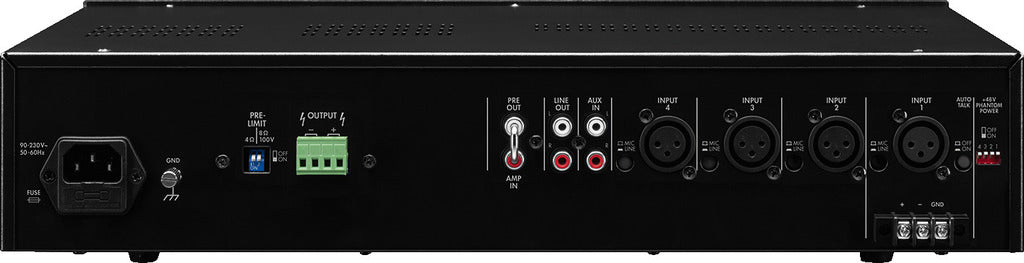

Flexible Outputs: Speaker outputs are provided via secure screw terminals, ready for 4 ohms, 8 ohms or 100 V line systems.
System Integration: Includes a line output and an insert facility for connecting external processing units like equalizers, effect units, or feedback controllers.
Rack-Mount Ready: The unit comes with removable mounting brackets for convenient 2 RU (Rack Unit) installation in a standard 19-inch rack.
The MONACOR PA-9100D combines enormous power with a sophisticated, lightweight, and quiet design, offering a professional and reliable solution for all your Public Address needs.
| PA-9100D | |
|---|---|
| Peak output power | 1,000 W |
| Power rating | 1,000 W |
| Power rating at 4 Ω | 900 W |
| Power rating at 8 Ω | 1,000 W |
| Power rating at 100 V | 1,000 W@9.2 Ω |
| Output impedance | 4-8 Ω |
| Channels | 5 |
| Inputs | 3 mV (mic),
200 mV (line), 140 mV (aux) |
| Frequency range | 20-20,000 Hz |
| Integrated limiter | yes |
| Equalizer bass | ± 10 dB/100 Hz |
| Equalizer treble | ± 10 dB/10 kHz |
| S/N ratio | > 80 dB |
| THD | < 0.1% |
| Phantom power | 48 V |
| Power supply | ˜ 90-230 V/50-60 Hz/1,100 VA |
| Mains voltage | ~ 90-230 V |
| Mains frequency | 50-60 Hz |
| Power consumption, operation | 1,030 VA |
| Admiss. ambient temp. | 0-40 °C |
| Width | 482 mm |
| Height | 88 mm |
| Depth | 275 mm |
| Rack units, RU | 2 |
| Weight | 5.6 kg |
| Connections | 4 x XLR (mic/line),
1 x RCA L/R (aux), screw contacts (speakers) |
| Packaging dimensions (W x H x L) | 0.5 x 0.13 x 0.36 m |
| Gross weight | 6.6 kg |
| Net weight | 5.6 kg |
