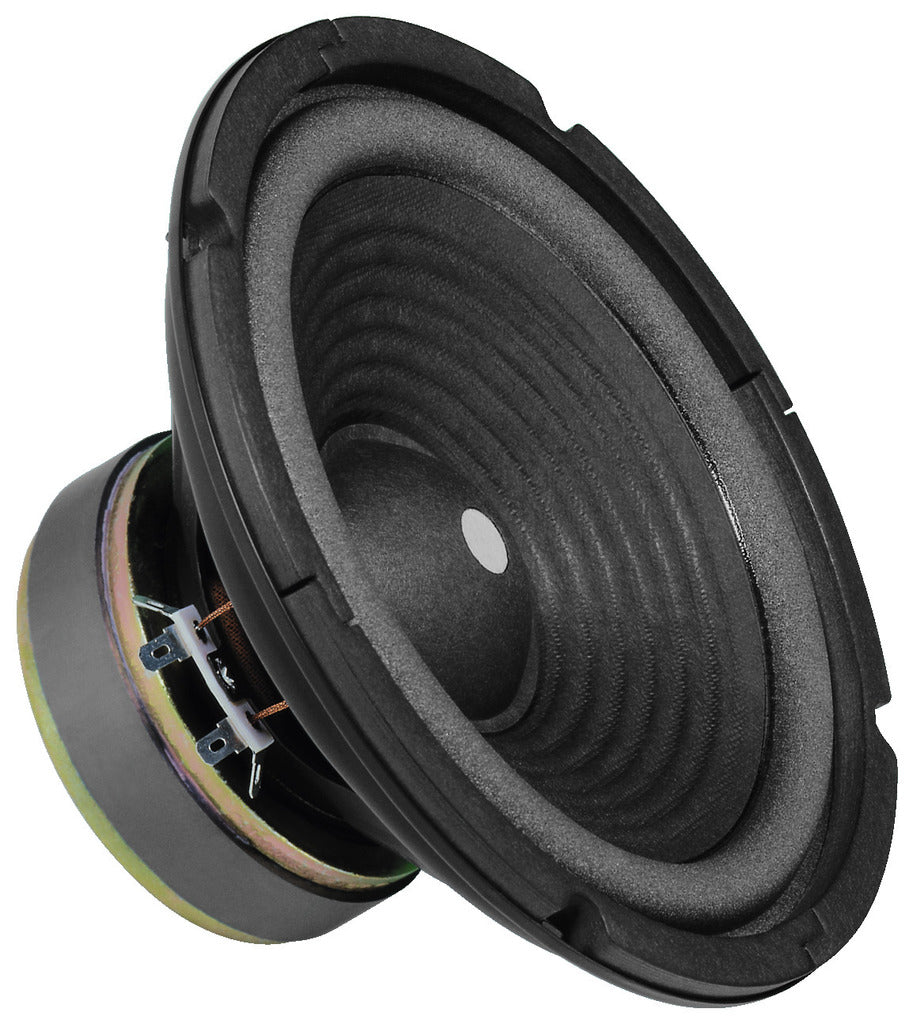

SP-90
Universal bass speaker, 35 W, 8 Ω
Soft suspension
For general bass applications
Technical specifications SP-90
SP-90
Impedance (Z) 8 Ω
Frequency range f3-8,000 Hz
Resonant frequency (fs) 45 Hz
Power rating (RMS) 35 W
Peak music power output (MAX) 70 W
SPL 92 dB/W/m
Suspension compl. (Cms) 0.8 mm/N
Moving mass (Mms) 17 g
Mech. Q factor (Qms) 3.36
Electr. Q factor (Qes) 0.68
Total Q factor (Qts) 0.57
Equivalent volume (Vas) 42 l
DC resistance (Re) 6.5 Ω
Voice coil induct. (Le) 0.5 mH
Voice coil diameter Ø 25 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 2 mm
Eff. cone area (Sd) 210 cm2
Magnet weight 380 g
Magnet diameter Ø 100 mm
Mounting cutout Ø 185 mm
Mounting depth 81 mm
Mounting hole diameter Ø 192 mm
Hole spacing X-axis 135 mm
Hole spacing Y-axis 135 mm
Dimensions Ø 205 mm x 90 mm
Outside diameter Ø 205 mm
Width Ø 205 mm
Depth 90 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 1.223 kg
Packing unit 1
Type of speaker 8"
Packing dimensions (W x H x L) 0.21 x 0.1 x 0.21 m
Gross weight 1.388 kg
Net weight 1.223 kg
