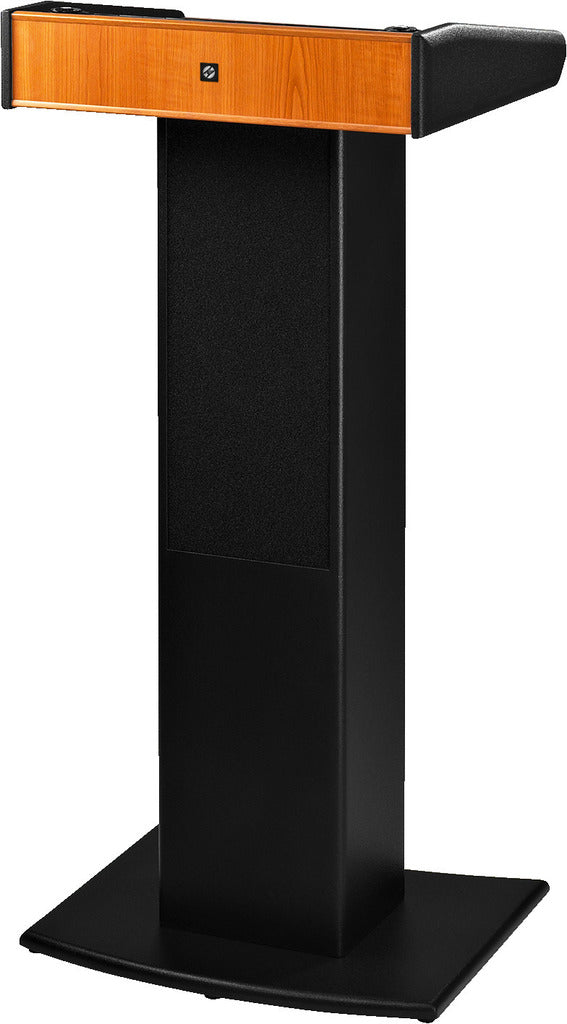

The MONACOR SPEECH-104D is an active, professional lectern designed to provide a high-quality, convenient, and powerful PA solution for speech and music applications, especially in mobile or temporary settings.
The SPEECH-104D lectern is an innovative and high-quality solution for PA speech and music applications with high requirements. It perfectly combines excellent sound quality, high volume capability, and convenient operation.
Key Features:
Active PA System: Built-in Class D mixing amplifier and 2-way speaker system with 80 W rated power (120 W peak).
Wireless Capability: Integrated 2-channel multifrequency receiver unit utilizing UHF PLL technology with 2 x 16 selectable frequencies (863.1–864.9 MHz), making it license-free in the EU.
Mobile Operation: Battery-operated via two built-in rechargeable lead gel batteries (2 x 12 V/7 Ah), providing an operating time of up to 16 hours. An integrated battery charging function and charger are supplied.
Versatile Inputs:
1 x combination jack for microphone (XLR) or line (6.3 mm jack).
1 x stereo aux input via RCA jacks.
Each input features a gain control.

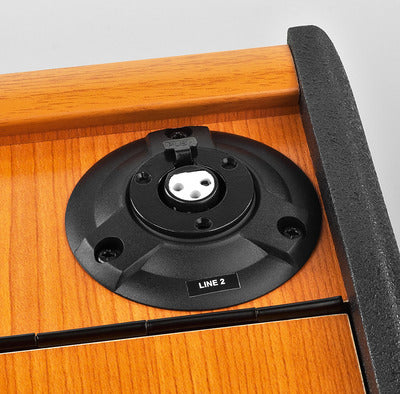

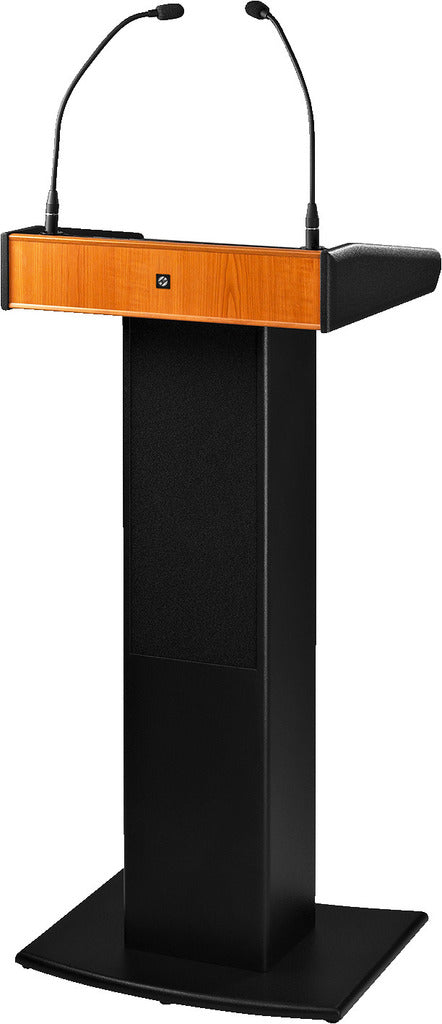

Gooseneck Ready: Two shock-absorbing XLR jacks on the top for connecting two optional gooseneck microphones or one microphone and one optional LED gooseneck light, complete with 12 V phantom power.
Connectivity: Includes a stereo line output (RCA) and a NEUTRIK SPEAKON connection (8 Ω) for an external speaker.
Design: High-quality wooden cabinet with replaceable black bottom plates and a folding document compartment on the top.
The SPEECH-104D allows users to simply plug in a gooseneck microphone and/or an external signal source, switch it on, and it's ready to use. It's suitable for setting up an auditorium in any location, indoors or out.
| Feature | Specification |
| Rated Power (P_RMS) | 80 W |
| Peak Output Power | 120 W |
| Frequency Range | 70–20,000 Hz |
| Carrier Frequency | 863.1–864.9 MHz |
| Operating Range | ≈ 25 m |
| Max. SPL | 114 dB |
| Inputs | 2 mV (mic 1), 13 mV (line), 20 mV (mic 2-3), 100 mV (aux) |
| Power Supply | Rechargeable battery 2 x 12 V/7 Ah, DC 12 V/1.5 A via supplied charger |
| Admissible Ambient Temp. | 0–40 °C |
| Dimensions (W x H x D) | 525 x 1,120 x 440 mm |
| Weight | 30 kg (Gross Weight) / 29 kg (Net Weight) |

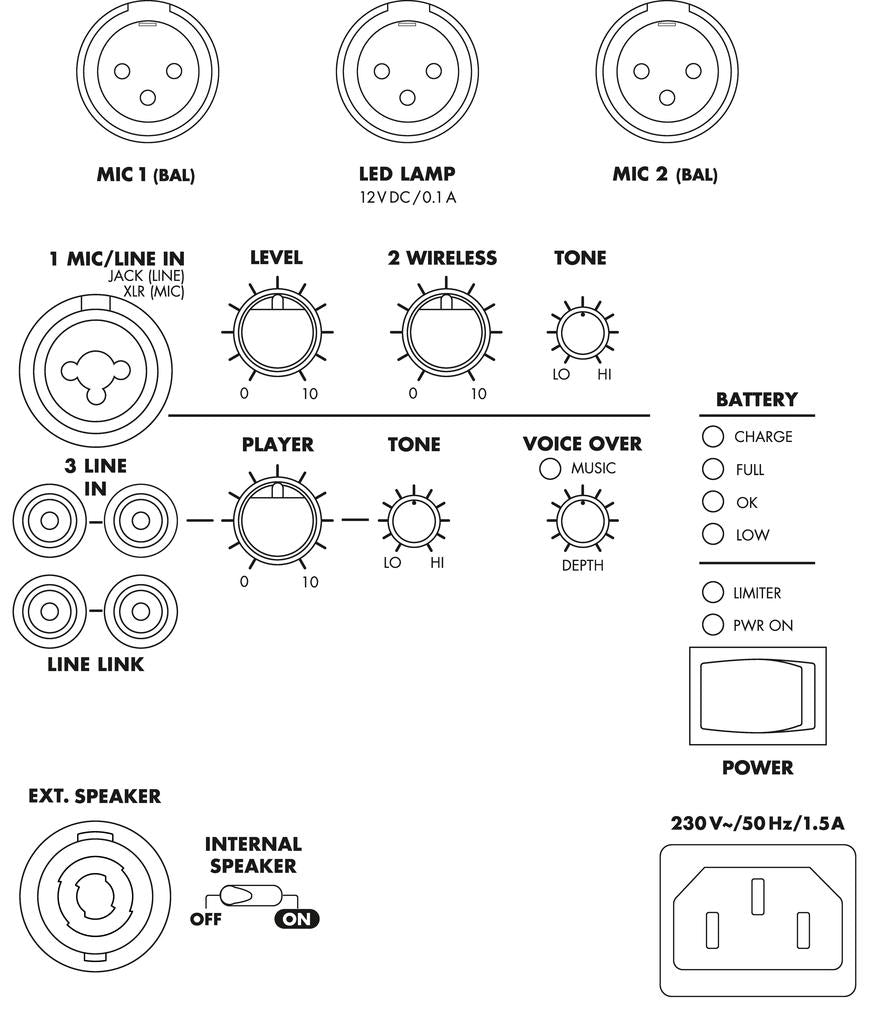

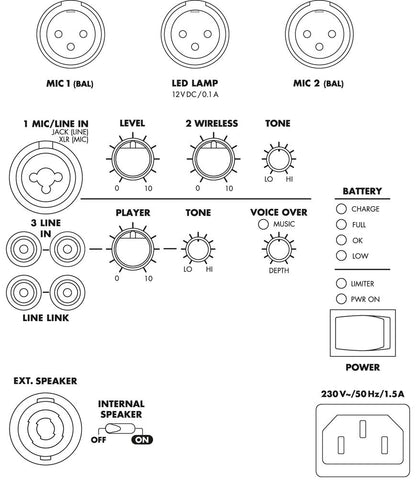

| Connections | 1 x XLR (mic 1), 1 x 6.3 mm jack (line), 2 x XLR (mic 2-3), 1 x RCA L/R (aux), 1 x RCA L/R (line out), 1 x NEUTRIK SPEAKON (ext. speakers) |
| EAN Code | 4007754270365 |
