The Monacor STA-1506 is a robust 6-channel PA power amplifier designed for versatile and demanding professional audio applications. Delivering a total power rating of 960 W RMS, this amplifier is perfect for multi-zone installations, monitor systems, and events in clubs or venues.
Â
Â
Multi-Channel Power: Provides 6 independent channels with a power rating of 6 x 160 W RMS at 4 ohms or 6 x 100 W RMS at 8 ohms.
Bridged Operation: Offers maximum flexibility with the ability to operate in 8 ohms bridged mode, delivering 3 x 320 W RMS for higher power requirements.
Integrated Limiter: Protects your connected speakers and ensures clean, distortion-free audio even at high output levels.
Flexible Filters: Each channel features a switchable high-pass filter and low-pass filter to allow precise frequency management for different speakers or zones.
Â
Â

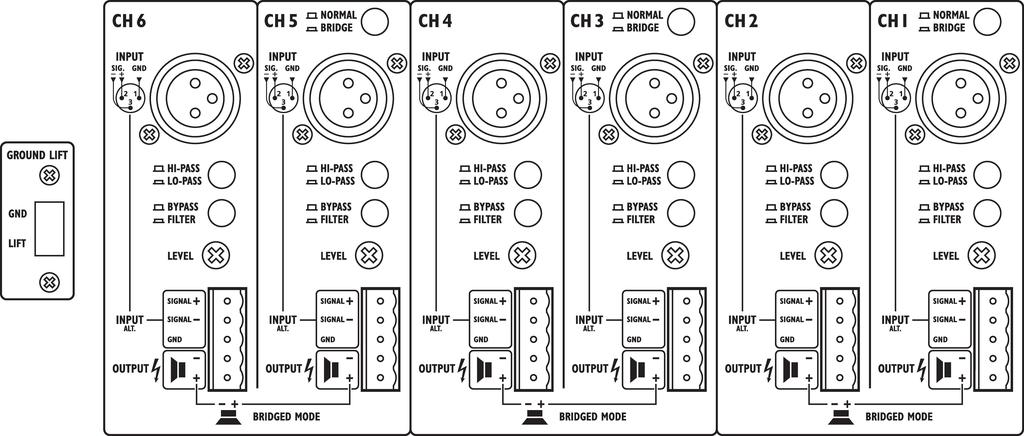

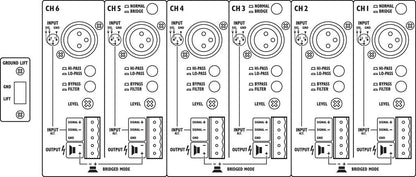

Balanced Inputs: Equipped with 6 balanced 3-pole XLR inputs for superior noise rejection and clean signal transmission over long cable runs.

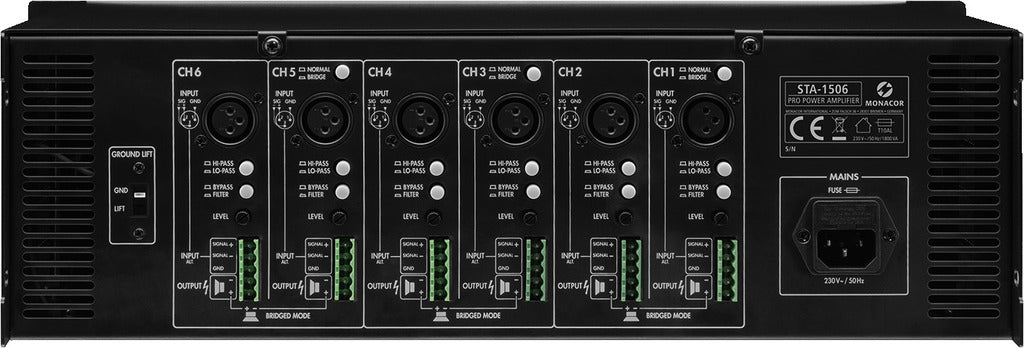

Secure Adjustments: Features tamper-resistant level adjustments on the rear panel to prevent accidental changes after installation.

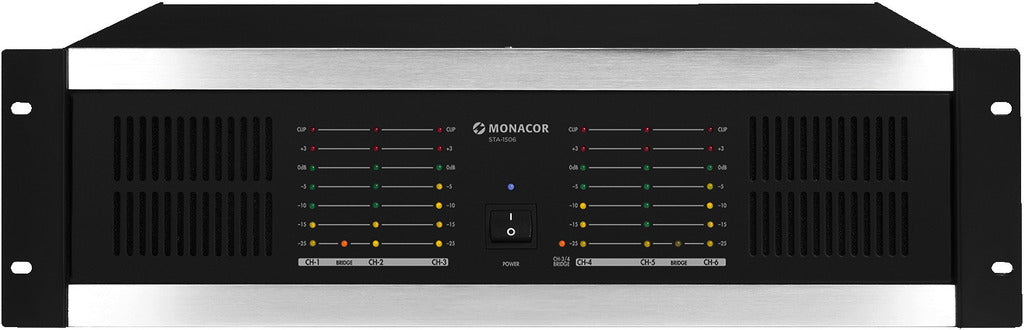

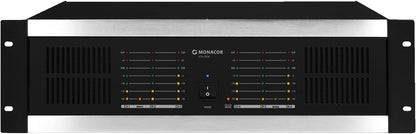

Visual Monitoring: LED VU meters and overload (clip) indicators on the front panel provide real-time status and visual feedback for each channel.
Comprehensive Protection: Includes a soft start function, speaker switch-on delay, ground lift switch, and protection against short circuit, overheating, and DC voltage overlay at the outputs, ensuring longevity and reliability.
Rack-Mountable: Housed in a durable 3-unit (3 RU) 19-inch steel chassis for easy and secure installation in standard equipment racks.
The STA-1506 is a powerful and flexible solution, built to handle the complexities of multi-channel audio setups while providing reliable performance and comprehensive protection.
| STA-1506 | |
|---|---|
| Peak output power | 1,400 W |
| Power rating | 960 W |
| Power rating at 4 Ω | 6 x 160 W |
| Power rating at 8 Ω | 6 x 100 W |
| Power rating with 8 Ω bridged operation | 3 x 320 W |
| Channels | 6 |
| Inputs | 0.7 V/20 kΩ |
| Frequency range | 12-20,000 Hz |
| Crossover network | yes |
| Crossover frequency | 240 Hz |
| Integrated limiter | yes |
| S/N ratio | > 80 dB |
| Crosstalk attenuation | > 60 dB |
| THD | < 0.1% |
| Power supply | ˜ 230 V/50 Hz/1,800 VA |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 1,800 VA |
| Admiss. ambient temp. | 0-40 °C |
| Width | 482 mm |
| Height | 132 mm |
| Depth | 310 mm |
| Rack units, RU | 3 |
| Weight | 15.5 kg |
| Connections | 6 x 3-pole XLR, bal.
6 x screw terminal |
| Packaging dimensions (W x H x L) | 0.52 x 0.22 x 0.43 m |
| Gross weight | 17.08 kg |
| Net weight | 15.84 kg |
