RRP
Regular price £838.80inc VAT
Access Manufacturer's website for detailed product specifications and documents.
You can apply for a trade account with us by either;
1. Registering at our B2B Trade Portal - Our dedicated online trade portal gives you a seamless buying experience. See trade pricing, view stock availability, place orders and check your order status.
2. Completing a trade application form and returning via email to sales@epicaudio.co.uk.
We specialise in commercial projects offering a comprehensive commercial project service, collaborating with you to design, supply, and install solutions that meet your specifications, timeline, and budget.
Â

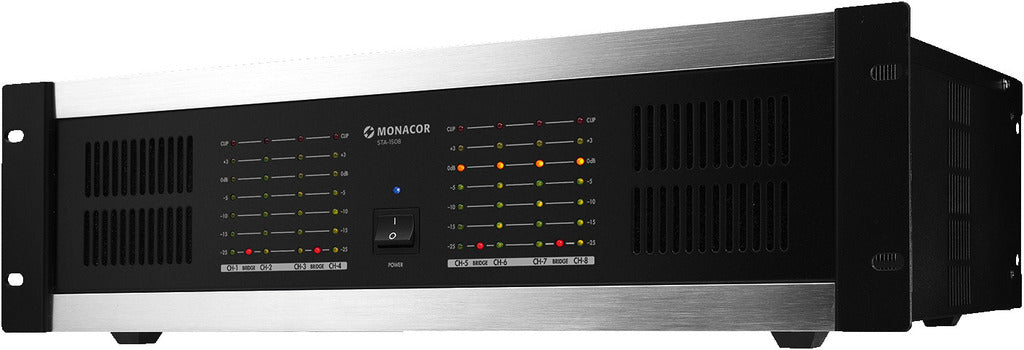

The Monacor STA-1508 is a powerful and flexible 8-channel PA amplifier designed for demanding multi-zone and multi-speaker applications in professional installations like stage use, discos, and complex PA systems. With a total power rating of 1,280 W RMS (1,800 W peak), this amplifier provides reliable, high-quality audio distribution across eight separate channels, all housed in a compact 3U rack unit.
Â
Â
8 Independent Channels: Provides ultimate control and flexibility for multi-speaker setups, allowing you to power up to eight separate zones or speaker pairs.
High Power Output: Delivers 8 x 160 W RMS at 4 $\Omega$ or 8 x 100 W RMS at 8 ohms per channel.
Bridged Operation: For applications requiring more power, channels can be bridged in pairs to provide 4 x 320 W RMS at 8 ohms.
Integrated Filtering: Features a switchable high-pass filter (HPF) and low-pass filter (LPF) for each channel, allowing you to tailor the frequency output for different speakers (e.g., separating subwoofers and satellites).
Balanced Inputs: Equipped with 8 x 3-pole balanced XLR inputs for professional signal connection.

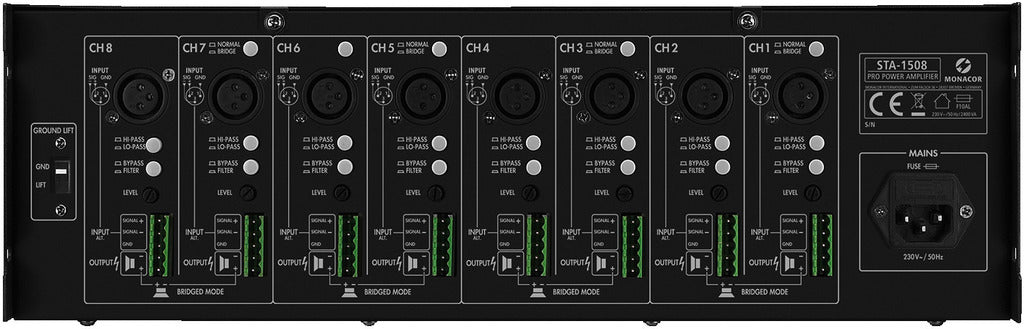

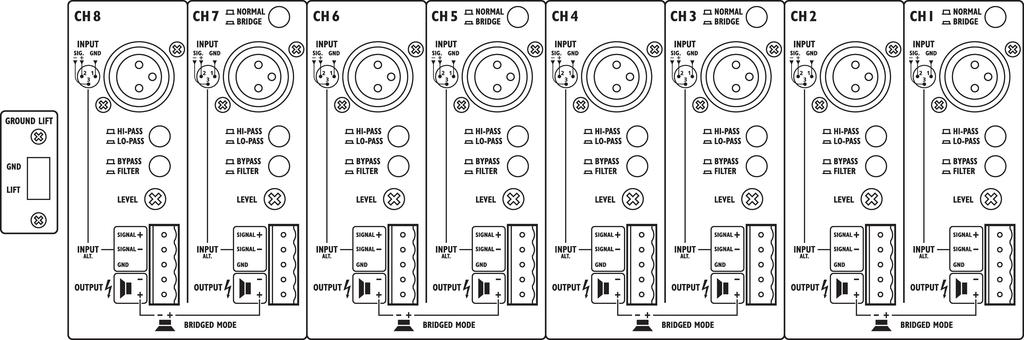

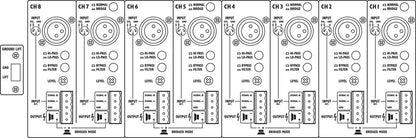

Tamper-Resistant Control: Individual level adjustments for each channel are located on the rear panel and are protected against unauthorized or accidental changes, ensuring consistent sound performance.
Built-in Safety: Includes a comprehensive protection circuit against short circuits, overheating, and DC voltage overlay at the outputs, plus a soft-start function and speaker switch-on delay.
Integrated Limiter: Protects your speakers and the amplifier from damage due to signal peaks and clipping.
Visual Monitoring: An LED VU meter and a dedicated clip LED for each channel provide real-time status and overload indication.
Â
Â
From powering a mix of four subwoofers and four satellite speakers to driving multiple zones in a venue, the STA-1508's multi-channel design and bridging capability make it an extremely adaptable core component for any fixed or portable PA system. A ground lift switch is also included to easily eliminate unwanted hum caused by ground loops.
The Monacor STA-1508 is your high-performance, multi-channel solution for professional sound reinforcement.
| STA-1508 | |
|---|---|
| Peak output power | 1,800 W |
| Power rating | 1,280 W |
| Power rating at 4 Ω | 8 x 160 W |
| Power rating at 8 Ω | 8 x 100 W |
| Power rating with 8 Ω bridged operation | 4 x 320 W |
| Channels | 8 |
| Inputs | 0.7 V/20 kΩ |
| Frequency range | 12-20,000 Hz |
| Crossover network | yes |
| Crossover frequency | 240 Hz |
| Integrated limiter | yes |
| S/N ratio | > 80 dB |
| Crosstalk attenuation | > 60 dB |
| THD | < 0.1% |
| Power supply | ˜ 230 V/50 Hz/2,400 VA |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 2,400 VA |
| Admiss. ambient temp. | 0-40 °C |
| Width | 482 mm |
| Height | 132 mm |
| Depth | 310 mm |
| Rack units, RU | 3 |
| Weight | 16.6 kg |
| Connections | 8 x 3-pole XLR, bal.
8 x screw terminal |
| Packaging dimensions (W x H x L) | 0.52 x 0.23 x 0.43 m |
| Gross weight | 17.92 kg |
| Net weight | 16.68 kg |
