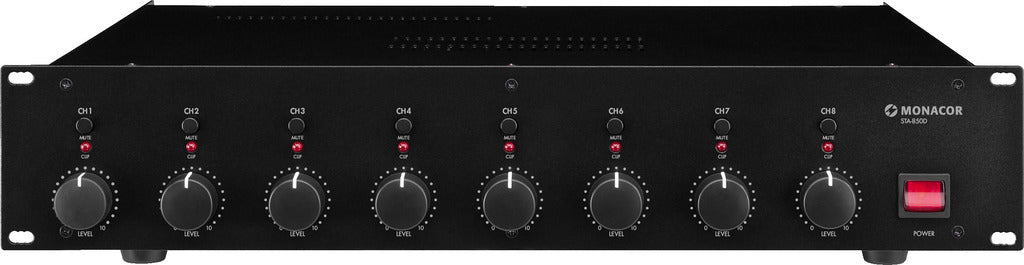

MONACOR STA-850D 8 Channel Class D Amplifier

MONACOR STA-850D 8 Channel Class D Amplifier

RRP

£637.81

inc VAT

£637.81
Sold out
Tax included. Shipping calculated at checkout.
🔊 Monacor STA-850D: 8-Channel Digital Power Amplifier   The Monacor STA-850D is a professional, high-performance 8-channel Class D power amplifier designed for versatile multi-zone Public Address (PA) and installation applications....
Vendor: MONACOR
SKU: STA-850D

Product Specification

Access Manufacturer's website for detailed product specifications and documents.

Want to see trade pricing? Register for a trade account!

You can apply for a trade account with us by either;

1. Registering at our B2B Trade Portal - Our dedicated online trade portal gives you a seamless buying experience. See trade pricing, view stock availability, place orders and check your order status.

2. Completing a trade application form and returning via email to sales@epicaudio.co.uk.

Project Enquiry

We specialise in commercial projects offering a comprehensive commercial project service, collaborating with you to design, supply, and install solutions that meet your specifications, timeline, and budget.

Get in touch today to discuss your requirements!

View full product details

🔊 Monacor STA-850D: 8-Channel Digital Power Amplifier



The Monacor STA-850D is a professional, high-performance 8-channel Class D power amplifier designed for versatile multi-zone Public Address (PA) and installation applications. Experience clean, reliable power and efficient operation in a compact, rack-mountable design.



✨ Key Features



  • 8 Independent Channels: Provides flexible power distribution for multi-zone audio systems.

  • Highly Efficient Class D Concept: Delivers robust power with low heat generation, ensuring energy efficiency.

  • Silent Operation: Features a fanless cooling concept, making it ideal for noise-sensitive environments like boardrooms, classrooms, or quiet retail spaces.

  • Bridged Operation Capability: Channels can be bridged for a higher output: up to 4 x 100 W RMS at $8 \Omega$.

  • Flexible Power Output:

    • 8 x 50 W RMS at 4 ohm

    • 8 x 30 W RMS at 8 ohm

  • Individual Control: Equipped with 8 level controls and a mute function for each channel, offering precise system adjustment.

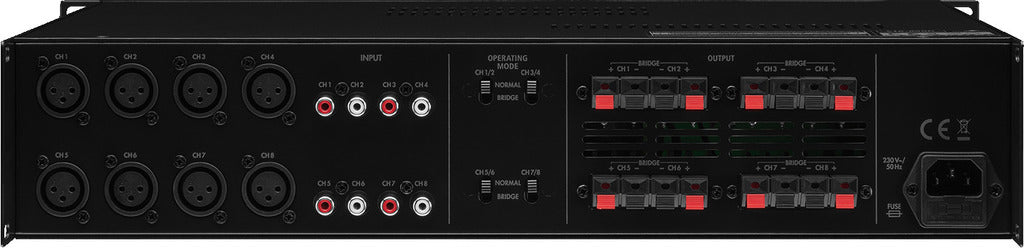

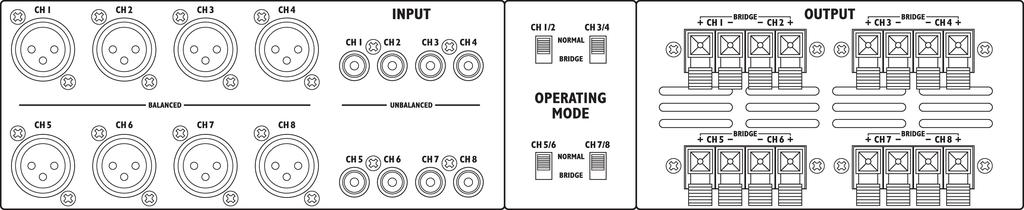

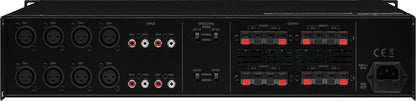

  • Comprehensive Connectivity: Includes 8 x balanced XLR and 8 x RCA inputs for seamless connection to various audio sources (mixing desks, preamplifiers, line sources).

  • Safety Features: Protected against short circuiting, with an LED indicator on each channel to signal overload (clip).

  • Rack-Mountable Design: Housed in a durable 2-rack unit (2 RU) enclosure for easy professional installation.

Technical specifications STA-850D

STA-850D
Peak output power 600 W
Power rating 400 W
Power rating at 4 Ω 8 x 50 W
Power rating at 8 Ω 8 x 30 W
Power rating with 8 Ω bridged operation 4 x 100 W
Channels 8
Inputs 1 V/20 kΩ unbal.

550 mV/20 kΩ bal.
Frequency range 10-20,000 Hz
Crosstalk attenuation > 45 dB
Power supply ˜ 230 V/50 Hz/600 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 600 VA
Admiss. ambient temp. 0-40 °C
Width 483 mm
Height 90 mm
Depth 330 mm
Rack units, RU 2
Weight 10.5 kg
Connections 8 x XLR, bal.

8 x RCA

8 x spring-load. speaker term. L/R
Packaging dimensions (W x H x L) 0.41 x 0.16 x 0.56 m
Gross weight 13.22 kg
Net weight 10.68 kg
