Seamlessly bridge the gap between consumer and professional audio gear with the Monacor TCB-22. This versatile, 2-channel audio balancing transformer is an essential tool for sound technicians, DJs, and home studio enthusiasts looking to eliminate noise and ensure clean signal transmission.
Â
Â
Passive Signal Conversion: Convert unbalanced audio signals into balanced signals (and vice-versa) without the need for a power supply (passive operation). This is achieved via a high-quality, doubled audio transformer built into the device, ensuring reliable galvanic isolation to prevent ground loop hum.
Dual-Direction Operation:
Unbalanced to Balanced: Convert standard RCA/3.5 mm jack signals to professional 3-pole XLR outputs, perfect for running long cables with minimal interference.
Balanced to Unbalanced: Use in reverse to convert balanced XLR signals into unbalanced RCA or 3.5 mm stereo jack outputs (requires an optional XLR/XLR adapter like the NA-3FF).
Lossless Stereo/Mono Conversion: A built-in 2-pole DIP switch allows you to losslessly sum two stereo input signals into a single mono output, offering flexible signal routing options without coupling via resistors.

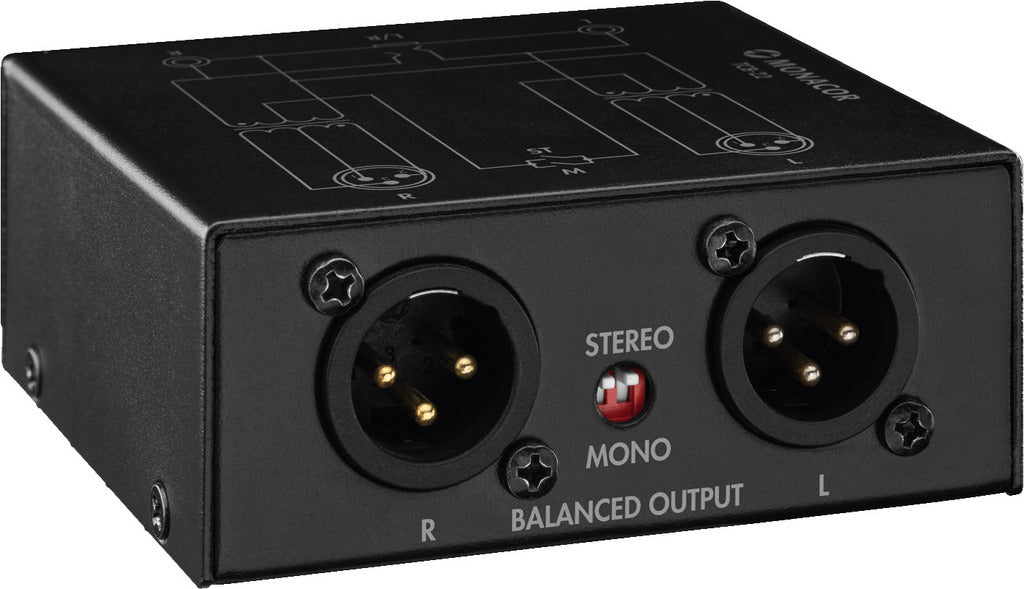

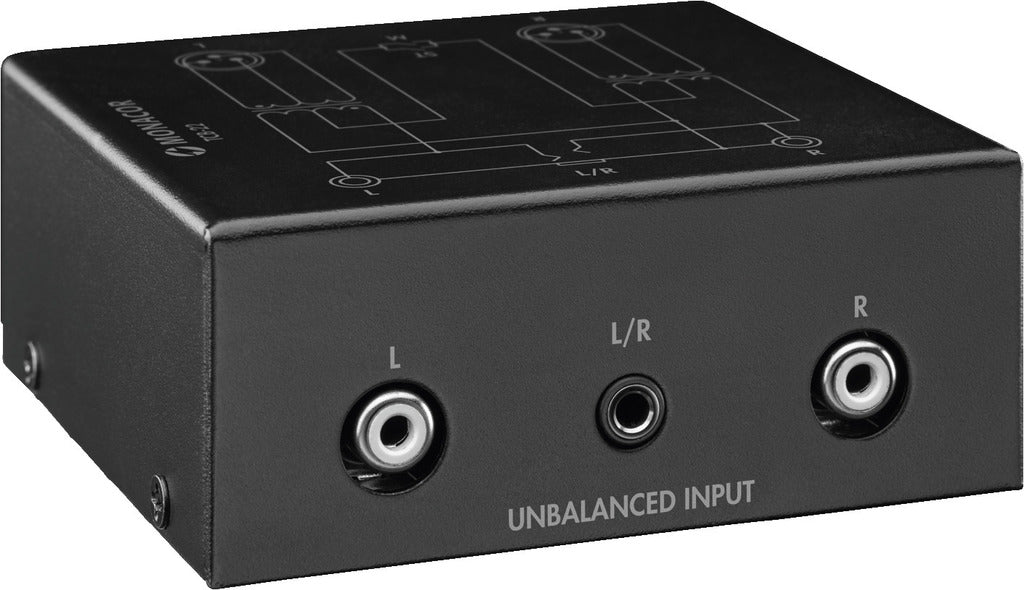

Universal Connectivity: Features common unbalanced inputs (2 x RCA and 1 x 3.5 mm stereo jack) and professional balanced outputs (2 x 3-pole XLR).
Road-Ready Build: Housed in a compact, durable black metal casing, the TCB-22 is built to withstand the demands of live use and installation.
| TCB-22 | |
|---|---|
| Description | 2-channel audio balancing transformer |
| Frequency range | 6-25,000 Hz |
| Input signal | 15 V max. |
| Input impedance | 5.3 kΩ/1 kHz |
| Output impedance | 5.4 kΩ/1 kHz |
| Transmission ratio | 1:1 |
| Admiss. ambient temp. | -20-+50 °C |
| Dimensions | 88 x 36 x 83 mm |
| Weight | 318 g |
| Inputs | 2 x RCA,
1 x 3.5 mm stereo jack, unbal. |
| Outputs | 2 x 3-pole XLR, bal. |
