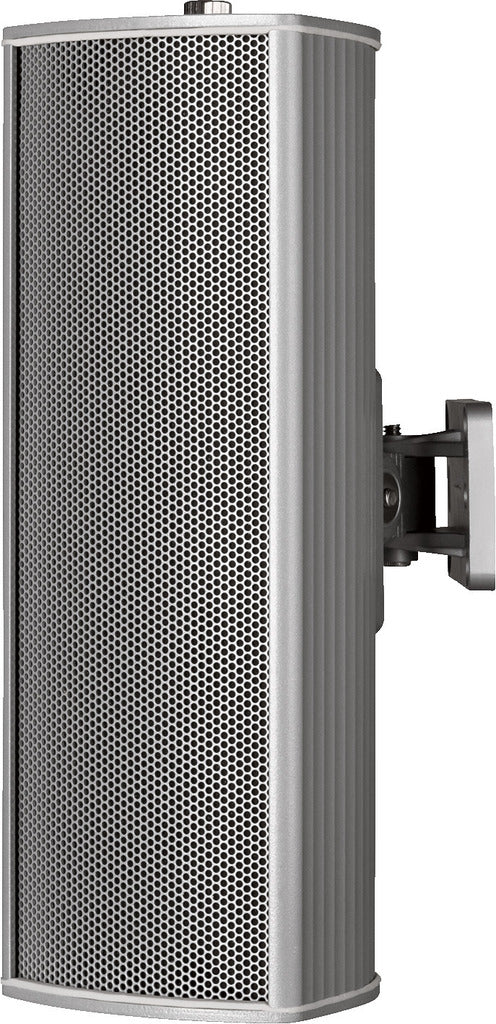

The MONACOR TS-C10-300/T is a professional-grade, weatherproof PA column speaker, expertly engineered for demanding public address and voice alarm applications, especially in outdoor or harsh environments.
Certified to EN 54-24 standards, this speaker is built for maximum reliability in safety-critical systems.
Â
Â
EN 54-24 Certified: Compliant with the European standard for voice alarm systems, ensuring suitability for life safety applications.
Extreme Weather Protection: Featuring a robust, plastic-coated aluminum cabinet and a front protective grille, the speaker boasts an IP66 rating, making it dust-tight and protected against powerful water jets.
100 V Line Technology: Designed for 100 V public address systems, offering flexible installation over long distances.
Multiple Power Taps: Provides four power adjustments for precise system tuning: 10 W, 6 W, 3 W, and 1.5 W.
High Reliability Components:
Equipped with two 7.7 cm (3") waterproof full-range speaker drivers.
Connection via ceramic screw terminals with a thermal fuse inside the cabinet for enhanced safety and compliance with BS 5839, Part 8.
Features 2 x PG9 cable glands for secure cable entry.
Flexible Mounting: Supplied with a sturdy wall bracket for pivoting and tilting adjustments, allowing for optimal sound coverage.
| TS-C10-300/T | |
|---|---|
| Active/passive | passive |
| Transmission technology | 100 V |
| Total power rating | 10 W |
| Power rating (RMS) | 10/6/3/1.5 W |
| Frequency range | 200-18,000 Hz |
| Full range speaker | 2 x 77 mm |
| Number of speakers | 2 |
| Speaker size | 7.5 cm (3") |
| SPL | 95 dB/W/m |
| Max. rated SPL | 104 dB |
| Radiation angle/beam angle | H: 149°/V: 66° |
| Radiation angle, horizontal | 149° |
| Radiation angle, vertical | 66° |
| Housing material | aluminium |
| Colour | white aluminium, RAL 9006 |
| Mounting device | wall bracket |
| Protection class | IP66 |
| Admiss. ambient temp. | -20 °C to +90 °C |
| Dimensions | 100 x 296 x 92 mm |
| Width | 100 mm |
| Height | 296 mm |
| Depth | 92 mm |
| Weight | 1.6 kg |
| Inputs | ceramic screw terminals |
| Packaging dimensions (W x H x L) | 0.175 x 0.19 x 0.37 m |
| Gross weight | 2.06 kg |
| Net weight | 1.758 kg |
