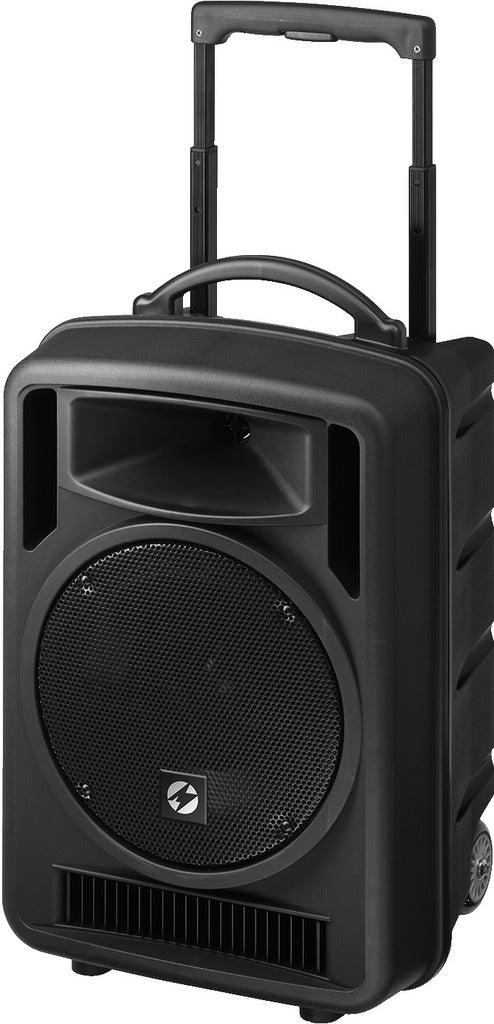

🎤 MONACOR TXA-1020 Portable High-Power PA System
The MONACOR TXA-1020 is a professional-grade, all-in-one portable amplifier system designed for lectures, sales events, classes, public speaking, and any mobile application demanding high-quality, reliable sound.
Â
Â
Powerful Class D Amplifier: Delivers an efficient 120 W RMS (170 W max.) output through a high-performance 2-way speaker system featuring a 25 cm (10") bass speaker for rich, full-range sound.
Dual-Channel UHF Wireless Receiver: Comes equipped with an integrated, adjustable 2-channel multifrequency receiver unit with UHF PLL technology, offering 2 x 16 selectable, license-free frequencies (863.1-864.9 MHz) for interference-free wireless microphone operation (microphones optional).
Bluetooth Connectivity: Stream audio wirelessly from your smartphone, tablet, or laptop for music playback or presentations.
Built-in Rechargeable Battery: Operation via mains connection or two built-in rechargeable lead gel batteries (2 x 12 V/4.5 Ah), providing an operating time of up to 4 hours. Features automatic charging and deep discharge protection.
Maximum Portability: Designed like a trolley, the system includes an extractable telescopic handle and 2 castors for easy transport. It also features a stand sleeve for flexible setup.
Â
Â

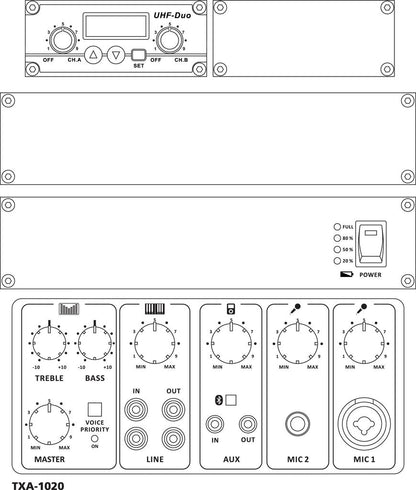

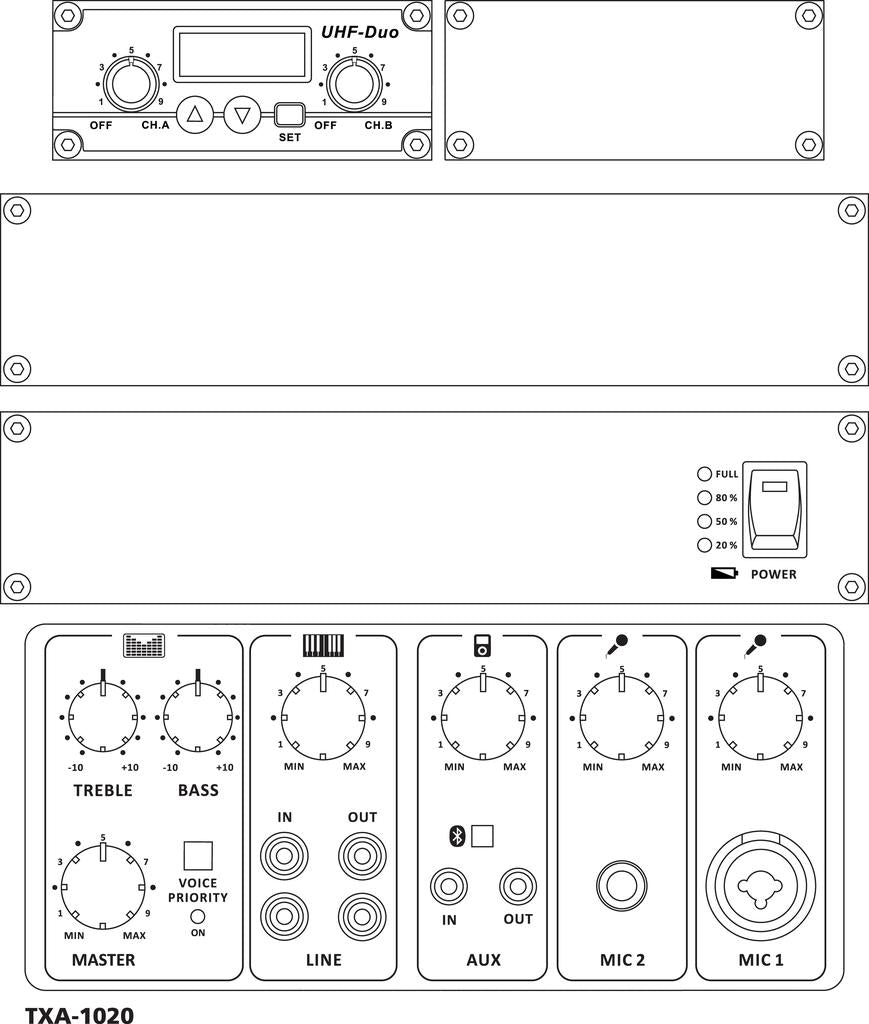

The TXA-1020 offers a comprehensive range of inputs and outputs to connect all your devices:
Inputs: 1 x comb. jack (XLR/6.3 mm) for microphone, 1 x 6.3 mm jack for microphone, 1 x stereo line input (RCA), and 1 x aux input (3.5 mm jack). Each input is individually adjustable.
Outputs: 1 x stereo line output (RCA) and 1 x aux output (3.5 mm jack).
Clarity Controls: Includes a common master control, 2-way tone control (bass/treble), and a switchable microphone priority circuit to automatically lower music volume when speaking.
Get the MONACOR TXA-1020 for a truly portable, high-power PA solution that combines wireless flexibility with robust performance.
| TXA-1020 | |
|---|---|
| Rated power (PRMS) | 120 W |
| Peak output power | 170 W |
| Frequency range | 20-20,000 Hz |
| Carrier frequency | 863.1-864.9 MHz |
| Operating range | ≈ 30 m |
| Inputs | 6Â mV (mic),
300 mV (line, aux) |
| Link | optional (TXA-1020MT) |
| Max. SPL | 113 dB |
| Equalizer, bass | ±10 dB/100 Hz |
| Equalizer, treble | ±10 dB/10 kHz |
| Power supply | ˜ 230 V/50 Hz/170 VA,
rech. battery: 2 x 12 V/4.5 Ah |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 360 x 580 x 320Â mm |
| Weight | 17.8 kg |
| Connections | 1 x XLR/6.3 mm jack (mic),
1 x 6.3 mm jack (mic), 1 x RCA L/R (line in), 1 x 3.5 mm jack (line in), 1 x RCA L/R (line out), 1 x 3.5 mm jack (line out) |
