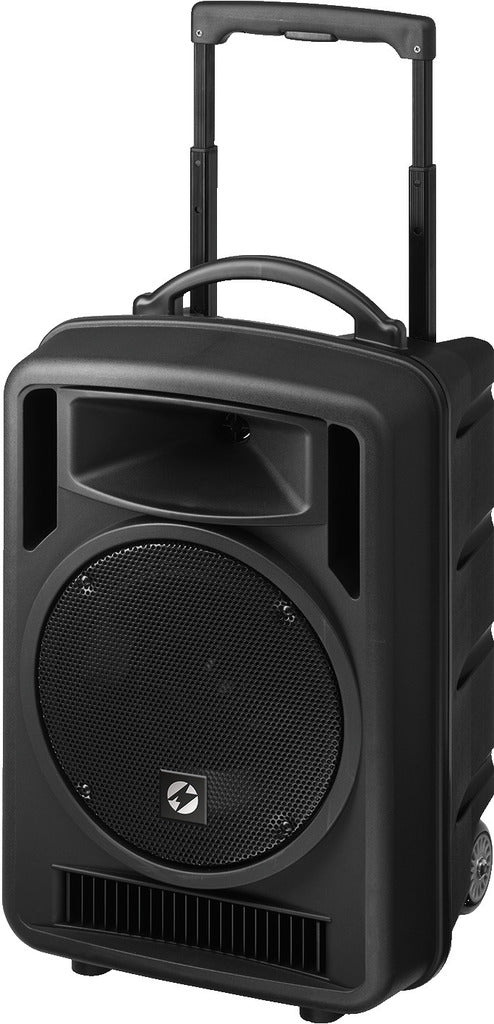

The Monacor TXA-1022CD is the ultimate all-in-one portable PA system, delivering powerful, high-fidelity sound for any mobile application—from sales events and lectures to fitness classes and outdoor gatherings. With its robust features and trolley design, professional audio has never been so convenient.
Â
Â
High-Power Output: Delivers a robust 170 W MAX / 120 W RMS output from an efficient Class D amplifier, powered by a powerful 2-way speaker system with a 10" (25 cm) bass speaker.
Integrated Media Player: Features a slot-in CD player with anti-shock and MP3 reproduction, Bluetooth receiver for wireless streaming, and USB/SD card ports for MP3 playback. A remote control is included for media.
Dual Wireless Ready: Integrated 2-channel multifrequency receiver unit with UHF PLL technology, offering 2 x 16 selectable frequencies (863.1-864.9 MHz) for optional wireless microphones (e.g., TXA-800HT/HSE).

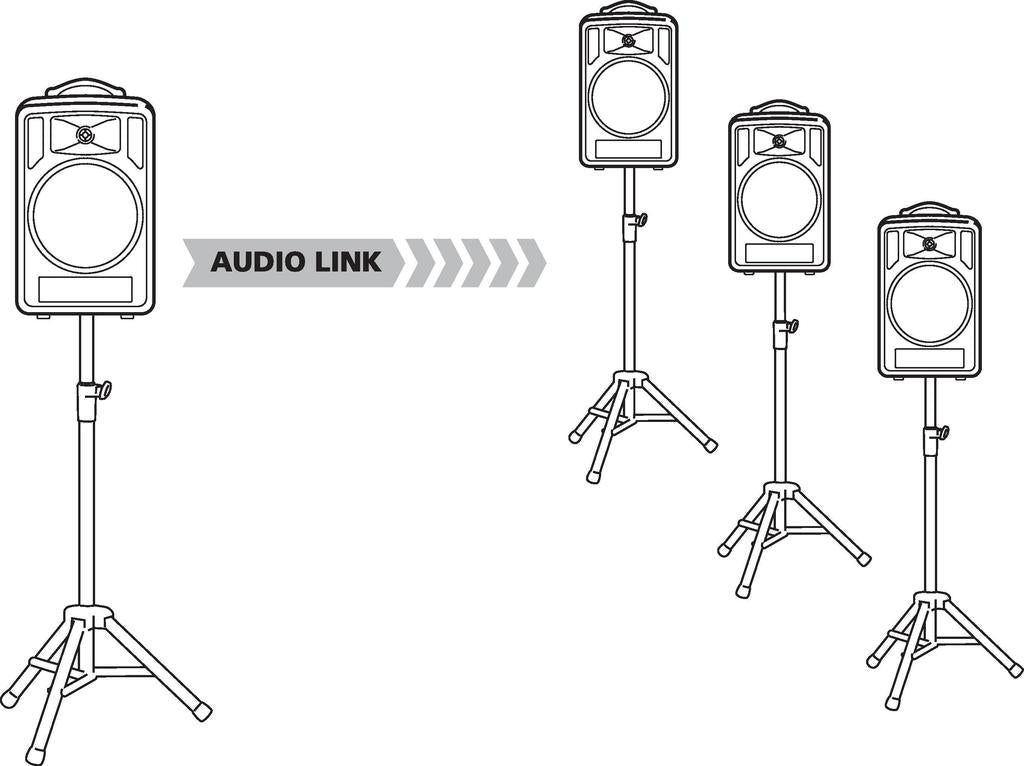

Audio Link Function: Built-in wireless transmitter allows you to seamlessly transmit audio signals to one or more other compatible TXA-1020 series systems, ideal for uniform sound coverage in large venues.
True Portability: Designed like a trolley with an extractable telescopic handle and two castors, making transport effortless. Operates via mains connection or the built-in rechargeable lead gel battery (up to 4 hours operating time).
Â
Â

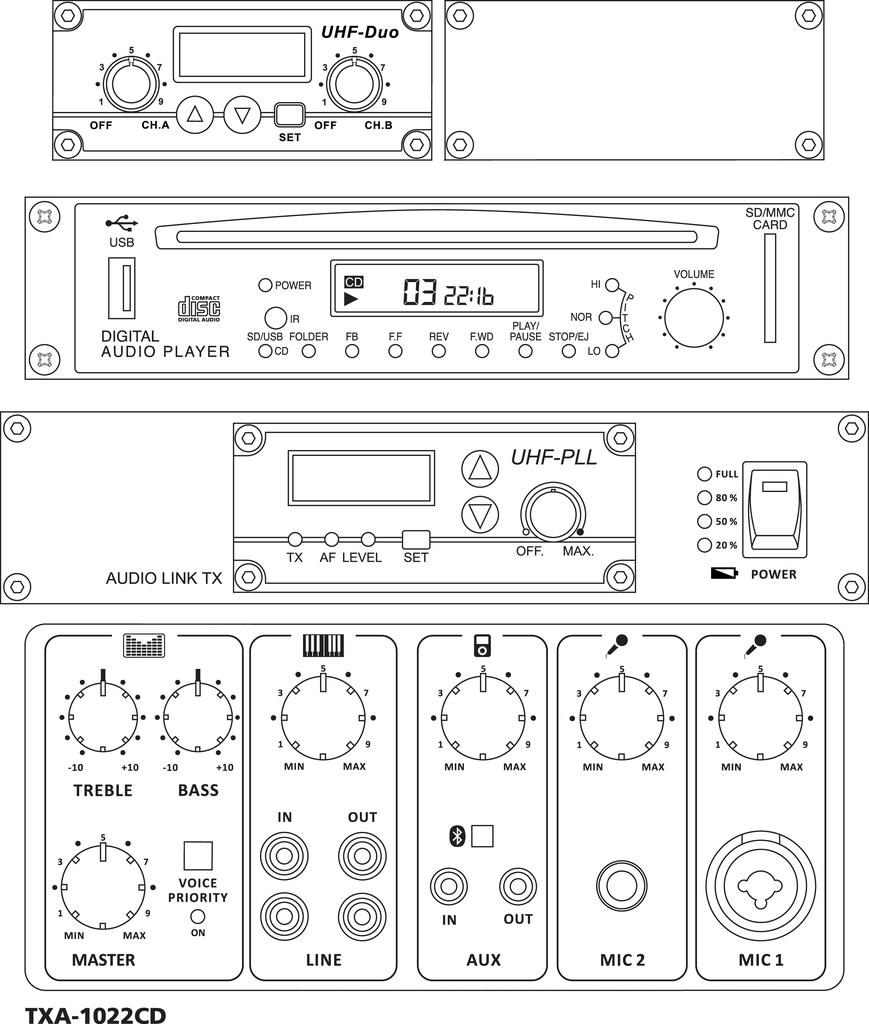

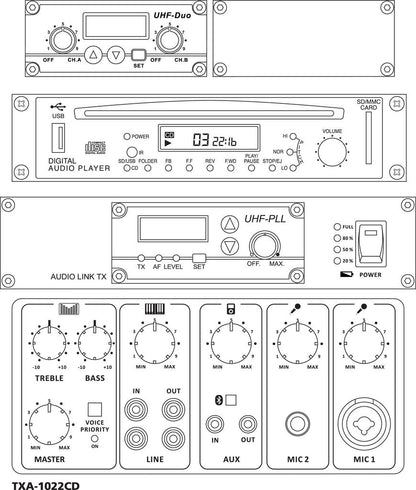

The TXA-1022CD provides comprehensive connections for all your audio sources:
Inputs:
1 x Microphone input via combo jack (XLR/6.3 mm)
1 x Microphone input (6.3 mm jack)
1 x Stereo line input (RCA)
1 x Aux input (3.5 mm jack)
Outputs:
1 x Stereo line output (RCA)
1 x Aux output (3.5 mm jack)
Control: Common master control with 2-way tone control (Bass/Treble) and a switchable microphone priority circuit (ducker function).
Experience the freedom and power of professional, fully-featured, and highly mobile PA sound.
| TXA-1022CD | |
|---|---|
| Rated power (PRMS) | 120 W |
| Peak output power | 170 W |
| Frequency range | 20-20,000 Hz |
| Carrier frequency | 863.1-864.9 MHz |
| Operating range | ≈ 30 m |
| Inputs | 6 mV (mic),
300 mV (line, aux) |
| Link | wireless |
| Max. SPL | 113 dB |
| Equalizer, bass | ±10 dB/100 Hz |
| Equalizer, treble | ±10 dB/10 kHz |
| Power supply | ˜ 230 V/50 Hz/170 VA,
rech. battery: 2 x 12 V/4.5 Ah |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 360 x 580 x 320Â mm |
| Weight | 18.2 kg |
| Connections | 1 x XLR/6.3 mm jack (mic),
1 x 6.3 mm jack (mic), 1 x RCA L/R (line in), 1 x 3.5 mm jack (line in), 1 x RCA L/R (line out), 1 x 3.5 mm jack (line out) |
