RRP
Regular price £118.80inc VAT
Access Manufacturer's website for detailed product specifications and documents.
You can apply for a trade account with us by either;
1. Registering at our B2B Trade Portal - Our dedicated online trade portal gives you a seamless buying experience. See trade pricing, view stock availability, place orders and check your order status.
2. Completing a trade application form and returning via email to sales@epicaudio.co.uk.
We specialise in commercial projects offering a comprehensive commercial project service, collaborating with you to design, supply, and install solutions that meet your specifications, timeline, and budget.
Â

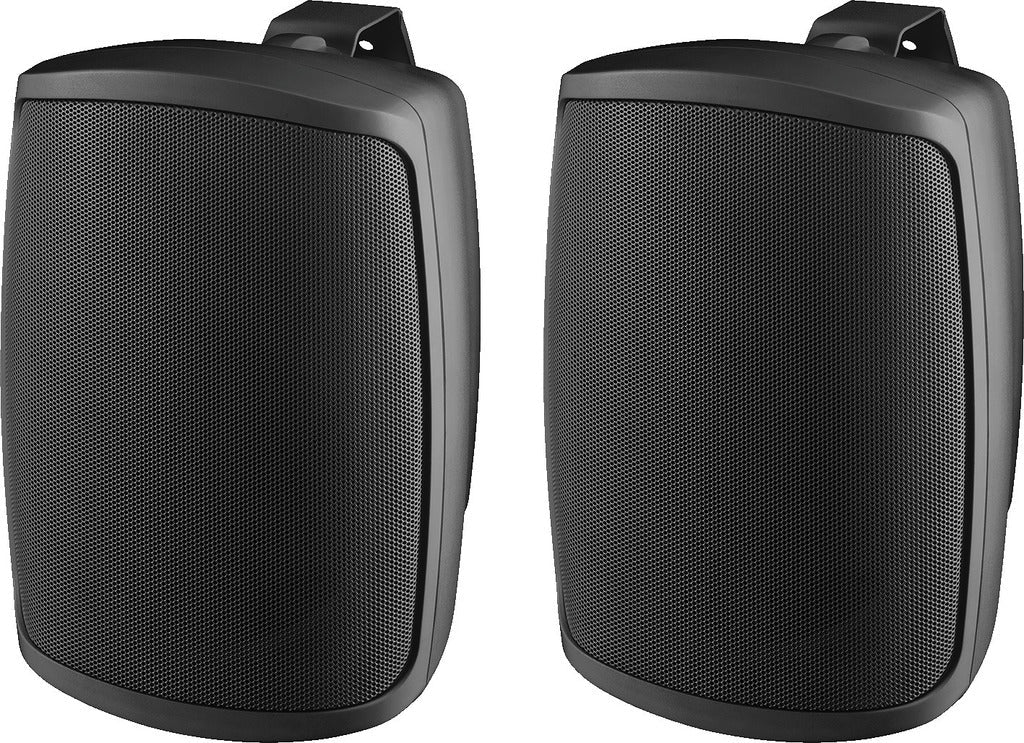

The Monacor WALL-04T/SW is a high-quality, weather-resistant 2-way PA wall speaker designed for superior sound reproduction in both indoor and outdoor public address (PA) systems. Delivering excellent sound quality and high speech intelligibility, this speaker is perfect for background music and announcements in various commercial and domestic environments.
Â
Â
Dual-Operation Flexibility: Easily switch between 100 V line public address systems (with 4 power taps: 16 W, 8 W, 4 W, 2 W) and standard 8 ohms low-impedance operation (30 W RMS).
High-Fidelity 2-Way System: Features a 10 cm (4") bass-midrange speaker and a 12 mm 1/2" dome tweeter for clear highs and well-defined mid-lows across a wide frequency range (90–20,000 Hz).
Weatherproof & Durable: Housed in a black plastic cabinet with an IP65 protection class rating, making it suitable for protected outdoor areas and high-humidity indoor locations.
Optimal Sound Placement: Supplied with a sturdy mounting bracket that allows for convenient pivoting and tilting, ensuring you can direct sound exactly where it's needed.
Secure Installation: Includes a connecting terminal with a protective cover for reliable and safe wiring.
The WALL-04T/SW offers the flexibility and robust construction required for professional background audio and speech applications, whether you're setting up a sound system for a shop, restaurant, office, or patio.
| WALL-04T/SW | |
|---|---|
| Active/passive | passive |
| Transmission technology | 100 V or low-impedance |
| Total power rating | 60 W |
| Power rating (RMS) | 16/8/4/2 W (100 V) 30 W (8 Ω) |
| Impedance | 8 Ω |
| Frequency range | 90-20,000 Hz |
| System | 2-way |
| Bass speaker | 10 cm (4") bass-midrange speaker |
| Tweeter | 12 mm (½") dome tweeter |
| Number of speakers | 2 |
| Speaker size | 10 cm (4") |
| SPL | 87 dB/W/m |
| Max. rated SPL | 100 dB |
| Radiation angle/beam angle | H: 120°/V: 100° |
| Radiation angle, horizontal | 120° |
| Radiation angle, vertical | 100° |
| Housing material | plastic |
| Colour | black |
| Mounting device | mounting bracket |
| Protection class | IP65 |
| Admiss. ambient temp. | 0-40 °C |

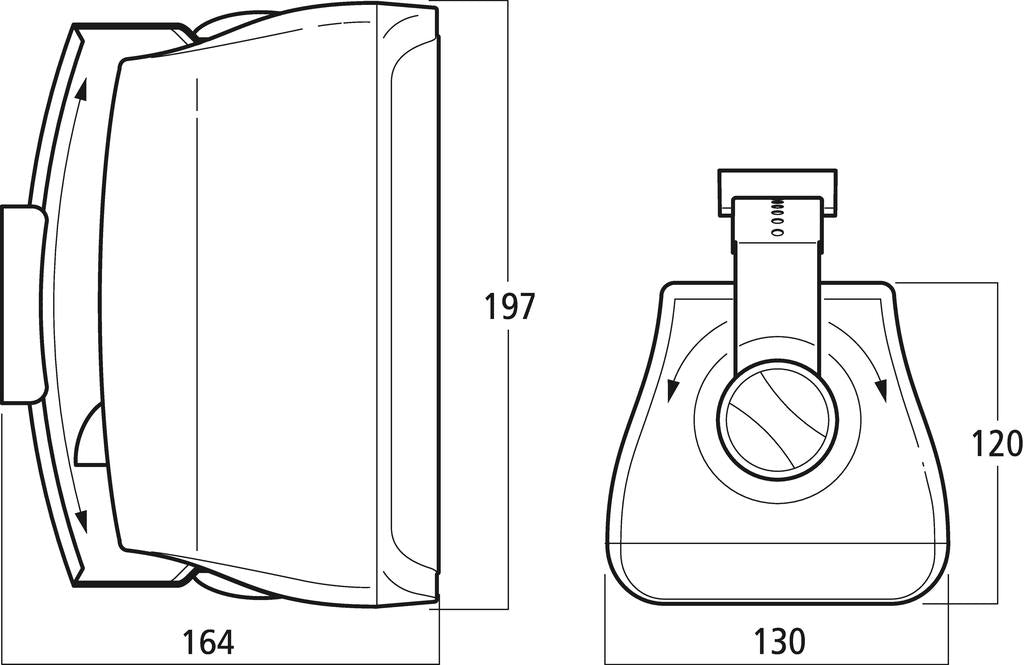

| Dimensions | 130 x 197 x 164 mm (with bracket) |
| Width | 130 mm |
| Height | 197 mm |
| Depth | 164 mm |
| Weight | 1.8 kg |
| Inputs | spring-load. speaker term. |
| Other features | for pivoting and tilting |
| Packaging dimensions (W x H x L) | 0.155 x 0.22 x 0.335 m |
| Gross weight | 3.82 kg |
| Net weight | 3.51 kg |
