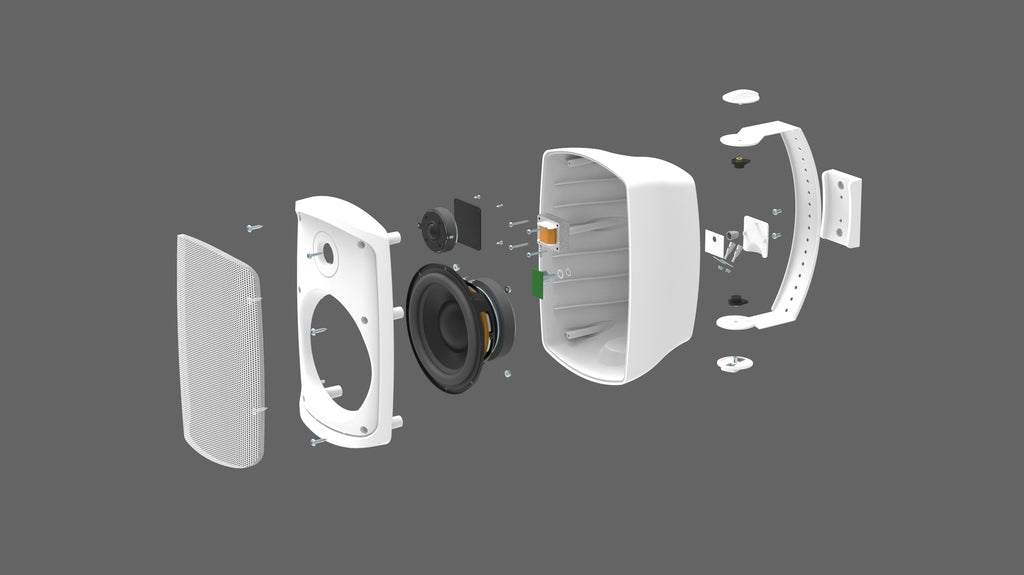

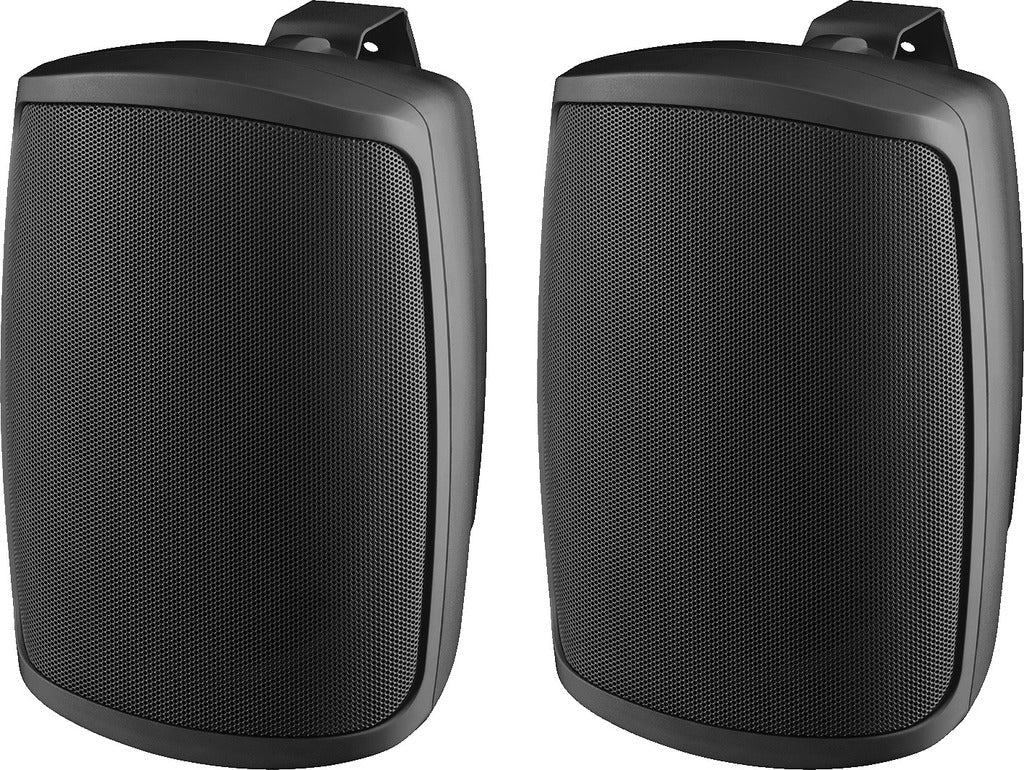

The MONACOR WALL-05T/SW is a pair of compact, 2-way PA wall speakers known for high sound quality and speech intelligibility. These speakers are highly versatile, supporting both 100 V line transmission and standard low-impedance operation, and feature a robust, weather-resistant design.
Dual Transmission Technology: Can be operated in both 100 V line systems and standard 8 Ω low-impedance systems.
100 V Operation: Offers selectable power taps (16/8/4/2 W).
Low-Impedance Operation: Rated at 40 W (RMS) at 8 Ω.
Acoustic Design: A 2-way system featuring a 13 cm (5") bass-midrange speaker and a 12 mm (½") dome tweeter.
High Performance: Delivers a wide frequency range of 80–20,000 Hz with a maximum rated SPL of 104 dB.
Outdoor Capability: Features a robust plastic cabinet in white with an IP65 protection class, making it suitable for protected outdoor areas and moisture-prone environments.
Flexible Mounting: Supplied with a mounting bracket that allows the speaker to be pivoted and tilted for optimal sound direction.
Connectivity: Uses a connecting terminal with a protective cover and spring-loaded speaker terminals.
| Specification | Value |
| Type | 2-Way PA Wall Speaker System (Pair) |
| Transmission Technology | 100 V or Low-Impedance (8 Ω) |
| Power Rating (100 V) | 16/8/4/2 W (Selectable Taps) |
| Power Rating (8 Ω) | 40 W (RMS) |
| Total Power Rating | 80 W |
| Components | 5" Bass-Midrange, ½" Dome Tweeter |
| Frequency Range | 80–20,000 Hz |
| Max. Rated SPL | 104 dB |
| Protection Class | IP65 |
| Radiation Angle (H/V) | 110° / 90° |
| Housing Material | Plastic |

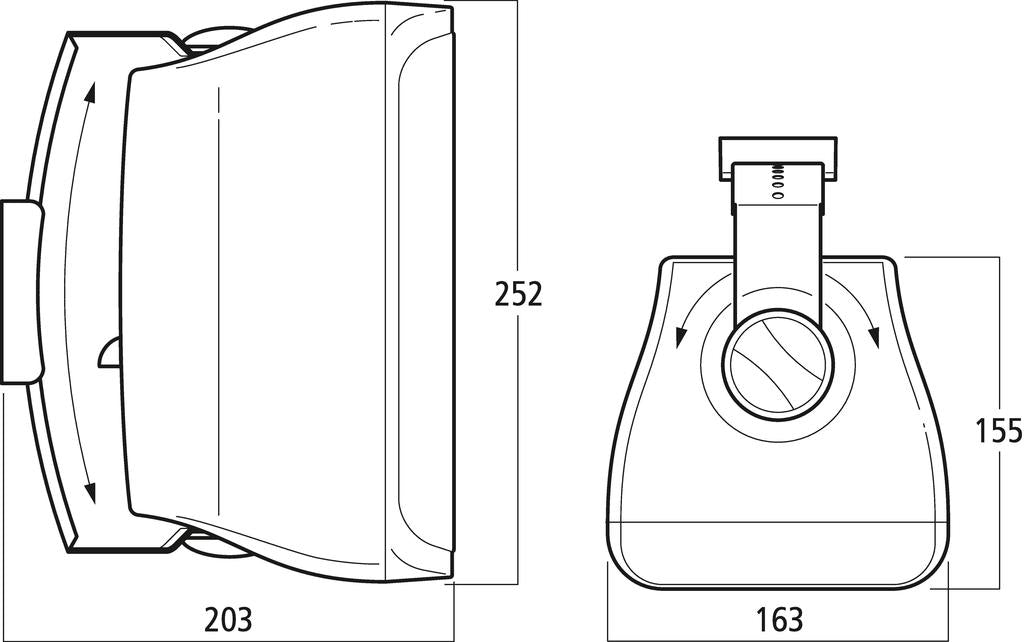

| Dimensions (W x H x D) | 163 x 252 x 203 mm (with bracket) |
| Weight | 2.6 kg (per speaker) |
